mpn:
brand:
manufacturer:
MPN:
Weight:
0.0025
Weight:
0.0025 LB
Price:
3.98
qty:
3682
simpleSku:
TIyODg:::G2R-1A-T-AC120
sku:
TIyODg::5E:G2R-1A-T-AC120@y0
condition:
11
seller:
i-components
amzMan:
omron
Dimensions:
[2.0, 2.0, 1.0]
Attributes
| Key | Value |
|---|---|
| AC Contact Rating - Relay | 10A @ 240V |
| Alternate Mfr Part Number | G2R1ATAC120 |
| Alternate Parts | G2R1ATAC12 |
| Base Product Number | G2R |
| Body Depth | 1.16 in |
| Body Depth - Relay | 0.46 in |
| Body Height | 1.73 in |
| Body Height - Relay | 1.16 in |
| Body Width | 0.52 in |
| Body Width - Relay | 1.2 in |
| Category | Relays |
| Coil Current | 7.5 mA, 7.5mA |
| Coil Insulation | - |
| Coil Resistance | 6.5 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 120VAC, 120 VAC ; 110/115/120/125 VAC |
| Coil Volts | 120V AC |
| Contact Current Rating | 10 A |
| Contact Form | SPST-NO (1 Form A), SPST-NO |
| Contact Form - Relay | SPST-NO |
| Contact Material | Silver Alloy |
| Contact Rating | 10A @ 250VAC/30VDC |
| Contact Rating (Current) | 10A, 10 A |
| Contact Voltage Rating | 300 VAC |
| Control Voltage | 120 |
| Current Rating | 10 A |
| DC Contact Rating - Relay | 10A @ 28V |

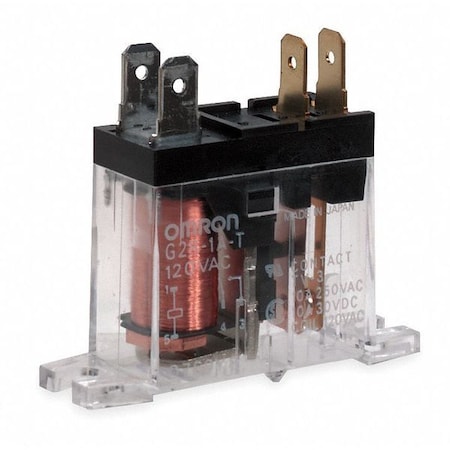

| Description | RELAY GEN PURPOSE SPST 10A 120V |
| Detailed Description | General Purpose Relay SPST-NO (1 Form A) 120VAC Coil Chassis Mount |
| Digi-Key Part Number | Z5901-ND |
| Electrical Connection | Quick-Connect |
| Features | - |
| Flat Pin Width | 0.187 in |
| Function | General Purpose |
| HP @ 240V | 1/2 hp |
| Item | Flange Mount Relay |
| Item - Relay | Flange Mount Relay |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Manufacturer | Omron Automation and Safety |
| Manufacturer Part Number | G2R-1A-T-AC120 |
| Manufacturer Product Number | G2R-1A-T-AC120 |
| Manufacturer Standard Lead Time | 26 Weeks |
| Mfr | Omron Automation and Safety |
| Mounting - Relay | Top Flange |
| Mounting Hole Diameter | 0.05 in |
| Mounting Type | Panel Mount, Chassis Mount |
| Must Operate Voltage | 96 VAC |
| Must Release Voltage | 36 VAC |
| Number of Pins - Relay | 4 |
| Operate Time | 15ms, 15 ms |
| Operating Temperature | -40, -40?C ~ 70?C |
| Overall Depth | 1.5 in |
| Overall Height - Relay | 1.49 in |
| Package | Tray |
| Packaging | Tray |
| Pins | 4 |
| Power Consumption - Relay | 0.9 VA |
| Power Rating | 2500 VA ; 300 W |
| Primary Type | Power Relays |
| Product Status | Active |
| Relay Type | Electromechanical, General Purpose |
| Release Time | 10ms, 10 ms |
| Seal Rating | Sealed - Flux Protection |
| Series | G2R Series, G2R |
| Standard Package | 1 |
| Standards | UL ; CSA ; VDE ; CE |
| Switching Voltage | 380VAC, 125VDC - Max |
| Termination | QC Tabs |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating | 380 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | i-components | G2R-1A-T-AC120 | 3.98 | 3.98 | 1 | 13082 | Omron Automation & Safety | 3.98 @ Qty: 1+ | ||
| iodParts | G2R-1A-T-AC120 | 5.04 | 103.824 | 50 | 3682 | Omron | 5.04 @ Qty: 50+ | |||
| Onlinecomponents.com | G2R1ATAC120 | 5.62 | 14.612 | 5 | 4166 | Omron | 5.62 @ Qty: 5+ | |||
| Verical | G2R-1A-T-AC120 | 9.93 | 13.902 | 2 | 25 | Omron | 9.93 @ Qty: 2+ | |||
| Mouser | 653-G2R-1ATAC120 | 10.46 | 10.46 | 1 | 156 | Omron | 10.46 @ Qty: 1+ | |||
 | sustainablesupply.com | C1209070 | 10.9 | 10.9 | 1 | In Stock | Omron | 0.04 | 10.9 @ Qty: 1+ | |
 | Digi-Key | 368736 | 11.63 | 11.63 | 1 | In Stock | Omron Automation and Safety | 11.63 @ Qty: 1+ | ||
 | Newark | 22C5448 | 12.7 | 12.7 | 1 | 1021 | OMRON INDUSTRIAL AUTOMATION | 12.7 @ Qty: 1+ | ||
| Airline Hydraulics | OMRON G2R-1A-T-AC120 | 13.13 | 13.13 | 1 | In Stock | Omron | 13.13 @ Qty: 1+ | |||
| us.rs-online.com | 70178573 | 13.25 | 13.25 | 1 | In Stock | Omron Automation | 13.25 @ Qty: 1+ | |||
 | Raptor Supplies | AE7ZPG | 14.033916 | 14.033916 | 1 | In Stock | OMRON | 14.033916 @ Qty: 1+ | ||
 | Zoro | G1166435 | 16.18 | 22.652 | 2 | In Stock | Omron | 0.04 | 16.18 @ Qty: 2+ | |
| Master Electronics | G2R1ATAC120 | 17.46 | 17.46 | 1 | 461 | Omron Automation | 17.46 @ Qty: 1+ | |||
 | ebay.com_plccenter | G2R-1A-T-AC120 | 17.7 | 17.7 | 1 | In Stock | Omron | 17.7 @ Qty: 1+ |
