mpn:
brand:
manufacturer:
MPN:
Weight:
0.03
Weight:
0.044 LB
Preferred Price:
17.48
Price:
17.48
Min Simple Price:
8.74
Absolute Min Price:
13.03
Min Price:
13.03
Dimensions:
[2.0, 2.0, 1.0]
qty:
86
simpleSku:
TIyODg:::LY2-AC12
sku:
TIyODg::B6:LY2-AC12@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
omron
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| AC Contact Rating - Relay | 10A @ 120V |
| Alternate Mfr Part Number | LY2AC12 |
| Base Product Number | LY2-AC |
| Base Type - Plug In Relay | Square |
| Body Depth | 1.42 in |
| Body Depth - Relay | 1.1 in |
| Body Height | 1.1 in |
| Body Height - Relay | 1.42 in |
| Body Width | 0.85 in |
| Body Width - Relay | 0.85 in |
| Category | Relays |
| Coil Current | 91 mA |
| Coil Insulation | - |
| Coil Resistance | 46 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VAC, 12VAC |
| Coil Volts | 12V AC |
| Contact Current Rating | 10 A |
| Contact Form | DPDT, DPDT (2 Form C) |
| Contact Form - Relay | DPDT |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 10 A |
| Contact Resistance | 50 mOhms |
| Contact Voltage Rating | 300 |
| Control Voltage | 12 |
| Current Rating | 10 A |
| DC Contact Rating - Relay | 10A @ 24V |

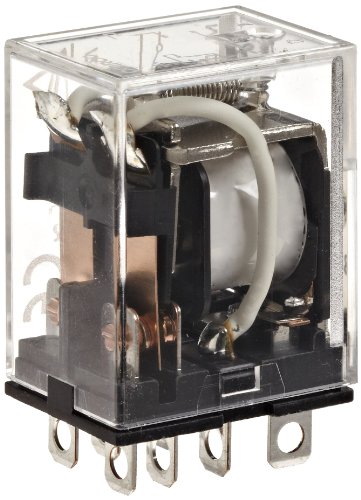

| Description | RELAY GEN PURPOSE DPDT 10A 12V |
| Detailed Description | General Purpose Relay DPDT (2 Form C) 12VAC Coil Socketable |
| Dielectric Rating | 2000 VAC |
| Digi-Key Part Number | Z11221-ND |
| Dimensions | 1.73 L x 0.89 W x 1.40 D in |
| Features | Arc Barrier Equipped, High Dielectric Strength (2000V AC), Long Dependable Service Life Assured By Ag-Alloy Contacts, - |
| Flat Pin Width | 0.197 in |
| Function | General Purpose |
| HP @ 120V | 1/6 hp |
| HP @ 240V | 1/6 hp |
| Item | General Purpose Relay |
| Item - Relay | General Purpose Relay |
| Manufacturer | Omron Automation and Safety |
| Manufacturer Product Number | LY2-AC12 |
| Manufacturer Standard Lead Time | 26 Weeks |
| Maximum Operating Temperature | 55 C |
| Mfr | Omron Automation and Safety |
| Minimum Operating Temperature | -25 C |
| Mounting - Relay | Plug In |
| Mounting Type | Socket Mount, Socketable |
| Must Operate Voltage | 9.6 VAC |
| Must Release Voltage | 3.6 VAC |
| Number of Pins | 8 |
| Number of Pins - Relay | 8 |
| Operate Time | 25 ms |
| Operating Temperature | -25?C ~ 55?C |
| Overall Depth | 1.67 in |
| Overall Height - Relay | 1.67 in |
| Package | Bulk |
| Power Consumption - Relay | 1.1 VA |
| Power Rating | 1100 VA/240 W |
| Primary Type | Power Relays |
| Product Status | Active |
| Relay Type | Electromechanical, General Purpose |
| Release Time | 25 ms |
| Seal Rating | - |
| Series | LY Series, LY |
| Standards | UL ; CSA ; SEV, CE Certified, CSA Certified, TUV Certified, UL Listed |
| Switching Voltage | 250VAC, 125VDC - Max |
| Termination | QC Tabs |
| Termination Style | Plug In |
| Voltage Rating | 250 ; 125 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | LY2AC12 | 8.74 | 15.732 | 3 | 56 | Omron | 8.74 @ Qty: 3+ | |||
| Mouser | 653-LY2-AC12 | 10.37 | 10.37 | 1 | 1 | Omron | 10.37 @ Qty: 1+ | |||
 | Digi-Key | 369466 | 13.82 | 13.82 | 1 | 23 | Omron Automation and Safety | 13.82 @ Qty: 1+ | ||
 | Newark | 89C7012 | 14.37 | 14.37 | 1 | 25 | OMRON INDUSTRIAL AUTOMATION | 14.37 @ Qty: 1+ | ||
| Airline Hydraulics | OMRON LY2-AC12 | 15.61 | 15.61 | 1 | In Stock | Omron | 15.61 @ Qty: 1+ | |||
 | Zoro | G2974596 | 16.3 | 22.82 | 2 | In Stock | Omron | 0.1 | 16.3 @ Qty: 2+ | |
 | sustainablesupply.com | C1209058 | 16.74 | 16.74 | 1 | In Stock | Omron | 0.1 | 16.74 @ Qty: 1+ | |
| us.rs-online.com | 70178805 | 17.22 | 17.22 | 1 | 1 | Omron Automation | 17.22 @ Qty: 1+ | |||
| RS Delivers | 828-7258 | 19.548 | 19.548 | 1 | 5 | Omron | 19.548 @ Qty: 1+ | |||
 | Raptor Supplies | AE7ZNR | 20.1681675 | 20.1681675 | 1 | In Stock | OMRON | 20.1681675 @ Qty: 1+ | ||
| Master Electronics | LY2AC12 | 23.61 | 23.61 | 1 | 86 | Omron Automation | 23.61 @ Qty: 1+ |
