mpn:
brand:
manufacturer:
MPN:
Weight:
0.0125
Weight:
0.0125 LB
Preferred Price:
13.57
Price:
13.57
Min Simple Price:
6.63
Absolute Min Price:
10.19
Min Price:
10.19
Dimensions:
[2.0, 2.0, 1.0]
qty:
21
simpleSku:
TIyODg:::LY2-DC12
sku:
TIyODg::54:LY2-DC12@y0
condition:
11
seller:
iodParts
amzMan:
omron
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| AC Contact Rating - Relay | 10A @ 120V, 10 A @ 120V |
| Alternate Mfr Part Number | LY2DC12 |
| Base Product Number | LY2-DC |
| Base Type - Plug In Relay | Square |
| Body Depth | 1.42 in |
| Body Depth - Relay | 1.10 in, 1.1 in |
| Body Height | 1.1 in |
| Body Height - Relay | 1.42 in |
| Body Width | 0.85 in |
| Body Width - Relay | 0.85 in |
| Brand | Omron |
| Case Style | Plug-In |
| Category | Relays |
| Coil Current | 75 mA, 75.0mA |
| Coil Insulation | - |
| Coil Resistance | 160 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC, 12VDC |
| Coil Volts | 12V DC |
| Contact Current Rating | 10 A |
| Contact Form | DPDT, DPDT (2 Form C) |
| Contact Form - Relay | DPDT |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 10A, 10 A |
| Contact Resistance | 50 mOhms |
| Contact Voltage Rating | 300 |
| Control Voltage | 12 |
| Current | 10 |
| Current Rating | 10 A |
| Current Stock | 797 |
| DC Contact Rating - Relay | 10 A @ 24V, 10A @ 24V |

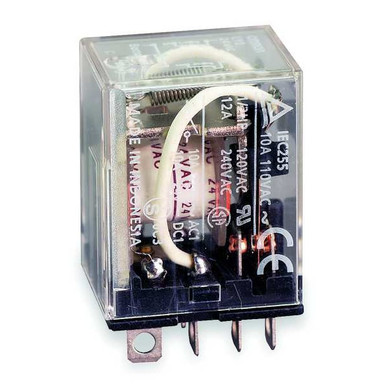

| Description | RELAY GEN PURPOSE DPDT 10A 12V |
| Detailed Description | General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable |
| Dielectric Rating | 2000 VAC |
| Digi-Key Part Number | Z790-ND |
| Dimensions | 1.73 L x 0.89 W x 1.40 D in |
| Features | Arc Barrier Equipped, High Dielectric Strength (2000V AC), Long Dependable Service Life Assured by Ag-Alloy Contacts, -, Arc Barrier Equipped, High Dielectric Strength (2000VAC), Long Dependable Service Life Assured By Ag-Alloy Contacts |
| Flat Pin Width | 0.197 in |
| Function | General Purpose |
| HP @ 120V | 1/6 hp |
| HP @ 240V | 1/6 hp |
| International Shipping | No |
| Item | General Purpose Relay |
| Item - Relay | General Purpose Relay |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Lead Time | Expected to ship in 1-2 business days, 7-10 days |
| Manufacturer | Omron, Omron Automation and Safety |
| Manufacturer Part # | LY2-DC12 |
| Manufacturer Part Number | LY2-DC12 |
| Manufacturer Product Number | LY2-DC12 |
| Manufacturer Standard Lead Time | 26 Weeks |
| Maximum Operating Temperature | 55 C |
| Mfr | Omron Automation and Safety |
| Minimum Operating Temperature | -25 C |
| Mounting - Relay | Plug In, Plug-In |
| Mounting Type | Socket Mount, Socketable |
| Mpn | LY2-DC12 |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1.2 VDC |
| Number of Pins | 8 |
| Number of Pins - Relay | 8 |
| Operate Time | 25ms, 25 ms |
| Operating Temperature | -25, -25?C ~ 55?C |
| Overall Depth | 1.67 in |
| Overall Height - Relay | 1.67 in |
| Package | Bulk |
| Packaging | Bulk Pack |
| Power Consumption - Relay | 0.9 W |
| Power Rating | 1100 VA ; 240 W |
| Primary Type | Power Relays |
| Product Status | Active |
| Push To Test | Manual |
| Relay Type | Electromechanical, General Purpose |
| Release Time | 25ms, 25 ms |
| Seal Rating | - |
| Series | LY Series, LY |
| SKU | ZO-G1393971 |
| Socket | Mfr. No. PTF08A-E |
| Socket Code - Relay | D |
| Standard Package | 50 |
| Standards | UL ; CSA ; SEV, UL, CSA, CE Marked, TUV, CE Certified, CSA Certified, IEC (TUV), LR, SEV, UL Listed, VDE Approved |
| Status Indicator | No |
| SubCategory | Electrical |
| Switching Voltage | 250VAC, 125VDC - Max |
| Termination | QC Tabs |
| Termination Style | Plug In |
| Type | DPDT |
| Voltage (V) | 12 |
| Voltage Rating | 250 ; 125 V |
| Weight (lbs) | (0.2) |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| iodParts | LY2-DC12 | 6.63 | 136.578 | 50 | 50 | Omron | 6.63 @ Qty: 50+ | |||
 | NEP Electronics | LY2-DC12 | 6.95 | 6.95 | 1 | In Stock | Omron | 6.95 @ Qty: 1+ | ||
 | Carlton Bates Company | 40312348153 | 9.13 | 9.13 | 1 | 1 | OMRON | 9.13 @ Qty: 1+ | ||
| Onlinecomponents.com | LY2DC12 | 11.37 | 20.466 | 3 | 896 | Omron | 11.37 @ Qty: 3+ | |||
| grainger.ca | WWG6C873 | 11.67096048 | 11.67096048 | 1 | In Stock | OMRON | 0.06 | 11.67096048 @ Qty: 1+ | ||
| Kele | LY2-DC12 | 11.96 | 11.96 | 1 | In Stock | Omron | 11.96 @ Qty: 1+ | |||
| AmazonTP | B005T673K0 | 12.18 | 12.18 | 1 | In Stock | 15 | Omron | 12.18 @ Qty: 1+ | ||
 | Zoro | G1393971 | 12.25 | 12.25 | 1 | 741 | Omron | 0.06 | 12.25 @ Qty: 1+ | |
 | Newark | 36K7546 | 12.68 | 12.68 | 1 | 230 | OMRON INDUSTRIAL AUTOMATION | 12.68 @ Qty: 1+ | ||
 | BD Enterprises | LY2-DC12 | 13.29 | 13.29 | 1 | 3 | Omron | 0.2 | 13.29 @ Qty: 1+ | |
 | Digi-Key | 126870 | 13.82 | 13.82 | 1 | 9950 | Omron Automation and Safety | 13.82 @ Qty: 1+ | ||
| us.rs-online.com | 70178809 | 14.4 | 14.4 | 1 | 1257 | Omron Automation | 14.4 @ Qty: 1+ | |||
| Master Electronics | LY2DC12 | 15.18 | 15.18 | 1 | 326 | Omron Automation | 15.18 @ Qty: 1+ | |||
| Airline Hydraulics | OMRON LY2-DC12 | 15.61 | 15.61 | 1 | In Stock | Omron | 15.61 @ Qty: 1+ | |||
 | MRO Supply | 6164259 | 19.7 | 27.58 | 2 | In Stock | Omron | 19.7 @ Qty: 2+ | ||
 | simsupply.com | ZO-G1393971 | 20.48 | 20.48 | 1 | 797 | Omron | 20.48 @ Qty: 1+ | ||
 | ebay.com_jeen_44 | LY2-DC12 | 21.88 | 21.88 | 1 | In Stock | Omron | 21.88 @ Qty: 1+ | ||
 | ebay.com_relayspec | LY2-DC12 | 31.5 | 31.5 | 1 | In Stock | Omron | 31.5 @ Qty: 1+ | ||
 | ebay.com_plccenter | LY2-DC12 | 110.99 | 110.99 | 1 | In Stock | Omron | 110.99 @ Qty: 1+ | ||
 | ebay.com_grainger | LY2-DC12 | 114.15 | 114.15 | 1 | In Stock | Omron | 114.15 @ Qty: 1+ | ||
 | ebay.com_finditparts | LY2-DC12 | 131.14 | 131.14 | 1 | In Stock | Omron | 131.14 @ Qty: 1+ | ||
 | ebay.com_esafari2015 | LY2-DC12 | 137.99 | 137.99 | 1 | In Stock | Omron | 137.99 @ Qty: 1+ |
