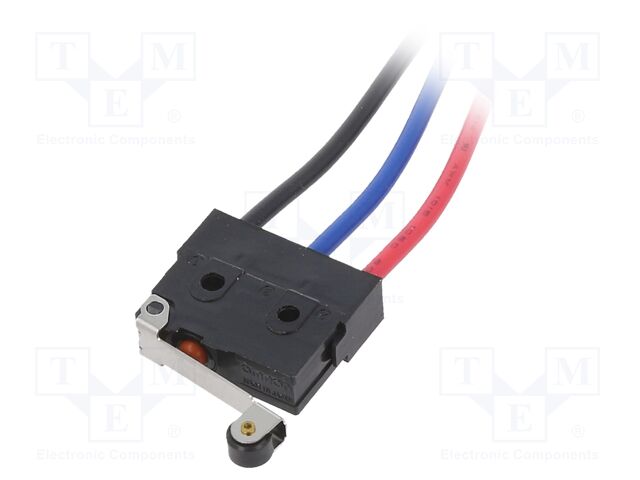

OMRON ELECTRONIC COMPONENTS D2SW-3L2MS MICRO SWITCH, ROLLER LEVER, SPDT 3A 250V (10 pieces)

OMRON ELECTRONIC COMPONENTS D2SW-3L2MS MICRO SWITCH, ROLLER LEVER, SPDT 3A 250V (10 pieces)zoom

Attributes

Key Value
Actuator coloursilver
Actuator TypeRoller Lever, Chassis M.
Alternate Mfr Part Numb.D2SW3L2MS
Body dimensions19.8x6.4x11.3mm
Body StyleSubminiature
Button shaperound
CategorySwitches
CircuitOn-Mom
Contact FormSPDT
Contact platinggold-plated
Contacts configurationSPDT
Current Rating3 A
Current Rating (Amps)Lever, Roller
Dielectric Strength1500 VAC
Differential Travel0.040" (1.0mm)
Electrical Life5,000,000 Cycles
Features60gf
Illuminationnone
Ingress Protection-
IP RatingIP67
IP ratingIP67
Leadsterminal
ManufacturerOMRON OCB
Manufacturer seriesD2SW
Max. contact resistance:50m?
Mechanical durability5000000 cycles
Mechanical Life125 V
MfrOmron Electronics Inc-E.
Min. insulation resista.100M?
Mountingmounting holes
Mounting Hole Size2.4 mm
Mounting TypeWire Leads, Panel Mount
Number of Poles1
Number of positions2
Operating Force6.118gf, 590mN
Operating Position200,000 Cycles
Operating Temperature0.571" (14.5mm)
Operating temperature-40...85?C
OperationSnap Action
Overtravel-40?C ~ 85?C
PackageActive
Package Quantity1
Part StatusSPDT
Pretravel0.031" (0.8mm)
Release Force-
SeriesBulk, D2SW Series
Stable positions numbermonostable,
StandardsUL Recognized, CSA Cert.
Switch Function3A (AC/DC)
Switching methodON-(OFF)
Temperature Rating-40 to +85 C
TerminationWire Leads
Termination StyleIP67 - Dust Tight, Wate.
TypeBasic
Type of switchmicroswitch SNAP ACTION
Voltage Rating125 V
Voltage Rating - AC30 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Sager ElectronicsD2SW3L2MS5.317Omron5.3 @ 1
WaldomOMRON ELECTRONIC COMPONENTS D2SW-3L2MS5.8810190OMRON ELECTRONIC COMPONENTS5.88 @ 10
Heilind ElectronicsD2SW-3L2MS5.883911OMRON ELECTRIC5.8839 @ 1
Onlinecomponents.comD2SW-3L2MS6.8441180Omron6.84 @ 4
thumbzoomNewark36K72638.51163OMRON ELECTRONIC COMPONENTS8.5 @ 1
thumbzoomDigi-KeySW238-ND9.551In StockOmron Electronics Inc-EMC Div9.55 @ 1
us.rs-online.com7017542810.53124Omron Electronic Components10.53 @ 1
thumbzoomTMED2SW-3L2MS10.7118OMRON OCB10.71 @ 1
AmazonTPB005T7H4Z814.471In Stock2OMRON14.47 @ 1
thumbzoombscsource.comD2SW3L2MS14.591In StockOmron14.59 @ 1
thumbzoomZoroG30580357090.51In StockOmron Electronic Components90.5 @ 1
