mpn:
manufacturer:
MPN:
Description:

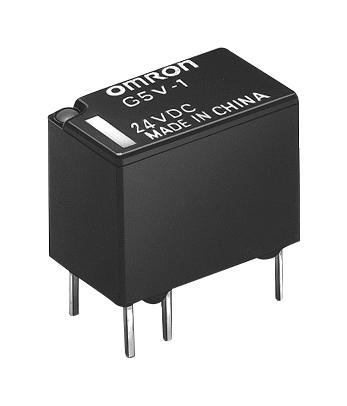

Omron Electronic Components G5V-1-2-DC24
Preferred Price:
3.64
Price:
3.64
Min Simple Price:
1.275
Absolute Min Price:
2.96
Min Price:
2.96
qty:
55
simpleSku:
TQ0MDQ:::G5V-1-2-DC24
sku:
TQ0MDQ::02:G5V-1-2-DC24@y0
condition:
11
seller:
iodParts
amzMan:
omron electronics
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| AC contacts rating @R | 0.5A / 125V AC |
| Alternate Part No. | 653-G5V-1-2DC24 |
| Base Product Number | G5V |
| Body dimensions | 12.5x7.5x10mm |
| Brand | Omron Electronics |
| Category | Relays |
| Coil Current | 6.25 mA, 6.3 mA |
| Coil Current, Coil current | 6.3mA |
| Coil Insulation, Features | - |
| Coil resistance | 3.84k? |
| Coil Resistance | 3.84 kOhms |
| Coil Type | Non-Latching, Non Latching |
| Coil Voltage | 24 V, 24VDC |
| Contact current max. | 2A |
| Contact Current Rating, Contact Rating (Current), Maximum Switching Current | 1 A |
| Contact Form | SPDT (1 Form C) |
| Contact material | Ag/Au |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating | 0.5 A at 125 VAC, 1 A at 24 VDC |
| Contact Rating (Current) | 1A |
| Contact resistance | 100m? |
| Contacts configuration | SPDT |
| DC contacts rating @R | 1A / 24V DC |
| Enclosure description | hermetic seal |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Leads | for soldering |
| Manufacturer | Omron, OMRON OCB |
| Manufacturer Part No., Manufacturer Part Number | G5V-1-2 DC24 |
| Mechanical durability | 5000000 cycles |
| Mfr | Omron Electronics Inc-EMC Div |
| Mounting | PCB |
| Mounting Style, Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time, Operate time, Release Time, Release time | 5ms |
| Operate Time, Release Time | 5 ms |
| Operating Temperature | -40, -40?C ~ 70?C |
| Operating temperature | -30...70?C |
| Package, Packaging | Tube |
| Part # Aliases | 374706 G5V-8008M G5V1224DC G5V8008M |
| Power Consumption | 150 mW |
| Product | Low Profile Relays |
| Product Category | Low Signal Relays - PCB |
| Product Status | Active |
| Rated coil voltage | 24V DC |
| Relay series, Series | G5V-1 |
| Relay Type | General Purpose |
| Relay variant, Type | miniature |
| Seal Rating | Sealed - Fully |
| Standard Package | 500 |
| Switched voltage | max. 60V DC, |
| Switching Voltage | 125VAC, 60VDC - Max |
| Termination Style | PC Pin, Solder Pin |
| Type of relay | electromagnetic |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | iodParts | G5V-1-2 DC24 | 1.275 | 255.765 | 500 | 500 | Omron | 1.275 @ Qty: 500+ | ||
 | Newark | 89C6071 | 1.79 | 359.074 | 500 | 55 | OMRON ELECTRONIC COMPONENTS | 1.79 @ Qty: 500+ | ||
| Allied Electronics | E5360864 | 1.86 | 1.86 | 1 | 53 | Omron Electronic Components | 1.86 @ Qty: 1+ | |||
| Onlinecomponents.com | G5V-1-2-DC24 | 1.88 | 1.88 | 1 | 320 | OMRON ELECTRONICS | 1.88 @ Qty: 1+ | |||
| TME | G5V-1-2-DC24 | 2.43 | 2.43 | 1 | 55 | OMRON OCB | 2.43 @ Qty: 1+ | |||
| Digi-Key | 369034 | 2.921 | 2.921 | 1 | 55 | Omron Electronics Inc-EMC Div | 2.921 @ Qty: 1+ | |||
 | swatee.com | G5V-1-2 DC24 | 3.38 | 3.38 | 1 | 107 | Omron | 3.38 @ Qty: 1+ | ||
 | Radwell | G5V12DC24 | 12.0 | 12.0 | 1 | 55 | OMRON | 12.0 @ Qty: 1+ |
