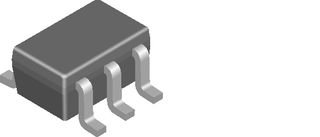

FAIRCHILD SEMICONDUCTOR FDG315N N CHANNEL MOSFET, 30V, 2A, SC-70 (1 piece)

FAIRCHILD SEMICONDUCTOR FDG315N N CHANNEL MOSFET, 30V, 2A, SC-70 (1 piece)zoom

Attributes

Key Value
Base Product NumberFDG315
CategoryDiscrete Semiconductor .
Current - Continuous Dr.2A (Ta)
Drain to Source Voltage.30 V
Drive Voltage (Max Rds .4.5V, 10V
FET Feature-
FET TypeN-Channel
Gate Charge (Qg) (Max) .4 nC @ 5 V
Input Capacitance (Ciss.220 pF @ 15 V
MfrFairchild Semiconductor
Mounting TypeSurface Mount
Operating Temperature-55?C ~ 150?C (TJ)
PackageBulk
Package / Case6-TSSOP, SC-88, SOT-363
Part StatusActive
Power Dissipation (Max)750mW (Ta)
Rds On (Max) @ Id, Vgs120mOhm @ 2A, 10V
SeriesPowerTrench?
Supplier Device PackageSC-88 (SC-70-6)
TechnologyMOSFET (Metal Oxide)
Vgs (Max)?20V
Vgs(th) (Max) @ Id3V @ 250?A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH18115860.1996413000Fairchild Semiconductor0.19964 @ 5
thumbzoomNewark58K14450.24630005ONSEMI0.246 @ 3000
Digi-Key125943720.2703004291851165185115Fairchild Semiconductor0.270300429185 @ 1165
RadwellFDG315N0.3530005FAIRCHILD SEMICONDUCTOR0.35 @ 3000
AmazonTPB06Y54HJKB45.62152ON Semiconductor45.62 @ 5
AmazonSCB06Y54HJKB65.5515ON Semiconductor65.55 @ 5
