Orion Fans OD7020-12HB

B08SR33ZX7

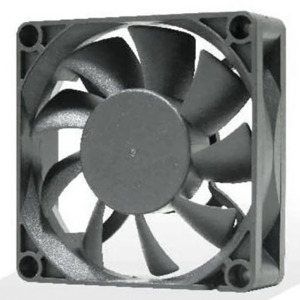

DC Fans Fan, 70x20mm 12VDC, 41CFM

DC Fans Fan, 70x20mm 12VDC, 41CFMzoom

Attributes

Key Value
Air Flow41.0 CFM (1.15m?/min), .
Approval AgencycURus, TUV
Approximate Size2.8 x 2.8 in. ; 70 x 70.
Approximate Thickness0.8 in. ; 20 mm
Base Product NumberOD7020
Bearing TypeDual Ball, Ball
CategoryFans, Thermal Management
ConfigurationSquare
Current Rating0.35 A
Current Rating (Amps)0.430A
DescriptionFAN AXIAL 70X20MM 12VDC.
Detailed DescriptionFan Tubeaxial 12VDC Squ.
Digi-Key Part Number1053-1605-ND
Dimensions2.76 x 2.76 x 0.79 . ; .
Fan TypeTubeaxial, DC
Features-
Ingress Protection-
Lifetime @ Temp.70000 Hrs @ 40?C
ManufacturerOrion Fans
Manufacturer Product Nu.OD7020-12HB
Manufacturer Standard L.19 Weeks
MaterialPlastic
Material - BladePolybutylene Terephthal.
Material - FramePolybutylene Terephthal.
Maximum Operating Tempe.70 C
MfrOrion Fans
Minimum Operating Tempe.-10 C
Noise41.5dB
Noise Level41.5 dBA
Operating Temperature14 ~ 158?F (-10 ~ 70?C)
PackageBox
Power (Watts)5.16 W
Power Rating5.2 W
Product StatusActive
RotationCW
RPM4500 RPM
SeriesOD7020, OD7020 Series
Size2.76 x 0.79 (70 x 20) I.
Size / DimensionSquare - 70mm L x 70mm H
Speed4500 RPM
Static Pressure0.26 in H2O (64.8 Pa), -
TerminationWire Leads, 2 Wire Leads
TypeSquare
Voltage - Rated12VDC
Voltage Range10.8 ~ 13.2VDC
Voltage Rating12 V
Weight0.137 lb (62.14 g), 62 g
Width20.00mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH19029569.151278Orion Fans9.15 @ 1
thumbzoomjensentools.com1014197511.651In StockOrion Fans11.65 @ 1
us.rs-online.com7054668212.491In StockOrion Fans0.136412.49 @ 1
thumbzoomDigi-Key514712012.94196Orion Fans0.13712.94 @ 1
Newark36AJ774814.11In StockORION FANS14.1 @ 1
