Attributes
| Key | Value |
|---|---|
| Application | For Aluminum : 6061, 7071, Aluminum : Casting, Cast Iron, Low Carbon Steel : 1010, 1018, Medium Carbon Steel : 1035, 1045, High Carbon Steel : 1065, Alloy Steels : 4140, 4340, Die Steels : 20 HrC, Stainless Steels : 300, Stainless Steels : 400, Stainless Steels : 17-4PH, Nickel Alloy: Inconel, Titanium: 6Al4V, Hardened Steels : 35 HrC, Hardened Steels : 35-45 HrC, Hardened Steels : 45-50 HrC |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Country of Origin (subject to change) | Japan |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1252 |
| Depth x Dia. Ratio | 8xD |
| Depth:Dia. Ratio | 8xD |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | EgiAs |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 140 Degrees |
| Drill Bit Size | 3.18 mm |
| Flute Length | 35.00 mm |
| Flute Type | Spiral |
| Grade | High Performance |

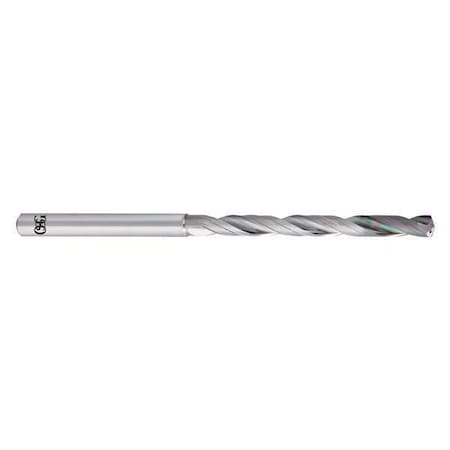

| Item | Taper Length Drill Bit |
| List Number | 6520 |
| Material - Machining | Carbide |
| Number of Flutes | 2 |
| Overall Length | 95.00 mm |
| Point Type | X Thinning |
| Series | A-Drill |
| Shank Dia. | 3.20 mm |
| Shank Type | Straight |
