Panasonic Industrial Devices 35SVPF22M

B0748MFM52

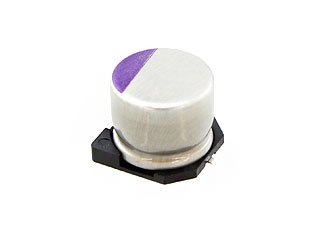

PANASONIC INDUSTRIAL DEVICES 35SVPF22M SVPF Series 35 V 22 uF ?20% 6.3 x 6 mm SMT Polymer Aluminum Capacitor - 1000 item(s)

PANASONIC INDUSTRIAL DEVICES 35SVPF22M SVPF Series 35 V 22 uF ?20% 6.3 x 6 mm SMT Polymer Aluminum Capacitor - 1000 item(s)zoom

Attributes

Key Value
Alternate Part No.667-35SVPF22M
ApplicationsGeneral Purpose
Base Product Number35SVPF
Body dimensions?6.3x5.9mm
BrandPANASONIC
Capacitance22 uF, 22 ?F, 22?F, 22
Capacitors seriesSVPF
Case Diameter6.3 mm
Case Length5.9 mm
CategoryCapacitors
Dissipation Factor DF12
ESR35 mOhms
ESR (Equivalent Series .35mOhm
Height - Seated (Max)0.236" (6.00mm)
Impedance35m?
Lead Free Status / RoHS.RoHS Compliant
Lead Spacing-
Leakage Current154 uA
Lifetime @ Temp.5000 Hrs @ 105?C, 5000 .
ManufacturerPANASONIC
Manufacturer Part No.35SVPF22M
Manufacturer Part Number35SVPF22M
Manufacturer seriesOS-CON
Manufacturer Standard L.11 Weeks
Maximum Operating Tempe.+ 105 C
MfrPanasonic Electronic Co.
Minimum Operating Tempe.- 55 C
MountingSMD
Mounting TypeSurface Mount
Operating Temperature-55, -55?C ~ 105?C
Operating temperature-55...105?C
Operating voltage35V DC
PackageTape & Reel (TR)
Package / CaseRadial, Can - SMD
PackagingReel
Part StatusActive
ProductOrganic Polymer Aluminu.
Product CategoryAluminium Organic Polym.
Product TypeCan
Ratings-
Ripple Current2600 mA
Ripple Current - High F.2.6A @ 100kHz
Ripple Current - Low Fr.130mA @ 120Hz
Ripple Current @ High F.2.6 A @ 100 kHz
Ripple Current @ Low Fr.130 mA @ 120 Hz
SeriesOS-CON?, SVPF, SVPF, OS.
Service life5000h
Size / Dimension0.248" Dia (6.30mm)
Standard Package1,000
Surface Mount Land Size0.260" L x 0.260" W (6..
Termination StyleSMD/SMT
Tolerance?20%, 20 %
TradenameOSCON
Typepolymer
Type of capacitorpolymer
Voltage - Rated35V, 35 V
Voltage Rating DC35 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
iodParts35SVPF22M0.5785005000Panasonic0.578 @ 500
Onlinecomponents.com35SVPF22M0.6251890PANASONIC0.625 @ 25
thumbzoomNewark68AC57220.8871395PANASONIC0.887 @ 25
thumbzoomTME35SVPF22M1.09129PANASONIC1.09 @ 25
Digi-Key42048921.115002886Panasonic Electronic Components1.11 @ 25
RS Delivers795-5342P2.0856116725Panasonic2.0856 @ 25
thumbzoomswatee.com35SVPF22M2.6712739Panasonic2.67 @ 25
