ECA-1HM100I

B00M258XEG

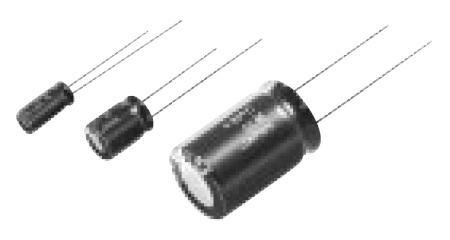

Aluminum Electrolytic Capacitors - Leaded 10UF 50V ELECT M RADIAL (1 piece)

Aluminum Electrolytic Capacitors - Leaded 10UF 50V ELECT M RADIAL (1 piece)zoom

Attributes

Key Value
Alternate Part No.667-ECA-1HM100I
ApplicationsGeneral Purpose
Base Product NumberECA-1HM
BrandPanasonic
Capacitance10 uF, 10 ?F
Capacitance Range1 to 99 uF
Case Diameter5 mm
Case Length11 mm
Case SizeDia. 0.197 x L 0.433 in.
CategoryCapacitors
ConfigurationRadial ; Can
DescriptionCAP ALUM 10UF 20% 50V R.
Detailed Description10 ?F 50 V Aluminum Ele.
Digi-Key Part NumberP10425CT-ND - Cut Tape .
Dimensions5 mm Dia. x 11 mm L, 0..
Dissipation Factor DF0.12
Element MaterialAluminum Electrolytic
ESR (Equivalent Series .-
Height - Seated (Max)0.472" (12.00mm)
Lead Diameter0.5 mm
Lead Spacing0.098" (2.50mm), 2.5 mm.
Leakage Current3 uA
Life2000 Hours
Lifetime @ Temp.2000 Hrs @ 85?C
Load Life2000 h
ManufacturerPanasonic, Panasonic El.
Manufacturer Part No.ECA-1HM100I
Manufacturer Product Nu.ECA-1HM100I
Manufacturer Standard L.34 Weeks
Maximum Operating Tempe.+ 85 C, 85 C
MfrPanasonic Electronic Co.
Minimum Operating Tempe.-40 C
Mounting TypeThrough Hole, PCB Mount
Operating Temperature-40?C ~ 85?C
PackageCut Tape (CT)
Package / CaseRadial, Can
PackagingAmmo Pack, Tape & Box (.
PolarizationPolar
ProductGeneral Purpose Electro.
Product CategoryAluminium Electrolytic .
Product StatusActive
Ratings-
Ripple Current65 mA
Ripple Current @ High F.110.5 mA @ 10 kHz
Ripple Current @ Low Fr.65 mA @ 120 Hz
SeriesM Series, M, M-A
Size / Dimension0.197" Dia (5.00mm)
Surface Mount Land Size-
TerminationThrough Hole
Termination StyleRadial
Tolerance20% %, ?20%, 20 %
TypeAluminum Electrolytic C.
Voltage - Rated50 V
Voltage Rating50 VDC
Voltage Rating DC50 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
ArrowECA-1HM100I0.03720004000Panasonic0.037 @ 2000
thumbzoomTMEECA1HM100I0.0439100002277PANASONIC0.0439 @ 10000
RS Delivers176-37090.050412000Panasonic0.0504 @ 1
Onlinecomponents.comECA-1HM100I0.05414080PANASONIC0.054 @ 1
us.rs-online.com702558650.0824160002277Panasonic Electronic Components0.08241 @ 6000
thumbzoomDigi-Key2685100.24133346Panasonic Electronic Components0.24 @ 1
thumbzoomNewark21AJ98800.285357PANASONIC0.28 @ 1
thumbzoomswatee.comECA-1HM100I0.331127819Panasonic0.331 @ 1
AmazonSCB00OVEQQIG0.4712277Panasonic Electronic Components0.0006250.47 @ 1
