Panasonic ECE-A1AN470U

B011NB5XEM

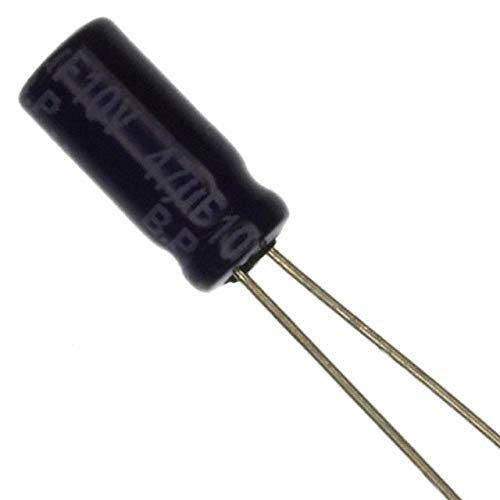

PANASONIC ELECTRONIC COMPONENTS ECE-A1AN470U Aluminium Electrolytic Capacitor, AEC-Q200 SU(Bi-polar) Series, 47 ???F, ??? 20%, 10 V, 5 mm (1 piece)

PANASONIC ELECTRONIC COMPONENTS ECE-A1AN470U Aluminium Electrolytic Capacitor, AEC-Q200 SU(Bi-polar) Series, 47 ???F, ??? 20%, 10 V, 5 mm (1 piece)zoom

Attributes

Key Value
ApplicationsGeneral Purpose
Base Product NumberECE-A1
Body dimensions?5x11mm
Capacitance47?F, 47 uF, 47 ?F
Capacitance Range1 to 99 uF
Case SizeDia. 0.197 x L 0.433 in.
CategoryCapacitors
ConfigurationRadial ; Can
DescriptionCAP ALUM 47UF 20% 10V R.
Detailed Description47 ?F 10 V Aluminum Ele.
Digi-Key Part NumberP1154-ND
Dimensions0.197 Dia. x 0.433 L ; .
Element MaterialAluminum Electrolytic
ESR (Equivalent Series .-
Height - Seated (Max)0.472" (12.00mm)
Kind of capacitorbipolar
Lead Diameter0.5 mm
Lead Spacing0.079" (2.00mm), 0.079 .
Life2000 Hours
Lifetime @ Temp.2000 Hrs @ 85?C
ManufacturerPANASONIC, Panasonic El.
Manufacturer Product Nu.ECE-A1AN470U
Manufacturer seriesSU
Manufacturer Standard L.34 Weeks
Maximum Operating Tempe.85 C
MfrPanasonic Electronic Co.
Minimum Operating Tempe.-40 C
MountingTHT
Mounting TypeThrough Hole, PCB Mount
Operating current90mA
Operating Temperature-40?C ~ 85?C
Operating temperature-40...85?C
Operating voltage10V DC
PackageBulk
Package / CaseRadial, Can
PackagingBulk
PolarizationBi-Polar
Product StatusActive
Ratings-
Ripple Current0.09 A
Ripple Current @ High F.153 mA @ 10 kHz
Ripple Current @ Low Fr.90 mA @ 120 Hz
SeriesSU Series, SU
Service life2000h
Size / Dimension0.197" Dia (5.00mm)
Surface Mount Land Size-
Terminal pitch2mm
TerminationThrough Hole
Tolerance?20%, 20% %
Type of capacitorelectrolytic
Voltage - Rated10 V
Voltage Rating10 VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark85Y45980.0381425PANASONIC0.038 @ 1
Onlinecomponents.comECE-A1AN470U0.12517000PANASONIC0.125 @ 1
RS Delivers807-35040.19081100Panasonic0.1908 @ 1
thumbzoomTMEECEA1AN470U0.2111030PANASONIC0.211 @ 10
us.rs-online.com702560550.2130912269Panasonic Electronic Components0.21309 @ 1
thumbzoomDigi-Key2275950.37113115Panasonic Electronic Components0.37 @ 1
AmazonTPB011NB5XEM7.881In Stock2PANASONIC ELECTRONIC COMPONENTS7.88 @ 1
