Panasonic ECQ-E2683KF

mpnECQE2683KF
brandname: Panasonic
manufacturername: Panasonic

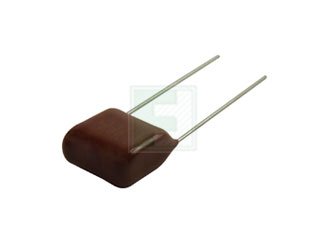

PANASONIC INDUSTRIAL DEVICES ECQ-E2683KF ECQE Series 0.068 uF 250 V 10.3 x 4.5 mm LS=7.5 mm Metallized PET Film Capacitor - 1000 item(s)

PANASONIC INDUSTRIAL DEVICES ECQ-E2683KF ECQE Series 0.068 uF 250 V 10.3 x 4.5 mm LS=7.5 mm Metallized PET Film Capacitor - 1000 item(s)

zoom

Brand: Panasonic
PartNumber: ECQ-E2683KF
Model: ECQ-E2683KF
PackageQuantity: 1
Manufacturer: PANASONIC INDUSTRIAL DEVICES
Label: PANASONIC INDUSTRIAL DEVICES

Attributes

Key	Value
Applications	General Purpose
Base Product Number	ECQ-E2683
Body dimensions	10.3x4.5x7.5mm
Brand	Panasonic
Capacitance	0.068 uF, 68nF, 0.068 ?F
capacitance	0.068 uF
Capacitance Range	0.001 to 0.099 uF
Category	Capacitors
Configuration	Radial
Depth	4.5mm
Description	CAP FILM 0.068UF 10% 25.
Detailed Description	0.068 ?F Film Capacitor.
Dielectric	PET
Dielectric Material	Polyester, Metallized
Digi-Key Part Number	EF2683-ND
Dimensions	4.5 x 7.5 x 10.3mm
Element Material	Polyester Metallized
Features	-
Height	7.5mm
Height - Seated (Max)	0.335" (8.50mm)
item per pack	1
Lead Diameter	0.6 mm, 0.6mm
Lead Pitch	7.5mm
Lead Spacing	7.5 mm, 0.295" (7.50mm)
lead style	-
Lead Type	Straight
lead type	Radial
Length	10.3mm
Manufacturer	Panasonic, Panasonic El.
Manufacturer Product Nu.	ECQ-E2683KF
Manufacturer Standard L.	40 Weeks
Maximum Operating Tempe.	105 C
Mfr	Panasonic Electronic Co.
Minimum Operating Tempe.	-40 C
Mounting	THT
Mounting Type	Through Hole, PCB Mount
Operating Temperature	-40?C ~ 105?C
Operating temperature	-40...105?C
Operating voltage	250V dc
Package	Bulk
package	Bulk
Package / Case	Radial
Packaging	Bulk
Product Status	Active
Ratings	-
Series	ECQE Series, ECQ-E(F), .
Size / Dimension	0.406" L x 0.177" W (10.
Stock	Stock
temperature	-
Terminal pitch	7.5mm
Terminal Type	Through Hole
Termination	Through Hole, PC Pins
Tolerance	10% %, Tolerance, ?10%
tolerance	10%
Tolerance Minus	-10%
Tolerance Plus	+10%
Type of capacitor	polyester
voltage	250 v
Voltage	250V dc
Voltage Rating	250 VDC
Voltage Rating - AC	150V
Voltage Rating - DC	250V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	TME	ECQE2683KF	0.094	4000	1063		PANASONIC		0.094 @ 4000
	Newark	49W1293	0.15	1000	1063		PANASONIC		0.15 @ 1000
	Onlinecomponents.com	ECQ-E2683KF	0.165	1	8000		PANASONIC		0.165 @ 1
	Tedss	2020048911	0.25	40	400		PANASONIC		0.25 @ 40
	RS Delivers	476-3957	0.3024	5	1063		Panasonic		0.3024 @ 5
	us.rs-online.com	70260076	0.36992	1	480		Panasonic Electronic Components		0.36992 @ 1
	Digi-Key	56450	0.6	1	70		Panasonic Electronic Components		0.6 @ 1
	AmazonSC	B00OVEE72S	0.93	1	1063		Panasonic Electronic Components	0.000625	0.93 @ 1
