EEETG1H220P

mpnEEE-TG1H220P
brandname: Panasonic
manufacturername: Panasonic

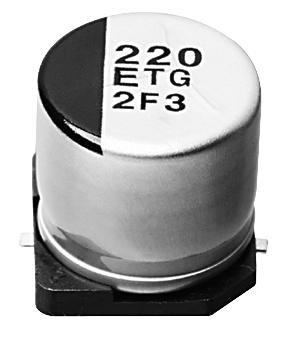

Aluminum Electrolytic Capacitors - Smd Al Lytic Cap Smt Tg Series 125C

Aluminum Electrolytic Capacitors - Smd Al Lytic Cap Smt Tg Series 125C

zoom

PartNumber: EEETG1H220P
Model: HR-2079270-1
PackageQuantity: 1
Manufacturer: Panasonic Electronic Components
Label: Panasonic Electronic Components

Attributes

Key	Value
Applications	Automotive
Base Product Number	EEE-TG
Capacitance	22 ?F
Category	Capacitors
Description	CAP ALUM 22UF 20% 50V S.
Detailed Description	22 ?F 50 V Aluminum Ele.
Digi-Key Part Number	PCE4074TR-ND - Tape & R.
ESR (Equivalent Series .	1.6Ohm @ 100kHz
Height - Seated (Max)	0.244" (6.20mm)
Lead Spacing	-
Lifetime @ Temp.	1000 Hrs @ 125?C
Manufacturer	Panasonic Electronic Co.
Manufacturer Product Nu.	EEE-TG1H220P
Manufacturer Standard L.	33 Weeks
Mfr	Panasonic Electronic Co.
Mounting Type	Surface Mount
Operating Temperature	-40?C ~ 125?C
Package	Tape & Reel (TR)
Package / Case	Radial, Can - SMD
Polarization	Polar
Product Status	Active
Ratings	AEC-Q200
Ripple Current @ High F.	80 mA @ 100 kHz
Ripple Current @ Low Fr.	52 mA @ 120 Hz
Series	TG
Size / Dimension	0.315" Dia (8.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8..
Tolerance	?20%
Voltage - Rated	50 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	EEE-TG1H220P	0.309	1	1667		PANASONIC		0.309 @ 1
	Component Electronics	SMT-41717	0.77	1	800		Panasonic		0.77 @ 1
	Newark	62W7219	0.853	1	2948		PANASONIC		0.853 @ 1
	Digi-Key	817650	0.9	1	4375		Panasonic Electronic Components		0.9 @ 1
	TME	EEETG1H220P	0.91732	2	1983		PANASONIC		0.91732 @ 2
