Attributes
| Key | Value |
|---|---|
| Brand | Panasonic |
| Depth | 3.2mm |

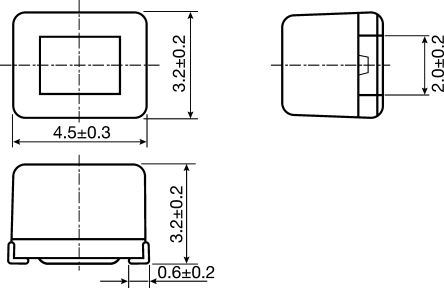

| Dimensions | 4.5 x 3.2 x 3.2mm |
| Height | 3.2mm |
| Inductance | Inductance |
| Inductor Construction | Wire-Wound |
| Length | 4.5mm |
| Maximum dc Current | 105mA |
| Maximum DC Resistance | 8.8? |
| Maximum Operating Temperature | +85?C |
| Maximum Self Resonant Frequency | 6.7MHz |
| Minimum Operating Temperature | -20?C |
| Minimum Quality Factor | 40 |
| Moulded | Yes |
| Package/Case | 1812 (4532M) |
| Series | ELJFB |
| Stock | Stock |
| Tolerance | Tolerance |
