Panasonic Industrial Devices EVQ-9P6B40

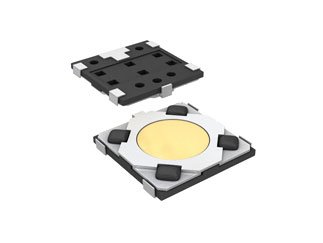

PANASONIC INDUSTRIAL DEVICES EVQ-9P6B40 EVQ-9P Series 2.4 N 0.02 A 15 V 4.1 x 4.1 mm SMT Flush Light Touch Switch - 10000 item(s)

PANASONIC INDUSTRIAL DEVICES EVQ-9P6B40 EVQ-9P Series 2.4 N 0.02 A 15 V 4.1 x 4.1 mm SMT Flush Light Touch Switch - 10000 item(s)zoom

Attributes

Key Value
Actuator Height off PCB.0.43mm
Actuator Length, Right .-
Actuator Material-
Actuator OrientationTop Actuated
Actuator TypeFlush
Base Product NumberEVQ-9
Body dimensions4.1x4.1x0.35mm
Brand .
Button height0.43mm
Button shaperound
CategorySwitches
CircuitSPST-NO
Contact Configuration .
Contact Current Rating .
Contact Rating @ Voltage0.02A @ 15VDC
Contacts configurationSPST
DC contacts rating @R0.02A / 15V DC
Features-
IlluminationNon-Illuminated
Illumination Type, Color-
Illumination Voltage (N.-
Ingress Protection-
Kind of packagereel
Leadsfor PCB
Manufacturer .
Manufacturer seriesEVQP
Max. contact resistance:500m?
Maximum Operating Tempe. .
Mechanical durability500000 cycles
Mechanical Life500,000 Cycles, .
MfrPanasonic Electronic Co.
Minimum Operating Tempe. .
MountingSMT
Mounting Type .
Number of positions2
Operating Force240gf, .
Operating Temperature-20?C ~ 70?C
Operating temperature-20...70?C
Operating Temperature R. .
Outline4.10mm x 4.10mm
PackageTape & Reel (TR)
Product StatusActive
SeriesEVQ9P6 Series, EVQ9P6
Stable positions number1
Switch FunctionOff-Mom
Switch Operation .
Switch Travel0.20mm
Switching methodOFF-(ON)
Terminal Type .
Termination StyleJ Lead
Type of switchmicroswitch TACT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics70754150.18361000010000Panasonic0.1836 @ 10000
thumbzoomNewark01X16750.211000010000PANASONIC0.21 @ 10000
Digi-Key21930210.2136110000Panasonic Electronic Components0.2136 @ 10000
TMEEVQ9P6B400.253141000010000PANASONIC0.25314 @ 10000
us.rs-online.com702705200.299961000010000Panasonic Electronic Components0.29996 @ 10000
