Description:

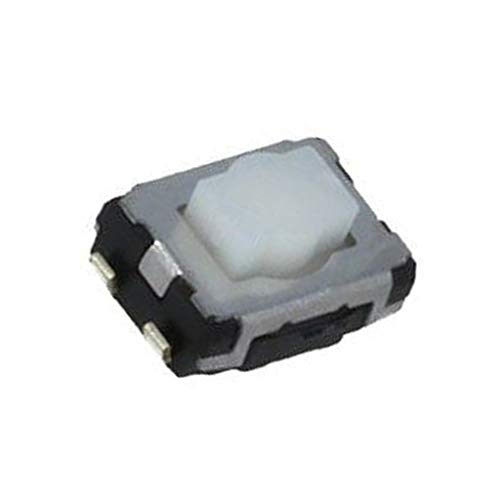

Switch; Tactile; SPST; 4.7x3.5mm; SMD; OF=3.5N; Hgt=2.5mm
Preferred Price:
1.91
Price:
1.91
Min Simple Price:
0.347
Absolute Min Price:
1.7
Min Price:
1.7
Dimensions:
[1.0, 1.0, 1.0]
qty:
223
simpleSku:
MDc0OA:::EVQ-P2602W
sku:
MDc0OA::HA:EVQ-P2602W@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
panasonic
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Actuator colour | white |
| Actuator Height off PCB, Vertical | 2.50mm |
| Actuator Length, Right Angle, Actuator Material, Features, Illumination Type, Color, Illumination Voltage (Nominal), Ingress Protection | - |
| Actuator Orientation | Top Actuated |
| Actuator Type | Rectangular Button |
| Base Product Number | EVQ-P2 |
| Body dimensions | 4.7x3.5x1.65mm |
| Button height | 2.5mm |
| Button shape | rectangular |
| Category | Switches |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.02A @ 15VDC |
| Contacts configuration | SPST |
| DC contacts rating @R | 0.02A / 15V DC |
| Illumination | none, Non-Illuminated |
| Kind of package, Packaging | reel |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Leads | for PCB |
| Manufacturer | PANASONIC |
| Manufacturer Part Number | EVQ-P2602W |
| Manufacturer series, Series | EVQP2 |
| Manufacturer Standard Lead Time | 7 Weeks |
| Max. contact resistance:, Min. insulation resistance | 100m? |
| Mechanical Life | 200,000 Cycles |
| Mfr | Panasonic Electronic Components |
| Mounting | SMT |
| Mounting Type | Surface Mount |
| Number of positions | 2 |
| Operating Force | 350gf |
| Operating Temperature | -40?C ~ 85?C, -40 |
| Operating temperature | -40...85?C |
| Outline | 4.70mm x 3.50mm |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Stable positions number | 1 |
| Standard Package | 4,000 |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Switching method | (ON)-OFF |
| Termination Style | J Lead |
| Type of switch | microswitch TACT |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | EVQ-P2602W | 0.347 | 159.62 | 1000 | 1426 | Panasonic | 0.347 @ Qty: 1000+ | |||
 | Newark | 01X1660 | 0.448 | 743.68 | 4000 | 100 | PANASONIC | 0.448 @ Qty: 100+ | ||
| iodParts | EVQ-P2602W | 0.5 | 130.0 | 500 | 60000 | Panasonic | 0.5 @ Qty: 500+ | |||
 | TME | EVQP2602W | 0.53305 | 32.19622 | 1 | 2570 | PANASONIC | 0.53305 @ Qty: 100+ | ||
| Mouser | 667-EVQ-P2602W | 0.572 | 34.5488 | 1 | 6397 | Panasonic | 0.572 @ Qty: 100+ | |||
| Digi-Key | 593465 | 0.6133 | 37.04332 | 1 | 238820 | Panasonic Electronic Components | 0.6133 @ Qty: 100+ | |||
| AmazonTP | B005T9ZFHA | 15.25 | 921.1 | 1 | 100 | 2 | Panasonic | 15.25 @ Qty: 100+ |
