Panasonic TX2SA-4.5V-Z

B00FRBPZAC

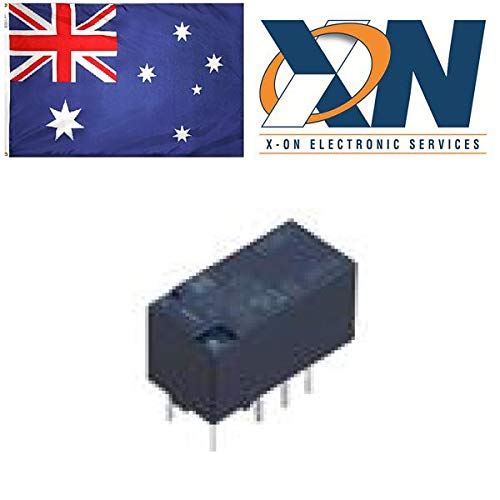

Panasonic Electronic Components TX2SA-4.5V-Z Signal Relays (Dry to 3 Amps)

Panasonic Electronic Components TX2SA-4.5V-Z Signal Relays (Dry to 3 Amps)zoom

Attributes

Key Value
Alternate Part No.769-TX2SA-4.5V-Z
Base Product NumberTX2SA
BrandPanasonic Industrial De.
CategoryRelays
Coil Current31 mA
Coil Insulation-
Coil Resistance145 Ohms
Coil TypeNon-Latching, Non Latch.
Coil Voltage4.5 V, 4.5VDC
Contact Current Rating2 A
Contact FormDPDT (2 Form C)
Contact MaterialSilver (Ag), Gold (Au)
Contact Rating2 A at 30 VDC
Contact Rating (Current)2 A
DescriptionRELAY TELECOM DPDT 2A 4.
Detailed DescriptionTelecom Relay DPDT (2 F.
Digi-Key Part Number255-1788-2-ND - Tape & .
Features-
Insertion Loss0.8 dB at 1 GHz
Isolation20 dB at 1 GHz
ManufacturerPanasonic Electric Work.
Manufacturer Part No.TX2SA-4.5V-Z
Manufacturer Product Nu.TX2SA-4.5V-Z
Manufacturer Standard L.24 Weeks
Maximum Switching Curre.2 A
MfrPanasonic Electric Works
Mounting StyleThrough Hole
Mounting TypeSurface Mount
Must Operate Voltage3.38 VDC
Must Release Voltage0.45 VDC
Operate Time4 ms
Operating Temperature-40?C ~ 85?C
PackageTape & Reel (TR)
PackagingReel
Power Consumption140 mW
ProductLow Profile Relays
Product CategoryLow Signal Relays - PCB
Product StatusActive
Relay TypeTelecom
Release Time4 ms
Seal RatingSealed - Fully
SeriesTX
Switching Voltage220VDC - Max
Termination StyleGull Wing, Solder Pin

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Allied ElectronicsE53660112.70025005Panasonic2.7002 @ 500
Onlinecomponents.comTX2SA-4.5V-Z3.09110000PANASONIC EW/AROMAT3.09 @ 5
thumbzoomDigi-Key6496533.1611988Panasonic Electric Works3.16 @ 5
thumbzoomNewark11C04543.195005PANASONIC3.19 @ 500
us.rs-online.com746141623.225005Panasonic Electronic Components3.22 @ 500
thumbzoomswatee.comTX2SA-4.5V-Z7.941365Panasonic7.94 @ 5
