- mpnDNFR14-206B-M
- brandname: PANDUIT
- manufacturername: PANDUIT

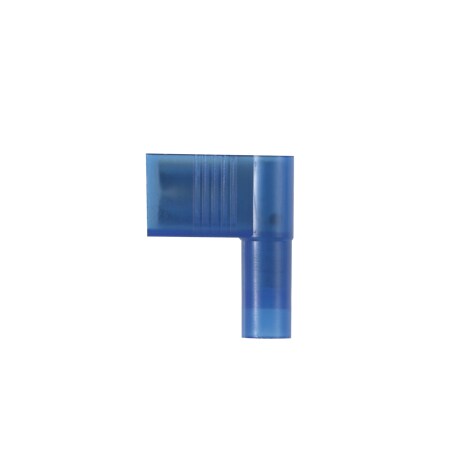

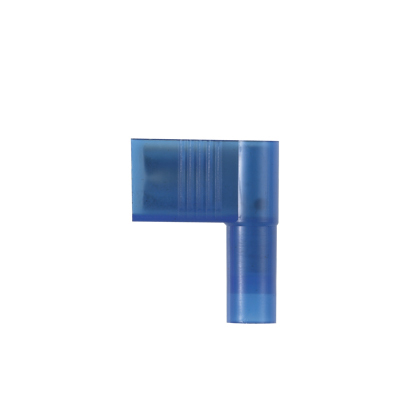

Panduit DNFR14-206B-M 16/14 NYLON RT ANGLE FULLY INSULATED DISCONNECT BUTTED (package of 100)


- Brand: Panduit
- PartNumber: DNFR14-206B-M
- PackageQuantity: 100
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Approvals | CSA, UL |
| Base Product Number | DNFR14 |
| Category | Connectors, Interconnec. |
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Brass |
| Country of Origin (subj. | Mexico |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Gender | Female |
| Gross Weight | 0 lbs |
| Insulated | Insulated |
| Insulation | Fully Insulated |
| Insulation Diameter | 0.155" (3.94mm) |
| Insulation Material | Nylon |
| Item Number | DNFR14-206B-M |
| Length - Overall | - |
| Manufacturer | Panduit |
| Manufacturer Part Number | DNFR14-206B-M |
| Max Temp | 221 ?F |
| Mfr | Panduit Corp |
| Mounting Type | Free Hanging (In-Line),. |
| Net Weight | 0 lbs |
| Package | Bulk |
| Package Quantity | 1,000 |
| Part Status | Obsolete |
| Plating Material | Tin |
| Product Series | Pan-Term Disconnects |
| RoHS Compliant | Yes |
| Series | Pan-Term? |
| Tab Length | - |
| Tab Size | 0.187 x 0.02 ", 0.205 x. |
| Tab Thickness | 0.020" (0.51mm) |
| Tab Width | 0.187" (4.75mm), 0.205". |
| Terminal Material | Brass |
| Terminal Type | Disconnect - Female, An. |
| Termination | Crimp |
| UPC Code | 074983826636 |
| Volts | 600 V |
| Wire Gauge | 14-16 AWG |
| Wire Size | 16-14 AWG |
| Wire Size (AWG) | 14 AWG, 15 AWG, 16 AWG |
| Wire Strip Length | 0.281 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | DNFR14-206B-M | 0.375 | 1 | 1028 | | PANDUIT | | 0.375 @ 100 |
| Hotenda | H1646605 | 0.4294 | 1 | 1057 | | Panduit | | 0.4294 @ 100 |
| Heilind Electronics | DNFR14-206B-M | 0.47651 | 9 | 100 | | PANDUIT | | 0.47651 @ 100 |
  | French Gerleman | PANDDNFR14206BM | 0.48 | 1 | 100 | | Panduit | | 0.48 @ 100 |
  | Galco | DNFR14-206B-M-PNDT | 0.49 | 1000 | 100 | | Panduit | | 0.49 @ 1000 |
| us.rs-online.com | 71091314 | 0.52059 | 1000 | 100 | | Panduit | | 0.52059 @ 1000 |
  | Radwell | DNFR14-206B-M | 0.6 | 1000 | 100 | | PANDUIT | | 0.6 @ 1000 |
| Digi-Key | 448147 | 0.6541 | 100 | 444 | | Panduit Corp | | 0.6541 @ 100 |
  | Carlton Bates Company | 07498382663 | 440.0 | 1 | 100 | | PANDUIT | | 440.0 @ 100 |
  | alldataresource.com | 10044104 | 470.75 | 1 | 100 | | Panduit | | 470.75 @ 100 |
  | Zoro | G2863247 | 477.16 | 1 | 100 | 18 | Panduit | | 477.16 @ 100 |
  | turtle.com | PAN DNFR14-206B-M | 502.95 | 1 | 100 | | Panduit | | 502.95 @ 100 |
| gordonelectricsupply.com | DNFR14-206B-M | 520.0 | 1 | 100 | 12 | PANDUIT | | 520.0 @ 100 |
| steinerelectric.com | 71231 | 559.23 | 1 | 100 | | Panduit | | 559.23 @ 100 |
