- mpnLCA2-56-Q
- brandname: Panduit
- manufacturername: Panduit

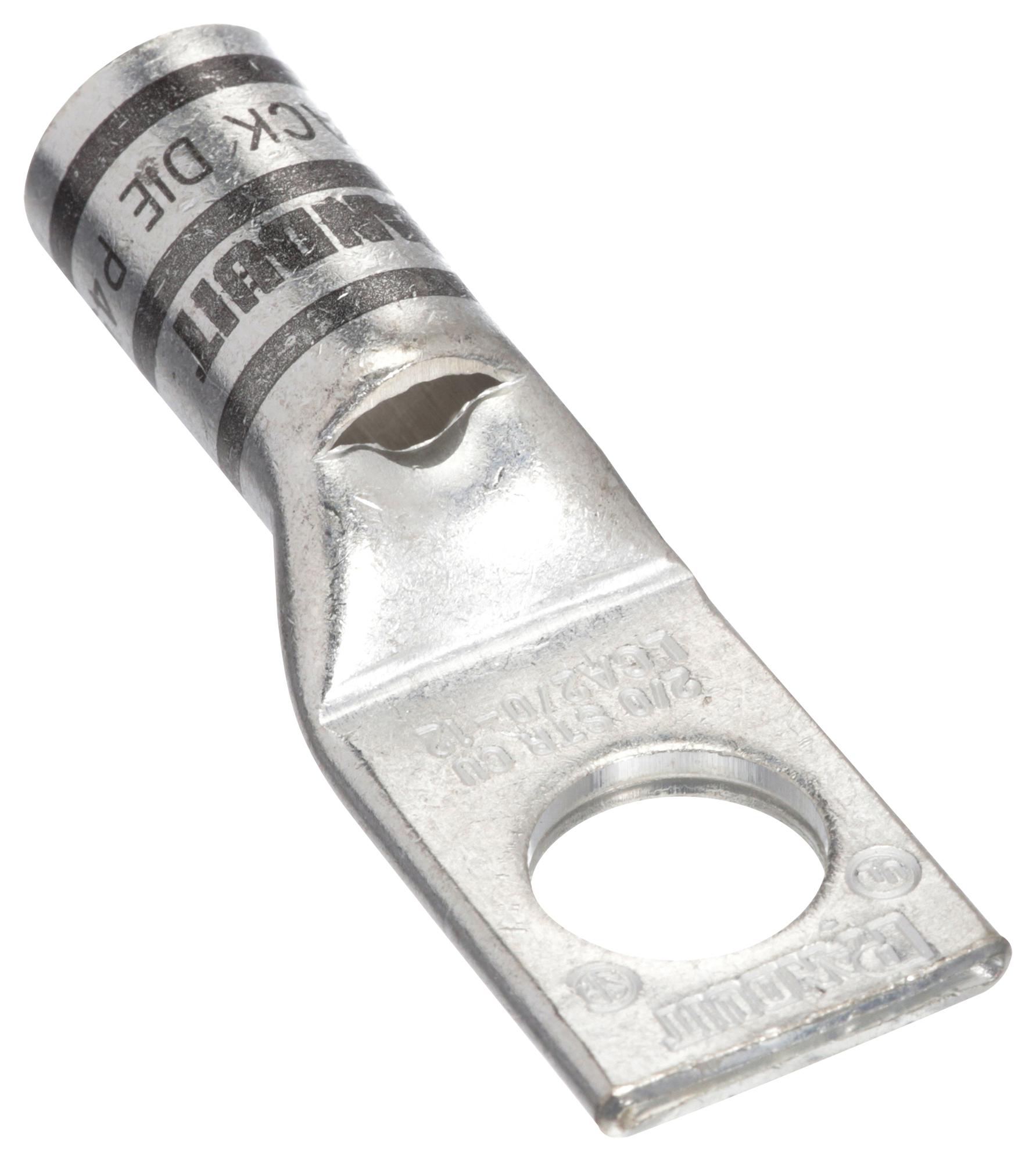

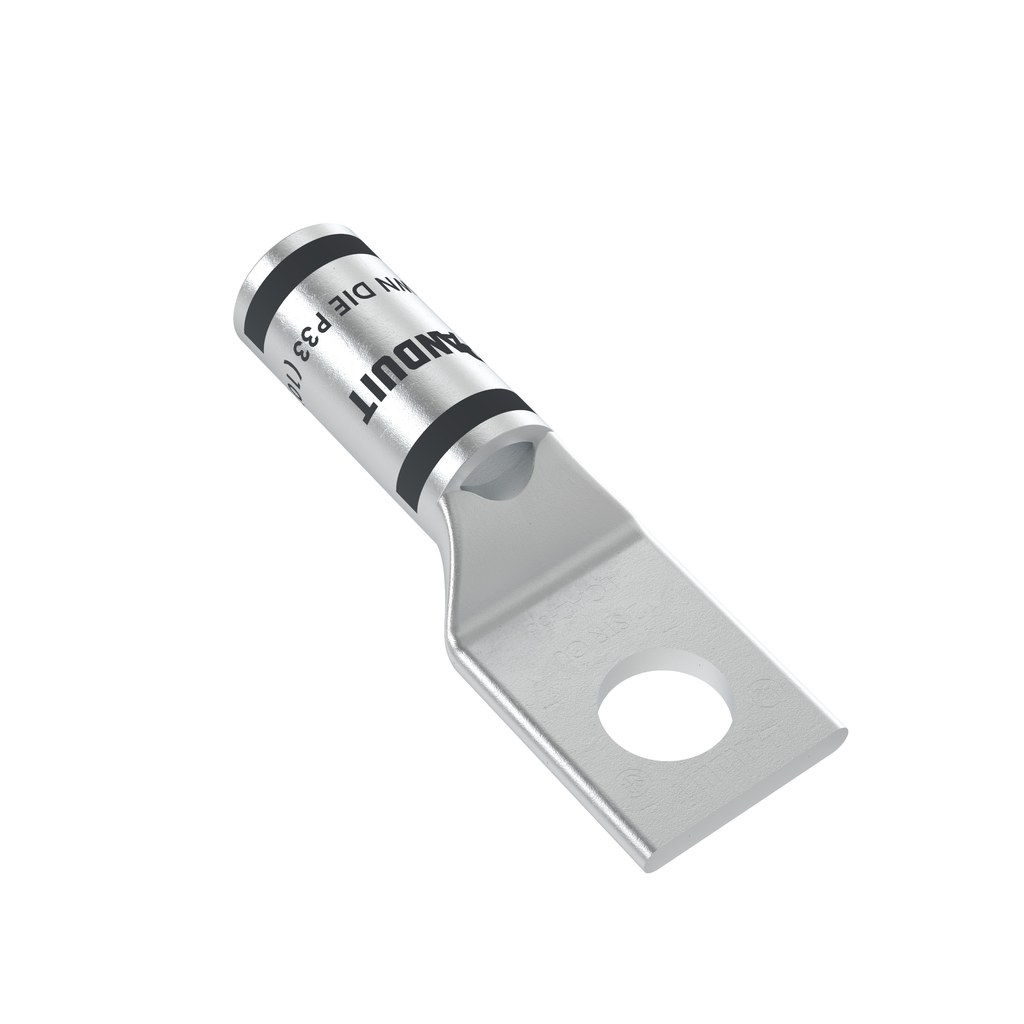

Panduit LCA2-56-Q Compression Lug, 1-Hole, Copper, 2 AWG, 5/16" Stud Hole, Brown- Pack of 5
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 2 |
| Angle | Straight |
| Approvals | CSA, UL |
| ARRA Compliant | Y |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.4 |
| Barrel Type | Standard Barrel with In. |
| Base Material | Copper |
| Base Product Number | LCA2 |
| Brand | Panduit, Pan-Lug? |
| Burndy Die Index Number | 10 |
| Buy American Compliant | Y |
| Cable Size | 2 AWG |
| California Pro65 Cancer | No |
| Catalog Number | LCA2-56-Q |
| Category | Connectors, Interconnec. |
| Color | Color, Brown |
| Color Code | Brown |
| Color Family | Brown |
| Connector Type | Standard Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper, Seamless Copper |
| Contact Plating | Electro-Tin |
| Copper Code Conductor S. | 2 |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | Mexico |
| Country of Origin 2Digit | MX |
| Diameter - Barrel ID | 0.310" (7.87mm) |
| Diameter - Barrel OD | 0.420" (10.67mm) |
| Diameter - Ring ID | 0.340" (8.64mm) |
| Die Color | Brown |
| Die Type | P33 |
| EAN | 00074983900169 |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Finish/Coating | Tin-Plated |
| Gross Weight | 1.01 lbs |
| GTIN | 00074983900169 |
| GTIN Package | 00074983900169 |
| Hazardous Material Flag | N |
| Hole Size | 5?16 |
| Inside Diameter (In.) | 0.31 |
| Inside Diameter (mm) | 7.87 |
| Insulation | Non-Insulated |
| Insulation Type | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCA2-56-Q |
| Item Type | Copper Compression Conn. |
| Lead Content Indicator | N |
| Length | Length, 1.9" |
| Length - Overall | 1.900" (48.26mm) |
| Lug Type | 1 Stud Hole Lug |
| Lug Wire Size | 2 AWG |
| Made in USA | No |
| Manufacturer | Panduit |
| Manufacturer Part Number | LCA2-56-Q |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 2 AWG |
| Maximum Voltage (kV) | 35 |
| Mercury Content Indicat. | No |
| Mfr | Panduit Corp |
| Min Conductor Range | 2 AWG |
| Min Order Qty | 50 |
| Min. Order UOM | Piece |
| Mounting | 15/16, 1-Hole |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0.035 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Outer Diameter | 0.42 in. |
| Outer Diameter (In.) | 0.42 |
| Outer Diameter (mm) | 10.6 |
| Overall Length | 1.9 " |
| Overall Length (In.) | 1.9 |
| Overall Length (mm) | 48.3 |
| Overall Width | 0.66 " |
| Package | Bulk |
| Package Quantity | 25 |
| Pallet Quantity | 0 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 0.0000 |
| Panduit Die Index Number | P33 |
| Part Status | Active |
| Product Segment | IEI |
| Product Series | Pan-Lug Compression |
| Product Type | Copper Compression Conn. |
| REACH Status | False |
| Restricted Use of Hazar. | N |
| RoHS Compliant | Compliant, Yes |
| Series | Pan-Lug?, Pan-Lug LCA S. |
| Size | #2 AWG Code |
| Special Features | Standard Barrel, Consul. |
| Standard | C22.2 No. 65-13, 486A-4. |
| Standard Carton Volume . | 0.0000 |
| Standard Carton Weight . | 0.0000 |
| Standard Package Volume. | 0.0184 |
| Standard Package Weight. | 1.0100 |
| Standards Met | C22.2 No. 65-13, 486A-4. |
| Std Ctn Qty | 0 |
| Std Package Height In | 3.4 |
| Std Package Height MM | 86.36 |
| Std Package Length In | 4.7 |
| Std Package Length MM | 119.38 |
| Std Package Width In | 3.35 |
| Std Package Width MM | 85.09 |
| Std. Pkg. Qty. | 25 |
| Std. Pkg. UOM | Piece |
| Strip Length | 15?16" |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 7.9 |
| Stud Size | Stud Size, 5/16 ", 4469. |
| Stud/Tab Size | 5/16 Stud |
| Style | One-Hole |
| Sub Brand | Pan-Lug, Pan-Lug? |
| T & B Die Index Number | 10 |
| Tab Thickness | 0.100" (2.54mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel, Crimp |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.1 |
| Tongue Thickness (mm) | 2.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.66 |
| Tongue Width (mm) | 16.8 |
| Type | Compression Lug, 1 Hole |
| UL Temperature Rating (. | 90 |
| UNSPSC | 39121405 |
| UOM EA PK | PK |
| UPC | 07498390016, 0749839001. |
| UPC Code | 074983900169 |
| Voltage Rating | 35kV |
| Volts AC | 600 |
| Width | 0.66" |
| Width - Outer Edges | 0.660" (16.76mm) |
| Wire Gauge | 2 AWG |
| Wire Range | Wire Range |
| Wire Size | 2 AWG |
| Wire Strip Length (In.) | 15/16 |
| Wire Strip Length (mm) | 23.6 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCA2-56-Q | 3.35 | 1 | 5 | | PANDUIT | | 3.35 @ 5 |
 | mecampbell.com | PANLCA2-56-Q | 4.61 | 25 | 5 | 151 | Panduit | | 4.61 @ 25 |
 | mayerelectric.com | PANLCA256Q | 5.04 | 1 | 5 | | PANDUIT | 1.01 | 5.04 @ 5 |
| Digi-Key | 4564340 | 5.31 | 50 | 76 | | Panduit Corp | | 5.31 @ 5 |
 | Newark | 19P7753 | 6.43 | 1 | 41 | | PANDUIT | | 6.43 @ 5 |
| Hotenda | H1650819 | 6.65 | 1 | 5 | | Panduit | | 6.65 @ 5 |
 | Zoro | G0771957 | 7.41 | 2 | 5 | 13 | Panduit | 1.01 | 7.41 @ 5 |
 | Platt.com | 0017828 | 7.92 | 1 | 23 | | Panduit | | 7.92 @ 5 |
 | Galco | LCA2-56-Q-PNDT | 8.08 | 1 | 5 | | Panduit | 1.01 | 8.08 @ 5 |
 | crescentelectric.com | 176612 | 8.46 | 1 | 50 | | Panduit | | 8.46 @ 5 |
| Airline Hydraulics | PANDUIT LCA2-56-Q | 8.96 | 1 | 5 | | Panduit Corp | | 8.96 @ 5 |
| Onlinecomponents.com | LCA2-56-Q | 8.98 | 1 | 6 | | PANDUIT | | 8.98 @ 5 |
 | alldataresource.com | 330333 | 103.81 | 1 | 5 | | Panduit | | 103.81 @ 5 |
 | Carlton Bates Company | 07498390016 | 175.0 | 1 | 5 | | PANDUIT | | 175.0 @ 5 |
 | jensentools.com | 10016325 | 204.29 | 1 | 5 | | Panduit | | 204.29 @ 5 |
| us.rs-online.com | 70044019 | 229.98 | 1 | 5 | | Panduit | | 229.98 @ 5 |
| steinerelectric.com | 7040 | 375.43 | 1 | 5 | | Panduit | | 375.43 @ 5 |
 | gordonelectricsupply.com | LCA2-56-Q | 392.5 | 1 | 5 | 12 | PANDUIT | | 392.5 @ 5 |
 | turtle.com | PAN LCA2-56-Q | 876.28 | 1 | 5 | | Panduit | | 876.28 @ 5 |
| Graybar | 88198134 | 971.2192 | 1 | 5 | | Panduit | | 971.2192 @ 5 |
