mpn:
brand:
manufacturer:
MPN:
Weight:
1.15
Weight:
0.1 LB
Preferred Price:
4.55
Price:
4.55
Min Simple Price:
1.76
Absolute Min Price:
3.61
Min Price:
3.61
Dimensions:
[5.0, 4.0, 4.0]
qty:
39
simpleSku:
OTExMQ:::LCB6-10-L
sku:
OTExMQ::4C:LCB6-10-L@y0
condition:
11
seller:
cbtcompany.com
amzMan:
panduit
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Allowable Gauge Range | 6 |
| Approvals | CSA, UL |
| Base Product Number | LCB6 |
| Brand, Manufacturer | Panduit |
| Brand, Series | Pan-Lug? |
| Cable Size, Max Conductor Range, Min Conductor Range, Wire Gauge | 6 AWG |
| Catalog Number, Item Number, Manufacturer Part Number | LCB6-10-L |
| Category | Connectors, Interconnects |
| Color, Color Code, Color Family, Die Color | Blue |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Long Barrel |
| Contact Finish | Electro-Tin |
| Contact Material, Material, Material/Composition | Copper |
| Country of Origin | MX - Mexico |
| Country of Origin, Country of Origin (subject to change) | Mexico |
| Diameter - Barrel ID | 0.220" (5.59mm) |
| Diameter - Barrel OD | 0.310" (7.87mm) |
| Diameter - Ring ID | 0.200" (5.08mm) |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-Lug Compression Series |
| Features | - |
| Finish | Tin-Plated |
| Gross Weight | 1.15 lbs |
| GTIN | 00074983382361 |
| Insulation | Non-Insulated |

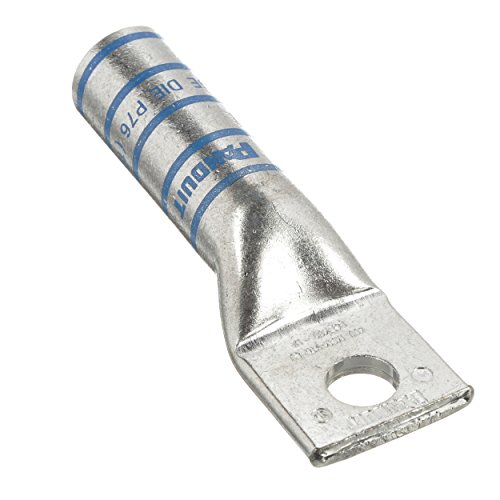

| Item | Lug Compression Connector |
| Item Type | Copper Compression Connectors - Lugs |
| Length | 1.84" |
| Length - Overall | 1.840" (46.74mm) |
| Made in USA | No |
| Material | Tin-Plated Copper |
| Mfr | Panduit Corp |
| Mounting | 1.13, 1-Hole |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors, Number of Holes | 1 |
| Package | Bulk |
| Part Status | Active |
| Product Series | Pan-Lug Compression |
| RoHS Compliant | Yes |
| Size | #6 AWG Code |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| Stud Size | #10, 0.19 |
| Stud/Tab Size | 10 Stud |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.090" (2.29mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| UNSPSC | 39121405 |
| UPC | 074983382361 |
| Width | 0.45" |
| Width - Outer Edges | 0.450" (11.43mm) |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | cbtcompany.com | LCB6-10-L | 1.76 | 1.76 | 1 | 56 | PANDUIT | 1.76 @ Qty: 1+ | ||
 | alldataresource.com | LCB6-10-L | 2.67 | 2.67 | 1 | 56 | Panduit | 2.67 @ Qty: 1+ | ||
| Digi-Key | 4565130 | 2.72 | 545.632 | 500 | 39 | Panduit Corp | 2.72 @ Qty: 1+ | |||
| Verical | LCB6-10-L | 2.9 | 26.1 | In Stock | 84 | Panduit | 2.9 @ In Stock | |||
| Onlinecomponents.com | LCB6-10-L | 3.22 | 3.22 | 1 | 56 | Panduit | 3.22 @ Qty: 1+ | |||
 | Newark | 72AC7914 | 3.38 | 3.38 | 1 | 29 | PANDUIT | 3.38 @ Qty: 1+ | ||
 | Zoro | G0774790 | 3.56 | 6.408 | 3 | 56 | 15 | Panduit | 1.15 | 3.56 @ Qty: 3+ |
| Mouser | 644-LCB6-10-L | 3.59 | 3.59 | 1 | 90 | Panduit | 3.59 @ Qty: 1+ | |||
 | Galco | LCB6-10-L-PNDT | 3.9 | 80.34 | 50 | 29 | Panduit | 1.15 | 3.9 @ Qty: 50+ | |
 | Platt.com | 0688150 | 4.16 | 4.16 | 1 | 56 | Panduit | 4.16 @ Qty: 1+ | ||
 | crescentelectric.com | 1274808 | 4.45 | 4.45 | 1 | 56 | Panduit | 4.45 @ Qty: 1+ | ||
| Airline Hydraulics | PANDUIT LCB6-10-L | 4.71 | 4.71 | 1 | 56 | Panduit Corp | 4.71 @ Qty: 1+ | |||
 | gordonelectricsupply.com | LCB6-10-L | 205.5 | 205.5 | 1 | 56 | 12 | PANDUIT | 205.5 @ Qty: 1+ | |
 | turtle.com | PAN LCB6-10-L | 460.34 | 460.34 | 1 | 56 | Panduit | 460.34 @ Qty: 1+ | ||
| steinerelectric.com | 162917 | 460.71 | 460.71 | 1 | 56 | Panduit | 460.71 @ Qty: 1+ | |||
| Graybar | 22123703 | 514.8192 | 514.8192 | 1 | 56 | Panduit | 514.8192 @ Qty: 1+ |
