- mpnLCBX1-38-X
- brandname: Panduit
- manufacturername: Panduit

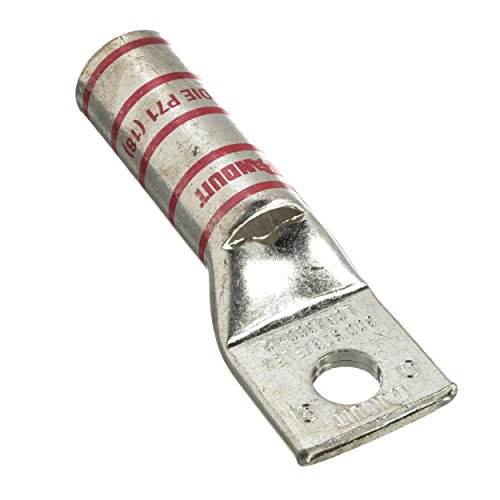

Panduit LCBX1-38-X Copper Compression Lug, 1 Hole, #1 AWG Flex, Long Barrel, 3/8-Inch Stud


- Brand: Panduit
- PartNumber: LCBX1-38-X
- Model: LCBX1-38-X
- Color: Green
- Size: 3/8-Inch Stud Hole
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
Key | Value |
---|
Allowable Gauge Range | 1 |
Approvals | CSA, UL |
Base Product Number | LCBX |
Brand | Panduit |
Cable Size | 1 AWG |
Catalog Number | LCBX1-38-X |
Category | Connectors, Interconnec. |
Color | Green |
Color Code | Green |
Connection Material | Tin |
Connection Type | 1 x Terminal |
Connector Type | Long Barrel |
Contact Finish | Electro-Tin |
Contact Material | Copper |
Country of Origin | Mexico |
Country of Origin (subj. | Mexico |
Description | CONN TERM RECT TONG 1 A. |
Detailed Description | Terminal Connector Rect. |
Diameter - Barrel ID | 0.390" (9.91mm) |
Diameter - Barrel OD | 0.520" (13.21mm) |
Diameter - Ring ID | 0.410" (10.41mm) |
Digi-Key Part Number | 298-22056-ND |
Family Series | Panduit Terminals, Pan-. |
Features | - |
Gross Weight | 0.95 lbs |
GTIN | 00074983436767 |
Insulation | Non-Insulated |
Item | Lug Compression Connect. |
Item Number | LCBX1-38-X |
Item Type | Copper Compression Conn. |
Length | 2.57" |
Length - Overall | 2.570" (65.28mm) |
Made in USA | No |
Manufacturer | Panduit Corp, Panduit |
Manufacturer Part Number | LCBX1-38-X |
Manufacturer Product Nu. | LCBX1-38-X |
Manufacturer Standard L. | 2 Weeks |
Material | Copper, Tin-Plated Copp. |
Material/Composition | Copper |
Max Conductor Range | 1 AWG |
Mfr | Panduit Corp |
Min Conductor Range | 1 AWG |
Mounting | 1.5, 1-Hole |
Mounting Type | Free Hanging (In-Line) |
Net Weight | 0 lbs |
Number of Conductors | 1 |
Number of Holes | 1 |
Package | Bulk |
Product Series | Pan-Lug Compression |
Product Status | Active |
RoHS Compliant | Yes |
Series | Pan-Lug? |
Size | #1 AWG Class B, C, G, H. |
Special Features | Consult cable manufactu. |
Stud Size | 3/8 in, 44628 |
Stud/Tab Size | 3/8 Stud |
Sub Brand | Pan-Lug |
Tab Thickness | 0.120" (3.05mm) |
Terminal Style | Single Stud Hole |
Terminal Type | Rectangular Tongue |
Termination | Crimp, Barrel |
UPC | 074983436767 |
Width | 0.76" |
Width - Outer Edges | 0.760" (19.30mm) |
Wire Gauge | 1 AWG |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | cbtcompany.com | LCBX1-38-X | 4.69 | 1 | In Stock | | PANDUIT | | 4.69 @ 1 |
  | alldataresource.com | LCBX1-38-X | 6.83 | 1 | In Stock | | Panduit | | 6.83 @ 1 |
  | Zoro | G0775168 | 8.25 | 1 | In Stock | 15 | Panduit | 0.95 | 8.25 @ 1 |
  | Digi-Key | 4565179 | 8.45 | 1 | 8 | | Panduit Corp | | 8.45 @ 1 |
| Onlinecomponents.com | LCBX1-38-X | 8.58 | 1 | In Stock | | Panduit | | 8.58 @ 1 |
  | Galco | LCBX1-38-X-PNDT | 10.41 | 20 | In Stock | | Panduit | 0.95 | 10.41 @ 20 |
  | Platt.com | 0688296 | 11.09 | 1 | In Stock | | Panduit | | 11.09 @ 1 |
  | crescentelectric.com | 279207 | 11.86 | 1 | In Stock | | Panduit | | 11.86 @ 1 |
  | Radwell | LCBX1-38-X | 12.0 | 1 | 49 | | PANDUIT | | 12.0 @ 1 |
| Airline Hydraulics | PANDUIT LCBX1-38-X | 12.55 | 1 | In Stock | | Panduit Corp | | 12.55 @ 1 |
| Newark | 08J1783 | 89.07 | 1 | In Stock | | PANDUIT | | 89.07 @ 1 |
  | gordonelectricsupply.com | LCBX1-38-X | 219.0 | 1 | In Stock | 12 | PANDUIT | | 219.0 @ 1 |
  | turtle.com | PAN LCBX1-38-X | 1227.47 | 1 | In Stock | | Panduit | | 1227.47 @ 1 |
