Panduit LCC1/0-38DWF-X

B00B5NZ88A

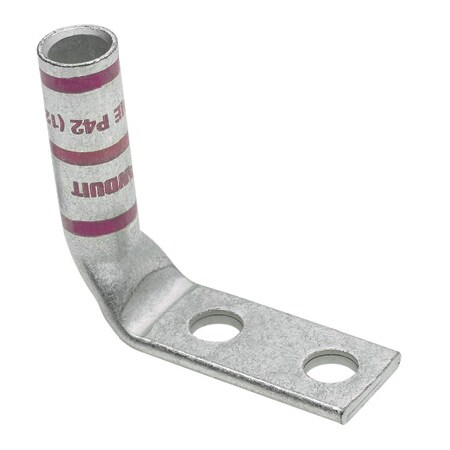

Panduit LCC1/0-38DWF-X Code Conductor Lug, Two Hole, Long Barrel With Window, 90 Degree Angle, 1/0 AWG Copper Conductor Size, 3/8" Stud Size, Pink Color Code, 1.00" Stud Hole Spacing, 1-1/2" Wire Strip Length, 0.12" Tongue Thickness, 0.76" Tongue Width, 1.44" Neck Length, 2.58" Overall Length

Panduit LCC1/0-38DWF-X Code Conductor Lug, Two Hole, Long Barrel With Window, 90 Degree Angle, 1/0 AWG Copper Conductor Size, 3/8" Stud Size, Pink Color Code, 1.00" Stud Hole Spacing, 1-1/2" Wire Strip Length, 0.12" Tongue Thickness, 0.76" Tongue Width, 1.44" Neck Length, 2.58" Overall Lengthzoom

Attributes

Key Value
ApprovalsCSA, UL
Base Product NumberLCC1
CategoryConnectors, Interconnec.
ColorPink
Color CodePink
Contact FinishElectro-Tin
Contact MaterialCopper
Country of Origin (subj.Mexico
Diameter - Barrel ID0.390" (9.91mm)
Diameter - Barrel OD0.520" (13.21mm)
Diameter - Ring ID0.410" (10.41mm)
Family SeriesPanduit Terminals, Pan-.
Features-
Gross Weight1.15 lbs
InsulationNon-Insulated
Item NumberLCC1/0-38DWF-X
Length - Overall-
ManufacturerPanduit
Manufacturer Part NumberLCC1/0-38DWF-X
Material/CompositionCopper
Max Conductor Range1/0 AWG
MfrPanduit Corp
Min Conductor Range1/0 AWG
Mounting TypeFree Hanging (In-Line),.
Net Weight0 lbs
Number of Conductors1
Number of Holes2
PackageBulk
Part StatusObsolete
Product SeriesPan-Lug Compression
RoHS CompliantYes
SeriesPan-Lug?
Stud/Tab Size3/8 Stud
Tab Thickness0.120" (3.05mm)
Terminal StyleTwo Stud Holes
Terminal TypeRectangular Tongue
TerminationCrimp, Barrel
Width - Outer Edges0.760" (19.30mm)
Wire Gauge1/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key456528613.67110Panduit Corp13.67 @ 1
RadwellLCC1038DWFX17.04100In StockPANDUIT17.04 @ 100
Onlinecomponents.comLCC1/0-38DWF-X18.411In StockPanduit18.41 @ 1
thumbzoomGalcoLCC1/0-38DWF-X-PNDT18.411In StockPanduit1.1518.41 @ 1
thumbzoomgordonelectricsupply.comLCC1/0-38DWF-X19.351In Stock12PANDUIT19.35 @ 1
thumbzoomZoroG277908922.41In Stock25Panduit22.4 @ 1
