- mpnLCC400-12-6
- brandname: Panduit
- manufacturername: Panduit

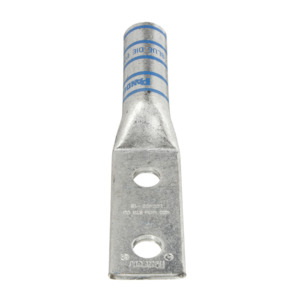

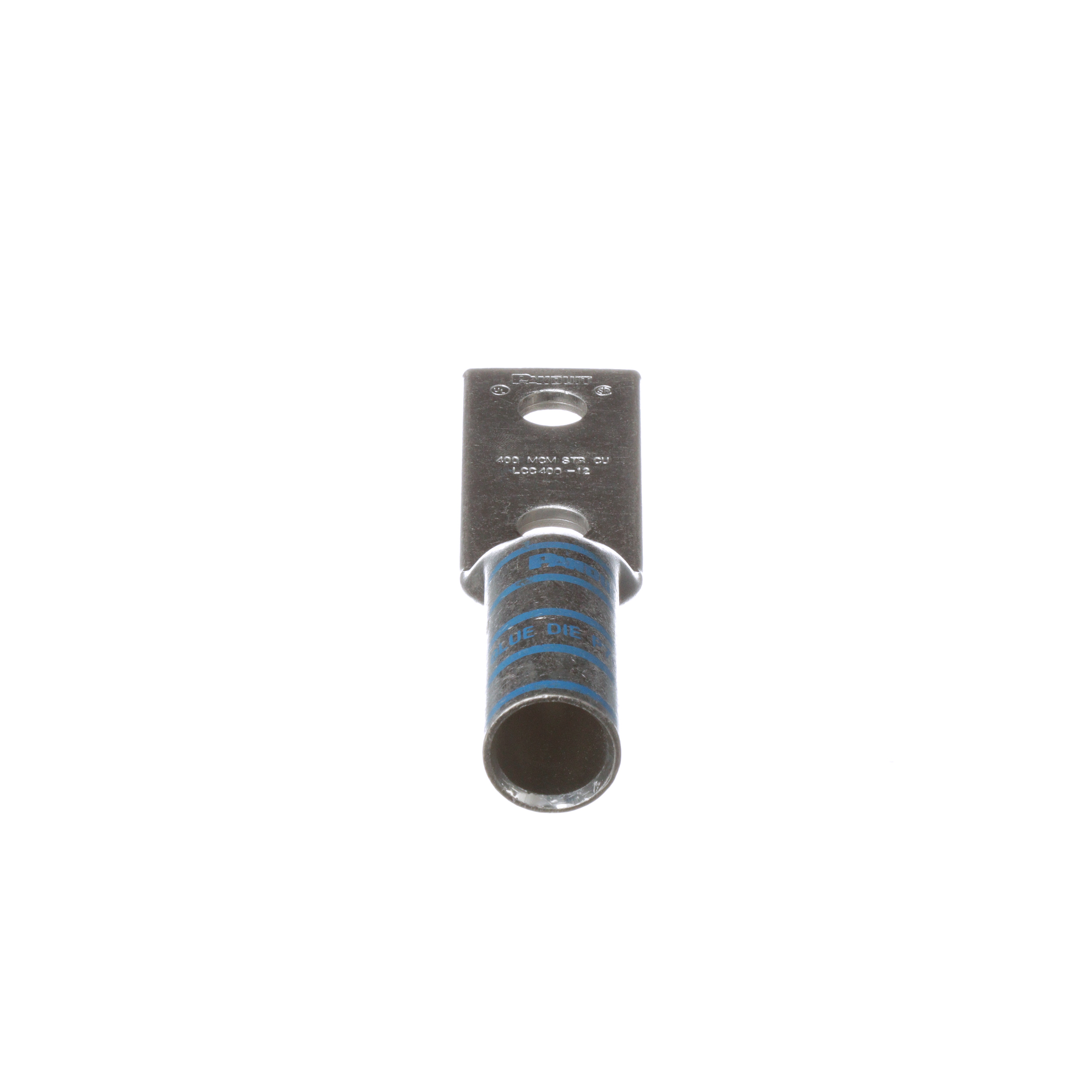

Panduit LCC400-12-6 Code Conductor Copper Compression Lug, 2 Hole, 400 kcmil, 1/2-Inch Stud, 1.75-Inch Hole Spacing
- Brand: Panduit
- PartNumber: LCC400-12-6
- Model: LCC400-12-6
- Color: Blue
- Size: 1/2-Inch Stud Hole, 1.75-Inch Hole Spacing
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 400 |
| Approvals | CSA, UL |
| Base Product Number | LCC400 |
| Brand | Panduit, Pan-Lug? |
| Cable Size | 400 kcmil |
| Catalog Number | LCC400-12-6 |
| Category | Connectors, Interconnec. |
| Color | Blue |
| Color Code | Blue |
| Color Family | Blue |
| Connector Type | Long Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | Mexico |
| Diameter - Barrel ID | 0.760" (19.30mm) |
| Diameter - Barrel OD | 0.950" (24.13mm) |
| Diameter - Ring ID | 0.530" (13.46mm) |
| Die Color | Blue |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Gross Weight | 2.95 lbs |
| GTIN | 00074983902606 |
| Insulation | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCC400-12-6 |
| Item Type | Copper Compression Conn. |
| Length | 6.1" |
| Length - Overall | 6.100" (154.94mm) |
| Lug Wire Size | 400 kcmil |
| Made in USA | No |
| Manufacturer | Panduit |
| Manufacturer Part Number | LCC400-12-6 |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 400 kcmil |
| Mfr | Panduit Corp |
| Min Conductor Range | 400 kcmil |
| Mounting | 39481, 2-Hole |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 2 |
| Outer Diameter | 0.95 in. |
| Package | Bulk |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Pan-Lug? |
| Size | 400 kcmil Code |
| Special Features | Consult cable manufactu. |
| Standard | C22.2 No. 65-13, 486A-4. |
| Stud Hole Spacing | 1.75 in. |
| Stud Size | 1/2 in, 44563 |
| Stud/Tab Size | 1/2 Stud |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.180" (4.57mm) |
| Terminal Style | Two Stud Holes |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| UNSPSC | 39121405 |
| UPC | 074983902606 |
| UPC Code | 074983902606 |
| Width | 1.39" |
| Width - Outer Edges | 1.390" (35.31mm) |
| Wire Gauge | 400MCM (kcmil) |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCC400-12-6 | 14.63 | 1 | In Stock | | PANDUIT | | 14.63 @ 1 |
 | French Gerleman | PANDLCC400126 | 17.07 | 1 | In Stock | | Panduit | | 17.07 @ 1 |
 | alldataresource.com | PAN-LCC400-12-6 | 18.94 | 1 | In Stock | | Panduit | | 18.94 @ 1 |
 | Newark | 52AH0909 | 28.08 | 1 | 367 | | PANDUIT | | 28.08 @ 1 |
| Onlinecomponents.com | LCC400-12-6 | 28.92 | 1 | In Stock | | Panduit | | 28.92 @ 1 |
 | Zoro | G0412655 | 30.86 | 1 | In Stock | 15 | Panduit | 2.96 | 30.86 @ 1 |
| Digi-Key | 4565570 | 31.49 | 1 | 138 | | Panduit Corp | | 31.49 @ 1 |
 | Galco | LCC400-12-6-PNDT | 32.51 | 6 | In Stock | | Panduit | 2.95 | 32.51 @ 6 |
 | Platt.com | 0691247 | 34.59 | 1 | In Stock | | Panduit | | 34.59 @ 1 |
| crescentelectric.com | 445835 | 37.01 | 1 | In Stock | | Panduit | | 37.01 @ 1 |
| us.rs-online.com | 71263536 | 38.29 | 6 | In Stock | | Panduit | | 38.29 @ 6 |
| Airline Hydraulics | PANDUIT LCC400-12-6 | 39.18 | 1 | In Stock | | Panduit Corp | | 39.18 @ 1 |
 | gordonelectricsupply.com | LCC400-12-6 | 204.9 | 1 | In Stock | 12 | PANDUIT | | 204.9 @ 1 |
 | jensentools.com | 10016397 | 214.45 | 1 | In Stock | | Panduit | | 214.45 @ 1 |
 | turtle.com | PAN LCC400-12-6 | 3831.08 | 1 | In Stock | | Panduit | | 3831.08 @ 1 |
| Graybar | 88198211 | 4246.1664 | 1 | In Stock | | Panduit | | 4246.1664 @ 1 |
