Panduit LCDX500-38D-6

B00B5ODQOW

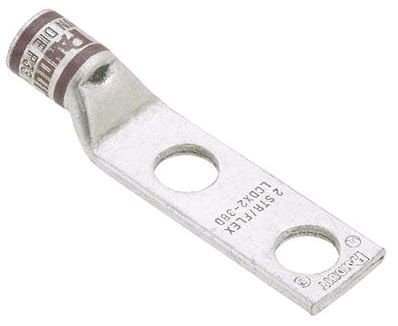

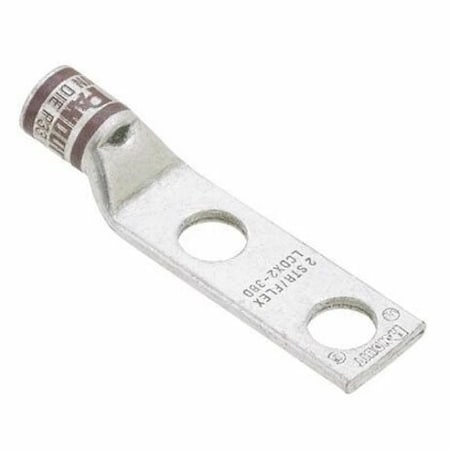

Panduit LCDX500-38D-6 Flex Conductor Lug, Two Hole, Standard Barrel With Window, 3/8" Stud Hole Size, 1.00" Stud Hole Spacing Width, Pink, 500 kcmil Class G/H/I/K/M Conductor Size, 535.3 kcmil Diesel Locomotive Conductor Size, 1-9/16" Wire Strip Length, 0.26" Tongue Thickness, 1.89" Tongue Width, 1.48" Neck Length, 4.08" Overall Length

Panduit LCDX500-38D-6 Flex Conductor Lug, Two Hole, Standard Barrel With Window, 3/8" Stud Hole Size, 1.00" Stud Hole Spacing Width, Pink, 500 kcmil Class G/H/I/K/M Conductor Size, 535.3 kcmil Diesel Locomotive Conductor Size, 1-9/16" Wire Strip Length, 0.26" Tongue Thickness, 1.89" Tongue Width, 1.48" Neck Length, 4.08" Overall Lengthzoom

Attributes

Key Value
Allowable Gauge Range500
ApprovalsCSA, UL
Base Product NumberLCDX
Cable Size500 kcmil
CategoryConnectors, Interconnec.
ColorPink
Color CodePink
Connection MaterialTin
Connection Type1 x Terminal
Connector TypeStandard Barrel
Contact FinishElectro-Tin
Contact MaterialCopper
Country of Origin (subj.Mexico
DescriptionCONN TERM RECT TONG 500.
Detailed DescriptionTerminal Connector Rect.
Diameter - Barrel ID-
Diameter - Barrel OD-
Diameter - Ring ID-
Digi-Key Part Number298-22328-ND
Family SeriesPanduit Terminals, Pan-.
Features-
Gross Weight4.15 lbs
InsulationNon-Insulated
ItemLug Compression Connect.
Item NumberLCDX500-38D-6
Length4.08"
Length - Overall4.080" (103.63mm)
ManufacturerPanduit Corp, Panduit
Manufacturer Part NumberLCDX500-38D-6
Manufacturer Product Nu.LCDX500-38D-6
Manufacturer Standard L.2 Weeks
MaterialCopper, Tin-Plated Copp.
Material/CompositionCopper
Max Conductor Range500 kcmil
MfrPanduit Corp
Min Conductor Range500 kcmil
Mounting2-Hole
Mounting TypeFree Hanging (In-Line)
Net Weight0 lbs
Number of Conductors1
Number of Holes2
PackageBulk
Product SeriesPan-Lug Compression
Product StatusActive
RoHS CompliantYes
SeriesPan-Lug?
Stud Size3/8 in
Stud/Tab Size3/8 Stud
Tab Thickness0.260" (6.60mm)
Terminal StyleTwo Stud Holes
Terminal TypeRectangular Tongue
TerminationCrimp, Barrel
Width1.89"
Width - Outer Edges1.890" (48.01mm)
Wire Gauge500MCM (kcmil)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcbtcompany.comLCDX500-38D-626.341In StockPANDUIT26.34 @ 1
thumbzoomalldataresource.comLCDX500-38D-635.381In StockPanduit35.38 @ 1
Onlinecomponents.comLCDX500-38D-645.831In StockPanduit45.83 @ 1
thumbzoomDigi-Key456653550.81In StockPanduit Corp50.8 @ 1
Newark72P188255.061In StockPANDUIT55.06 @ 1
thumbzoomZoroG042005055.571In Stock15Panduit4.1555.57 @ 1
thumbzoomPlatt.com061302062.281In StockPanduit62.28 @ 1
thumbzoomGalcoLCDX500-38D-6-PNDT64.396In StockPanduit4.1564.39 @ 6
Airline HydraulicsPANDUIT LCDX500-38D-670.551In StockPanduit Corp70.55 @ 1
thumbzoomgordonelectricsupply.comLCDX500-38D-6369.01In Stock12PANDUIT369.0 @ 1
steinerelectric.com4157086870.591In StockPanduit6870.59 @ 1
thumbzoomturtle.comPAN LCDX500-38D-66897.531In StockPanduit6897.53 @ 1
