| ARRA Compliant | Y |
| Barrel Length (In.) | 0.42 |
| Barrel Length (mm) | 10.7 |
| Barrel Type | Standard Barrel with Inspection Window |
| Base Material | Copper |
| Burndy Die Index Number | 49 |
| Buy American Compliant | Y |
| California Pro65 Cancer | No |
| Color Code | Red |
| Copper Code Conductor Size (AWG) | 8 |
| Country of Origin 2Digit | MX |
| DLO Copper Flex Conductor Size (AWG) | 8 |
| EAN | 00074983423538 |
| Finish/Coating | Tin-Plated |
| GTIN Package | 00074983423538 |
| Hazardous Material Flag | N |
| Inside Diameter (In.) | 0.18 |
| Inside Diameter (mm) | 4.57 |
| Lead Content Indicator | N |

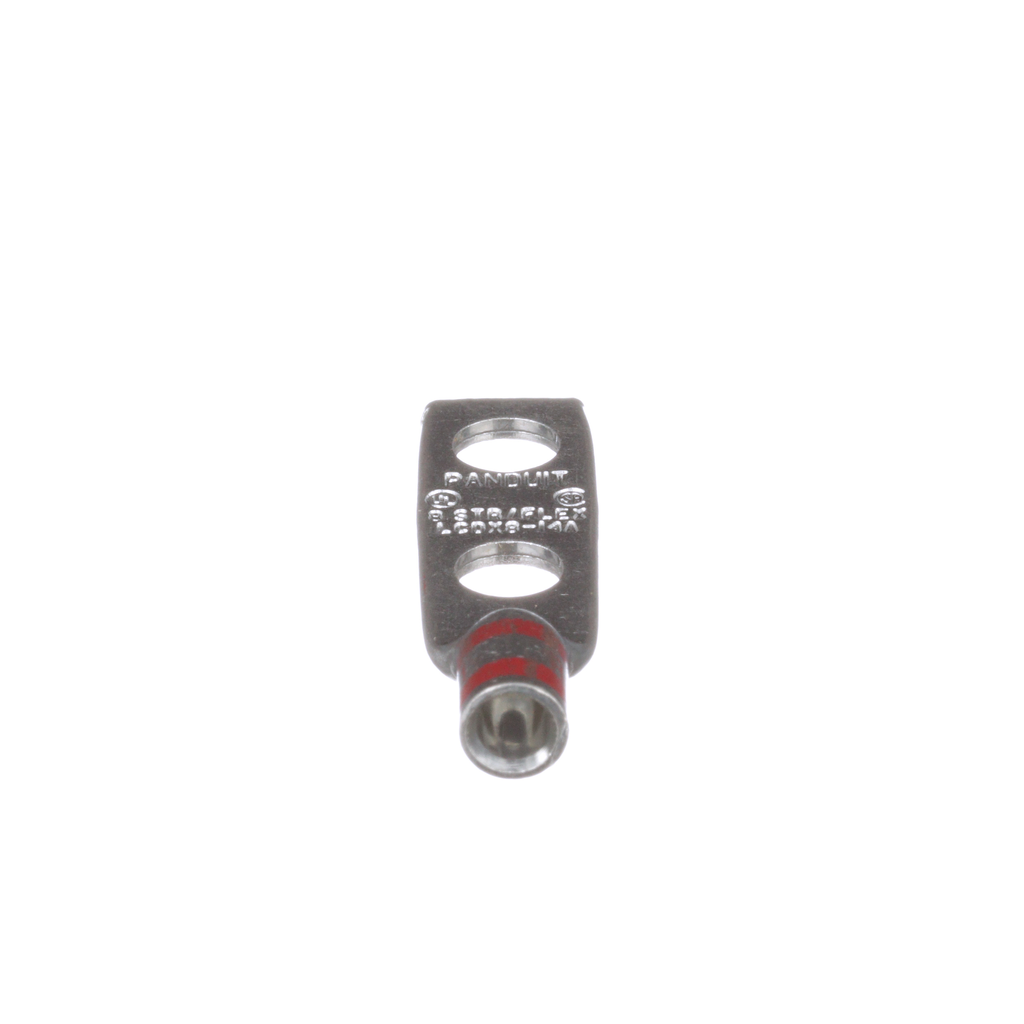

| Lug Type | 2 Stud Hole Lug |
| Maximum Voltage (kV) | 35 |
| Mercury Content Indicator | No |
| Min Order Qty | 50 |
| Min. Order UOM | Piece |
| Outer Diameter (In.) | 0.27 |
| Outer Diameter (mm) | 6.85 |
| Overall Length (In.) | 1.83 |
| Overall Length (mm) | 46.5 |
| Pallet Quantity | 0 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 0.0000 |
| Panduit Die Index Number | P21 |
| Product Segment | IEI |
| Product Type | Copper Compression Connectors - Lugs |
| REACH Status | False |
| Restricted Use of Hazardous Substances | N |
| RoHS Compliant | Compliant |
| Standard Carton Volume Ft3 | 0.0000 |
| Standard Carton Weight Pounds | 0.0000 |
| Standard Package Volume Ft3 | 0.0184 |
| Standard Package Weight Pounds | 0.8700 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Std Ctn Qty | 0 |
| Std Package Height In | 3.6 |
| Std Package Height MM | 91.44 |
| Std Package Length In | 4.9 |
| Std Package Length MM | 124.46 |
| Std Package Width In | 3.5 |
| Std Package Width MM | 88.9 |
| Std. Pkg. Qty. | 50 |
| Std. Pkg. UOM | Piece |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Sub Brand | Pan-Lug? |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.07 |
| Tongue Thickness (mm) | 1.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| UL Temperature Rating (?C) | 90 |
| UOM EA PK | PK |
| UPC | 07498342353 |
| Wire Strip Length (In.) | 1/2 |
| Wire Strip Length (mm) | 13 |
