| Allowable Gauge Range | 12 - 10 |
| Angle | Straight |
| Approval | Approval |
| Approvals | CSA, UL |
| AWG Range, Stud Size | #10 |
| Base Product Number | P10 |
| Brand, Series | Pan-Term? |
| Category | Connectors, Interconnects |
| Color, Insulation Diameter, Material - Insulation | - |
| Connection Material | Tin-Plated Copper |
| Contact Finish, Contact Plating, Plating Material | Nickel |
| Contact Material, Material, Terminal Material | Copper |
| Contact material: | Contact material: |
| Contact Plating | Contact Plating |
| Country of Origin | MX - Mexico |
| Country of Origin (subject to change) | Mexico |
| Description | CONN RING CIRC 10-12AWG #10 |

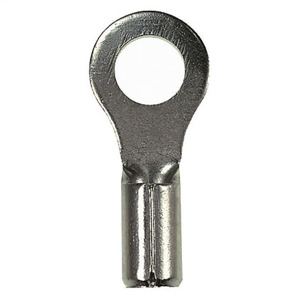

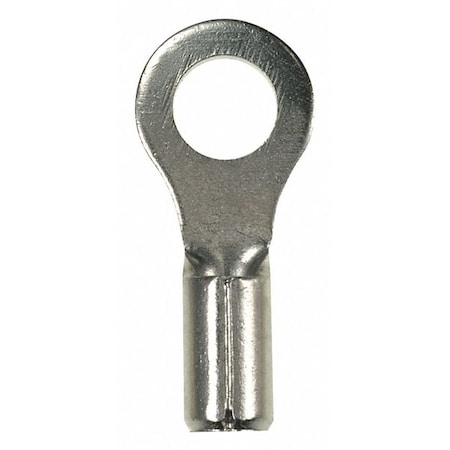

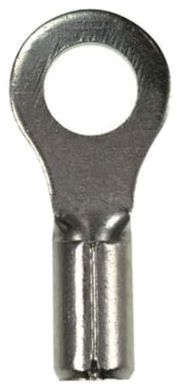

| Detailed Description | Ring Terminal Connector 10 Stud Circular 10-12 AWG Crimp |
| Digi-Key Part Number | 298-15098-ND |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-Term Terminals Series |
| Features | Brazed Seam, Serrated Termination |
| Finish | Nickel-Plated |
| Gross Weight, Net Weight | 0.005 lbs |
| Insulated, Insulation, Insulation Type | Non-Insulated |
| Insulation | Insulation |
| Insulation Color | Bare, Insulation Color |
| Item Number, Manufacturer Part Number, Manufacturer Product Number | P10-10RHT6-L |
| Item, Type | Ring Terminal |
| Length - Overall | 0.810" (20.57mm) |
| Manufacturer | Panduit |
| Manufacturer Standard Lead Time | 3 Weeks |
| Manufacturer, Mfr | Panduit Corp |
| Max Temp | 650 ?F |
| Max. Voltage, Rated Voltage | 2000V |
| Mounting Type | Free Hanging (In-Line) |
| Outer Diameter | 0.22 in. |
| Overall Length | 0.81 ", Overall Length |
| Overall Width | 0.38 " |
| Package | Bulk |
| Package Quantity | 50 |
| Packaging | 50 Per Bottle |
| Product Series | Pan-Term Terminals |
| Product Status | Active |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Series | Pan-Term P10 Series |
| Special Features | Brazed Seam, Barrel |
| Stud Size | Stud Size, M5 (#10) |
| Stud/Tab Size | 10 Stud |
| Temperature Rating | Temperature Rating |
| Terminal Type | Ring, Terminal Type, Circular |
| Termination | Crimp |
| Thickness | 0.040" (1.02mm) |
| Type | Ring Tongue |
| UNSPSC | 39121409 |
| UPC Code | 074983805433 |
| Use With | CT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570) |
| Volts | 2,000 V |
| Width | 0.38 in. |
| Width - Outer Edges | 0.380" (9.65mm) |
| Wire Gauge, Wire Size | 10-12 AWG |
| Wire Range | 12 to 10 AWG, Wire Range |
| Wire Size | 12-10 AWG |
| Wire Size (AWG) | 10 AWG, 11 AWG, 12 AWG |
| Wire Strip Length | 0.281 " |
