- mpnP10-56R-D
- brandname: PANDUIT
- manufacturername: PANDUIT

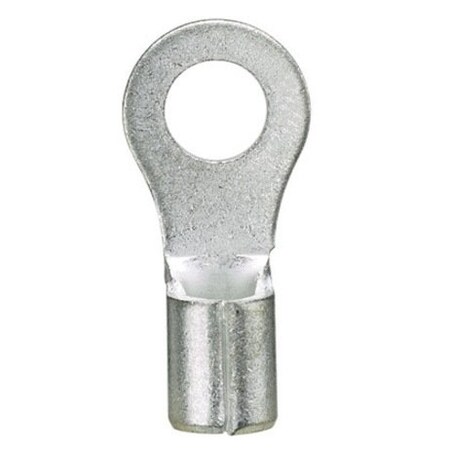

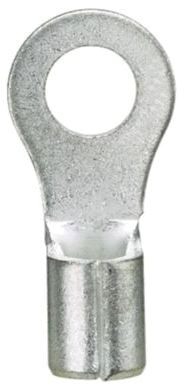

Panduit P10-56R-D 12/10 NON-INSULATED 5/16 RING (package of 100)
- Brand: Panduit
- PartNumber: P10-56R-D
- Model: P10-56R-D
- PackageQuantity: 100
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 12 - 10 |
| Alternate Part No. | 644-P10-56R-D |
| Approvals | CSA, UL |
| AWG Range | #10 |
| Base Product Number | P10 |
| Brand | Pan-Term?, Panduit |
| Category | Connectors, Interconnec. |
| Color | - |
| Color Family | Metallic |
| Contact Finish | Tin |
| Contact Material | Copper |
| Contact Plating | Tin |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Mexico |
| Description | CONN RING CIRC 10-12AWG. |
| Detailed Description | Ring Terminal Connector. |
| Digi-Key Part Number | 298-10625-ND |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | Brazed Seam, Serrated T. |
| Finish | Tin-Plated |
| Gender | Female |
| Gross Weight | 0 lbs |
| Insulated | Non-Insulated |
| Insulation | Non-Insulated, Not Insu. |
| Insulation Diameter | - |
| Item | Ring,Non-Ins,12-10 Awg,. |
| Item Number | P10-56R-D |
| Length | 24.1 mm |
| Length - Overall | 0.950" (24.13mm) |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part No. | P10-56R-D |
| Manufacturer Part Number | P10-56R-D |
| Manufacturer Product Nu. | P10-56R-D |
| Manufacturer Standard L. | 2 Weeks |
| Material | Copper |
| Material - Insulation | - |
| Max Temp | 302 ?F |
| Mfr | Panduit Corp |
| Mounting Angle | Straight |
| Mounting Method | Wire |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Outer Diameter | 0.22 in. |
| Package | Bulk |
| Package Quantity | 500 |
| Plating Material | Tin |
| Product | Ring Terminals |
| Product Category | Terminals |
| Product Series | Pan-Term Terminals |
| Product Status | Active |
| Rated Voltage | 2000V |
| RoHS Compliant | Yes |
| Series | Pan-Term? |
| Size | 5/16 in |
| Stud Size | Stud Size, 5/16 in. |
| Stud/Tab Size | 5/16 Stud, 5/16 (M8) |
| Terminal Material | Copper |
| Terminal Type | Ring, Circular |
| Termination | Crimp |
| Termination Style | Crimp |
| Thickness | 0.040" (1.02mm) |
| Type | Terminals, Ring Terminal |
| Unit Weight | 1 kg |
| UNSPSC | 39121409 |
| UPC Code | 074983802371 |
| Use With | CT-100, CT-200, CT-1570. |
| Voltage Rating | Voltage Rating |
| Volts | 2,000 V |
| Width | 0.52 in., 0.52 in |
| Width - Outer Edges | 0.520" (13.21mm) |
| Wire Gauge | 12-10, 10-12 AWG |
| Wire Size | 12-10 AWG, Wire Size |
| Wire Size (AWG) | 10 AWG, 11 AWG, 12 AWG |
| Wire Strip Length | 0.281 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hotenda | H1659668 | 0.2473 | 1 | 100 | | Panduit | | 0.2473 @ 100 |
| Onlinecomponents.com | P10-56R-D | 0.299 | 1 | 2082 | | PANDUIT | | 0.299 @ 100 |
 | Galco | P10-56R-D-PNDT | 0.3 | 500 | 100 | | Panduit | | 0.3 @ 500 |
| us.rs-online.com | 71091524 | 0.30772 | 500 | 100 | | Panduit | | 0.30772 @ 500 |
 | mecampbell.com | PANP10-56R-D | 0.32 | 500 | 100 | 151 | Panduit | | 0.32 @ 500 |
 | Platt.com | 0654451 | 0.36 | 1 | 100 | | Panduit | | 0.36 @ 100 |
| Airline Hydraulics | PANDUIT P10-56R-D | 0.37 | 1 | 100 | | Panduit Corp | | 0.37 @ 100 |
 | Newark | 14AC0856 | 0.435 | 1 | 563 | | PANDUIT | | 0.435 @ 100 |
 | Digi-Key | 450052 | 0.4393 | 1 | 2085 | | Panduit Corp | | 0.4393 @ 100 |
 | swatee.com | P10-56R-D | 0.52 | 1 | 434 | | Panduit | | 0.52 @ 100 |
 | alldataresource.com | 218516 | 1.46 | 1 | 100 | | Panduit | | 1.46 @ 100 |
 | Carlton Bates Company | 07498380237 | 125.0 | 1 | 100 | | PANDUIT | | 125.0 @ 100 |
 | Zoro | G0424363 | 146.7 | 1 | 100 | 148 | Panduit | 2.1 | 146.7 @ 100 |
 | gordonelectricsupply.com | P10-56R-D | 160.5 | 1 | 100 | 12 | PANDUIT | | 160.5 @ 100 |
 | turtle.com | PAN P10-56R-D | 357.15 | 1 | 100 | | Panduit | | 357.15 @ 100 |
| Graybar | 88198436 | 399.4816 | 500 | 100 | | Panduit | | 399.4816 @ 500 |
