Panduit P14-10RHT6-C

mpnP14-10RHT6-C
brandname: Panduit
manufacturername: Panduit

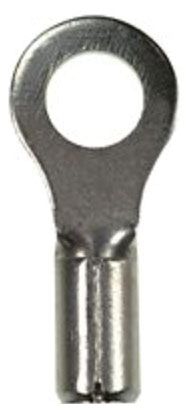

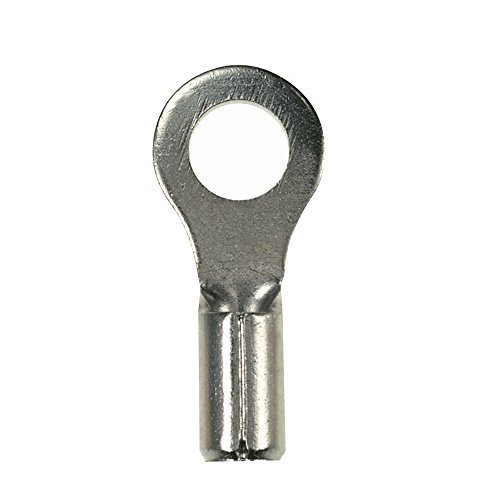

Panduit P14-10RHT6-C Ring Terminal, High Temperature, Non-Insulated, 16 - 14 AWG, #10 Stud Size (100-Pack)

Brand: Panduit
PartNumber: P14-10RHT6-C
Model: P14-10RHT6-C
Size: #10
PackageQuantity: 1
Binding: Misc.
Manufacturer: Panduit
Label: Panduit

Attributes

Key	Value
Allowable Gauge Range	16 - 14
Approvals	CSA, UL
AWG Range	#14
Base Product Number	P14
Brand	Pan-Term?
Category	Connectors, Interconnec.
Color	-
Connection Material	Nickel-Plated Copper
Contact Finish	Nickel
Contact Material	Copper
Contact material:	Contact material:
Contact Plating	Contact Plating
Country of Origin	MX - Mexico
Country of Origin (subj.	Mexico
Description	CONN RING CIRC 14-18AWG.
Detailed Description	Ring Terminal Connector.
Digi-Key Part Number	298-15123-ND
ECCN	EAR99
Family Series	Panduit Terminals, Pan-.
Features	Brazed Seam, Serrated T.
Finish	Nickel-Plated
Gross Weight	0 lbs
Insulated	Non-Insulated
Insulation	Non-Insulated
Insulation Color	Bare, Insulation Color
Insulation Diameter	-
Insulation Type	Non-Insulated
Item	Ring Terminal
Item Number	P14-10RHT6-C
Length - Overall	0.710" (18.03mm)
Manufacturer	Panduit Corp, Panduit
Manufacturer Part Number	P14-10RHT6-C
Manufacturer Product Nu.	P14-10RHT6-C
Manufacturer Standard L.	2 Weeks
Material	Copper
Material - Insulation	-
Max Temp	650 ?F
Max. Voltage	2000V
Mfr	Panduit Corp
Mounting Type	Free Hanging (In-Line)
Net Weight	0 lbs
Outer Diameter	0.31 in.
Overall Length	Overall Length
Package	Bulk
Package Quantity	100
Packaging	100 Per Bottle
Plating Material	Nickel
Product Series	Pan-Term Terminals
Product Status	Active
Rated Voltage	2000V
RoHS Compliant	Yes
Seam	Brazed
Series	Pan-Term?
Stud Size	Stud Size, #10
Stud/Tab Size	10 Stud
Terminal Material	Copper
Terminal Type	Ring, Circular
Termination	Crimp
Thickness	0.030" (0.76mm)
UNSPSC	39121409
Use With	CT-100, CT-1570, CT-230.
Volts	2,000 V
Width	0.31 in.
Width - Outer Edges	0.310" (7.87mm)
Wire Gauge	14-18 AWG
Wire Range	16 to 14 AWG, Wire Range
Wire Size	18-14 AWG
Wire Size (AWG)	14 AWG, 15 AWG, 16 AWG,.
Wire Strip Length	0.281 "

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Onlinecomponents.com	P14-10RHT6-C	0.426	1	100		Panduit		0.404 @ 101
cbtcompany.com	P14-10RHT6-C	0.49	1	100		PANDUIT		0.49 @ 100
mecampbell.com	PANP14-10RHT6-C	0.54	100	100	33	Panduit		0.54 @ 100
Galco	P14-10RHT6-C-PNDT	0.54	500	100		Panduit		0.54 @ 500
Platt.com	0201615	0.58	1	100		Panduit		0.58 @ 100
Airline Hydraulics	PANDUIT P14-10RHT6-C	0.59	1	100		Panduit Corp		0.59 @ 100
us.rs-online.com	72259998	0.65105	500	100		Panduit		0.65105 @ 500
Digi-Key	450103	0.6624	1	1330		Panduit Corp		0.6624 @ 100
Newark	93B7088	0.67	1	100		PANDUIT		0.67 @ 100
Zoro	G0780278	50.28	1	100	23	Panduit	0.22	50.28 @ 100
alldataresource.com	971971	53.15	1	100		Panduit		53.15 @ 100
Carlton Bates Company	07498380540	55.0	1	100		PANDUIT		55.0 @ 100
turtle.com	PAN P14-10RHT6-C	58.11	1	100		Panduit		58.11 @ 100
Graybar	88198462	61.3312	100	100		Panduit		61.3312 @ 100
steinerelectric.com	6855	65.97	1	100		Panduit		65.97 @ 100
gordonelectricsupply.com	P14-10RHT6-C	260.45	1	100	12	PANDUIT		260.45 @ 100
