- mpnP6-12R-E
- brandname: Panduit
- manufacturername: Panduit

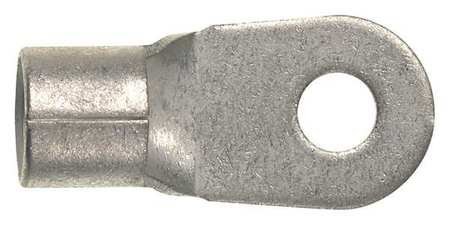

Ring Term, Bare, 1/2 in., 1.430 in., PK20
- Brand: Panduit
- PartNumber: P6-12R-E
- Model: P6-12R-E
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: PANDUIT
- Label: PANDUIT
Attributes
| Key | Value |
|---|
| Approvals | CSA, UL |
| Barrel Inside Diameter | 0.23 in |
| Barrel Length | 0.51 in |
| Barrel Outside Diameter | 0.23 in |
| Barrel Style | Serrated Barrel |
| Color | - |
| Compatible Grainger Par. | 376T59 |
| Compatible Manufacturer. | CD-2600-6, CT-1701, CT-. |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin (subj. | Mexico |
| Family Series | Panduit Terminals, Pan-. |
| Features | Brazed Seam |
| For Wire Size | 6 AWG |
| For Wire Sizes | 6 AWG to 6 AWG |
| Green Environmental Att. | Does Not Contain PVC |
| Gross Weight | 0 lbs |
| Hole Diameter | 0.52 in |
| Insulated | Non-Insulated |
| Insulation | Non-Insulated |
| Insulation Color | Bare |
| Insulation Coverage | None |
| Insulation Diameter | - |
| Insulation Material | None |
| Insulation Type | Non-Insulated, Bare |
| Item | Ring Terminal |
| Item Number | P6-12R-E |
| Lead Free Status / RoHS. | RoHS Compliant |
| Length - Overall | 1.430" (36.32mm) |
| Manufacturer | Panduit |
| Manufacturer Part Number | P6-12R-E |
| Manufacturer Standard L. | 4 Weeks |
| Material - Insulation | - |
| Max Temp | 302 ?F |
| Max. Temp. | 302 Degrees F |
| Max. Voltage | 2,000 V |
| Maximum Operating Tempe. | 302 Degrees F |
| Maximum Voltage | 2,000 V |
| Maximum Wire Size | 6 AWG |
| Minimum Operating Tempe. | 302 Degrees F |
| Minimum Wire Size | 6 AWG |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Overall Length | 1.43 in, 1.430" |
| Package Quantity | 20 |
| Packaging | Bulk Pack |
| Plating Material | Tin |
| Product Series | Pan-Term Terminals |
| Ring Width Ranges | 0.76 - 1.00 inches |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Series | Pan-Term |
| Special Features | Ring Tongue Design Assu. |
| Standard Package | 20 |
| Standards | UL486A-486B, CSA C22.2 . |
| Strip Length | 1/2 in |
| Stud Size | 1/2", 1/2 in |
| Stud/Tab Size | 1/2 Stud |
| Terminal Connection | Crimp |
| Terminal Material | Copper |
| Terminal Shape | Ring Terminal |
| Terminal Type | Ring, Circular |
| Termination | Crimp |
| Termination Style | Crimp |
| Thickness | 0.045" (1.14mm) |
| Tongue Length | 1.02 in |
| Tongue Thickness | 0.05 in |
| Tongue Width | 0.82 in |
| Tongue Width - Wire Con. | 0.82 in |
| UL 94 Flammability Rati. | Not Applicable |
| UPC Code | 074983870707 |
| Volts | 2,000 V |
| Width - Outer Edges | 0.820" (20.83mm) |
| Wire Gauge | 6 AWG |
| Wire Range | 6 AWG |
| Wire Size | 6 AWG |
| Wire Size (AWG) | 6 AWG |
| Wire Strip Length | 0.438 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| iodParts | P6-12R-E | 1.702 | 360 | 360 | | Panduit | | 1.702 @ 360 |
| Onlinecomponents.com | P6-12R-E | 2.07 | 1 | 471 | | PANDUIT | | 2.07 @ 20 |
 | Digi-Key | 298-15187-ND | 2.126 | 1 | 20 | | Panduit Corp | | 2.126 @ 20 |
 | Galco | P6-12R-E-PNDT | 2.14 | 100 | 20 | | Panduit | | 2.14 @ 100 |
| Airline Hydraulics | PANDUIT P6-12R-E | 2.59 | 1 | 20 | | Panduit Corp | | 2.59 @ 20 |
| us.rs-online.com | 71263690 | 2.68 | 1 | 37 | | Panduit | | 2.68 @ 20 |
 | Newark | 48AC9842 | 2.71 | 1 | 20 | | PANDUIT | | 2.71 @ 20 |
 | Carlton Bates Company | 07498387070 | 41.4 | 1 | 20 | | PANDUIT | | 41.4 @ 20 |
 | alldataresource.com | 10044632 | 47.76 | 1 | 20 | | Panduit | | 47.76 @ 20 |
 | Zoro | G0287589 | 49.89 | 1 | 20 | | Panduit | 0.26 | 49.89 @ 20 |
| grainger.ca | WWG39AZ29 | 60.487966 | 1 | 20 | | PANDUIT | 0.26 | 60.487966 @ 20 |
 | gordonelectricsupply.com | P6-12R-E | 226.0 | 1 | 20 | 12 | PANDUIT | | 226.0 @ 20 |
 | turtle.com | PAN P6-12R-E | 253.19 | 1 | 20 | | Panduit | | 253.19 @ 20 |
| steinerelectric.com | 45977 | 287.46 | 1 | 20 | | Panduit | | 287.46 @ 20 |
