Panduit DNF14-250FIB-M
Panduitzoom

Panduit DNF14-250FIB-M

mpn:
PANDNF14-250FIB-M
brand:
Panduit
manufacturer:
Panduit
MPN:
PANDNF14-250FIB-M
Description:

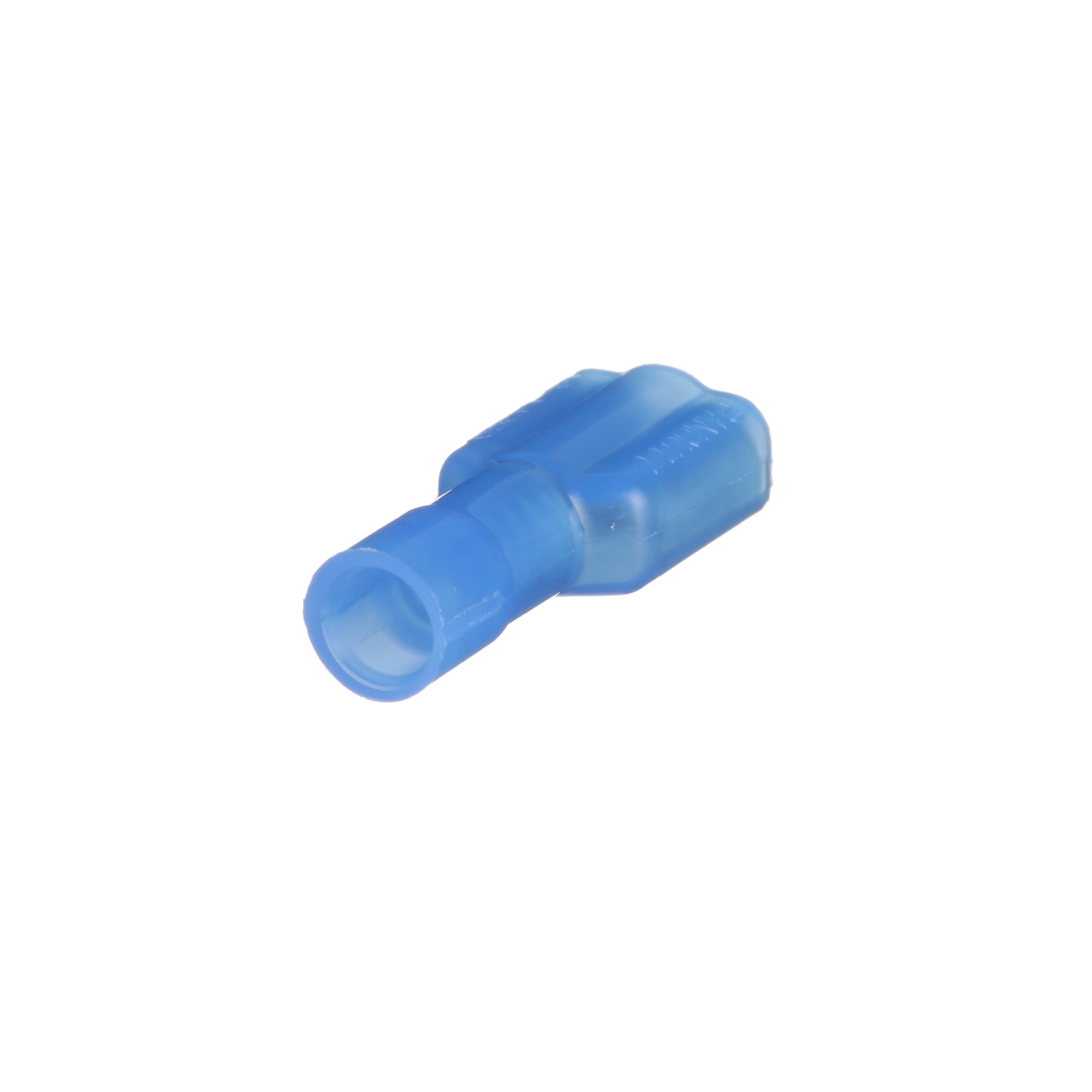

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm).
Weight:
0.1625
Weight:
2.55074837134 LB
Preferred Price:
316.83
Price:
316.83
Min Simple Price:
179.0
Absolute Min Price:
254.17
Min Price:
254.17
Dimensions:
[9.0, 5.0, 5.0]
qty:
13
simpleSku:
OTExMQ:::PANDNF14-250FIB-M
sku:
OTExMQ::DO:PANDNF14-250FIB-M@y0
condition:
11
seller:
Verical
amzMan:
panduit
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Allowable Gauge Range16 - 14
Alternate Part No.644-DNF14-250FIB-M
ApprovalsCSA, UL
AWG Range#14
Barrel Inside Dia., Barrel Inside Diameter0.09 in
Barrel StyleFunnel Entry
Base Product NumberDNF14
Brand, ManufacturerPanduit
Brand, SeriesPan-Term?
CategoryConnectors, Interconnects
Color, Color Family, Insulation Color, Insulation ColourBlue
Color, Contact Material, Material, Terminal MaterialBrass
Connection MaterialTin-Plated Brass
Connection Type, Termination, Termination StyleCrimp
Contact Finish, Contact Plating, Plating MaterialTin
Country of OriginMX - Mexico
Country of Origin (subject to change)Mexico
Current Stock13
DescriptionCONN QC RCPT 14-16AWG 0.250
Detailed Description0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
Digi-Key Part Number298-10278-ND
ECCNEAR99
Family SeriesPanduit Terminals, Pan-Term Disconnects Series
FeaturesSerrated Termination
FinishTin-Plated
For Wire Size14 AWG, 16 AWG
GenderFemale
Gross Weight, Net Weight0 lbs
Height0.22 in.
Insulated, InsulationInsulated
InsulationFully Insulated, Full
Insulation ColorInsulation Color
Insulation CoverageFull Coverage
Insulation Diameter0.160" (4.06mm)
Insulation Material, Insulation Type, MaterialNylon
Insulation TypeInsulation Type
International ShippingNo
ItemFemale Disconnect
Item Number, Manufacturer Part No., Manufacturer Part Number, Manufacturer Product Number, MpnDNF14-250FIB-M
Length19.8 mm
Length - Overall0.840" (21.34mm)
Manufacturer Standard Lead Time6 Weeks
Manufacturer, MfrPanduit Corp
Max Temp221 ?F
Max. Temp.221 Degrees F
Max. Voltage, Maximum Voltage, Volts600 V
Maximum Bundle Diameter2.5 mm
Maximum Operating Temperature221 Degrees F
Maximum Voltage, Rated Voltage600V
Maximum Wire Size14 AWG
Minimum Operating Temperature-60 Degrees F, -60 Degrees F
Minimum Wire Size16 AWG
Mounting AngleStraight
Mounting MethodWire
Mounting TypeFree Hanging (In-Line)
Overall Length0.84 in
PackageBulk
Package Quantity1,000
Packaging1000 per Package
ProductDisconnects
Product CategoryTerminals
Product SeriesPan-Term Disconnects
Product StatusActive
RoHS CompliantYes
Seam, Seam StyleButted
SKUZO-G0059915
Special FeaturesFully Insulated Design Provides Protection From Electrical Shorts, Internal Wire Stop Assures Proper Length of Insertion Into Terminal Barrel, Providing a Higher Quality Connection, The Disconnect can be Inserted and Removed From the Male Tab Without the Use of Additional Tools, The Internal Wire Stop Assures Proper Wire Insertion Length Into the Terminal Barrel for a Higher Quality Connection, and the Funnel Entry Allows for Faster Wire Insertion and Lower Installed Cost
StandardsAmerican Bureau of Shipping (ABS), CSA22.2 No. 153, RoHS Compliant, UL 310, UL 310, CSA22.2 No. 153, American Bureau of Shipping (ABS), RoHS Compliant
Strip Length5/16 in
Stud/Tab Size0.25 in x 0.032 in
SubCategoryElectrical
Tab Length-
Tab Size0.25 x 0.032 ", Tab Size, 0.032 in x 0.250 in
Tab Thickness0.032" (0.81mm), 0.032 in
Tab Width0.250" (6.35mm), 0.25 in
Terminal TypeDisconnect - Female, Socket, Standard
Terminal TypesFemale Socket
TypeFully-Insulated, Butted Seam, Disconnect Terminal
UL 94 Flammability RatingHB
Unit Weight1.225 kg
UNSPSC39121409
UPC074983827510
Use WithCT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Width0.35 in.
Wire Gauge16-14, 14-16 AWG
Wire Range16 to 14 AWG, Wire Range
Wire Size16-14 AWG
Wire Size (AWG)14 AWG, 15 AWG, 16 AWG
Wire Size Range16 AWG - 14 AWG
Wire Strip Length0.281 "

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
VericalDNF14-250FIB-M0.17916.181676100Panduit0.179 @ Qty: 100+
Onlinecomponents.comDNF14-250FIB-M0.28217.032813365PANDUIT0.282 @ Qty: 100+
HotendaH16450440.323419.53336115625Panduit0.3234 @ Qty: 100+
thumbzoomelectricalparts.comDNF14-250FIB-M0.347220.9708813000Panduit0.3472 @ Qty: 100+
thumbzoomcbtcompany.comDNF14-250FIB-M0.3521.141100PANDUIT0.35 @ Qty: 100+
thumbzoomComponent Electronics511B-64AP0.3722.3481100Panduit Corp0.37 @ Qty: 100+
thumbzoomFrench GerlemanPANDDNF14250FIBM0.37170.21000100Panduit0.37 @ Qty: 1000+
thumbzoomGalcoDNF14-250FIB-M-PNDT0.37170.21000100Panduit0.37 @ Qty: 1000+
thumbzoommecampbell.comPANDNF14-250FIB-M0.42193.21000100151Panduit0.42 @ Qty: 1000+
thumbzoomPlatt.com05130080.4527.1813000Panduit0.45 @ Qty: 100+
thumbzoomDigi-Key4481030.50730.622816927Panduit Corp0.507 @ Qty: 100+
thumbzoomNewark14AC19600.55333.4012113933PANDUIT0.553 @ Qty: 100+
us.rs-online.com722597070.5648934.7972244100Panduit0.56489 @ Qty: 100+
thumbzoomswatee.comDNF14-250FIB-M0.7344.09213320Panduit0.73 @ Qty: 100+
thumbzoomCarlton Bates Company07498382751340.020536.01100PANDUIT340.0 @ Qty: 100+
thumbzoomZoroG0059915346.1920909.8761100Panduit2.6346.19 @ Qty: 100+
thumbzoomalldataresource.comDNF14-250F-1B-M361.0721808.6281100Panduit361.07 @ Qty: 100+
thumbzoomgordonelectricsupply.comDNF14-250FIB-M399.024099.6110012PANDUIT399.0 @ Qty: 100+
steinerelectric.com6972401.0924225.8361100Panduit401.09 @ Qty: 100+
thumbzoomjensentools.com10015529419.1425316.0561100Panduit419.14 @ Qty: 100+
thumbzoomsimsupply.comZO-G0059915426.125736.441100Panduit426.1 @ Qty: 100+
thumbzoomturtle.comPAN DNF14-250FIB-M444.7226861.0881100Panduit444.72 @ Qty: 100+
Graybar88197537492.91229771.884811000Panduit492.912 @ Qty: 100+
grainger.caWWG39AY48582.5609278435186.68004151100PANDUIT2.6582.56092784 @ Qty: 100+
thumbzoomRaptor SuppliesAH8XWK900.69583554402.0284341100PANDUIT900.695835 @ Qty: 100+
B009EBJZDO
Panduit DNF14-250FIB-M

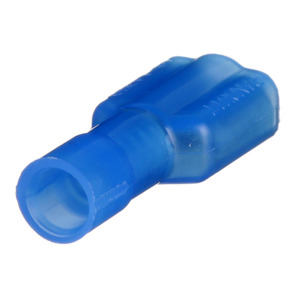

Panduit DNF14-250FIB-M Female Disconnect, Nylon Fully Insulated, Funnel Entry, 16 - 14 AWG, .250 x .032" Tab Size
