- mpnPCSB4-4-6Y
- brandname: Panduit
- manufacturername: Panduit

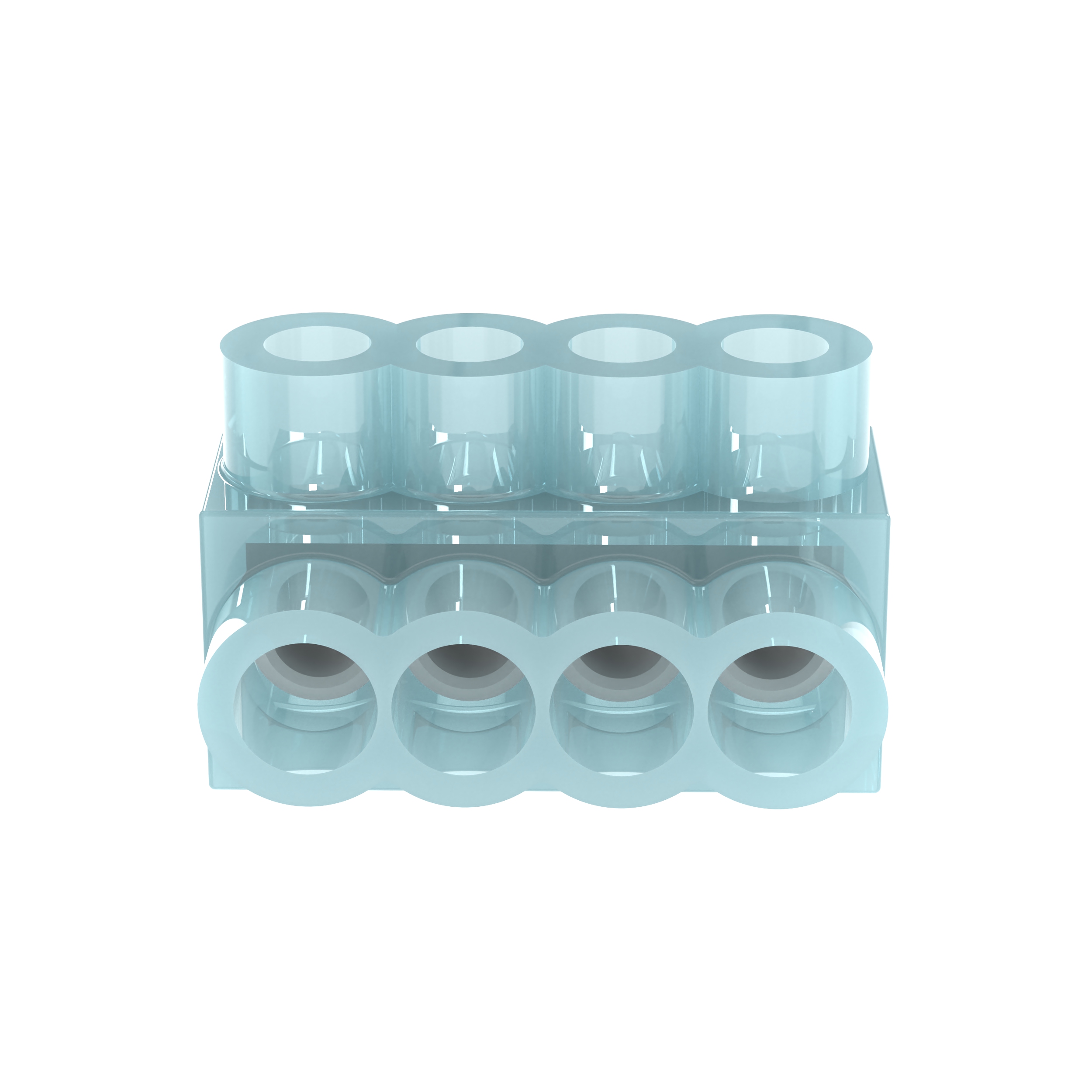

Panduit PCSB4-4-6Y Multi-Tap Connector, Double-Sided, Clear Insulation, 4 Ports, #4 - #14 Str, #10 - #14 Sol
- Brand: Panduit
- PartNumber: PCSB4-3S-12Y
- Model: PCSB4-4-6Y
- Color: 0
- Size: 4 Ports
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 14 - 4 |
| Application | Aluminum or Copper Code. |
| Approvals | CSA, UL |
| Base Product Number | PCS |
| Brand | Pan-Lug? |
| Brand Name | Panduit |
| Cable Entry | Double Side |
| Category | Connectors, Interconnec. |
| Color | Clear |
| Conductor Size | 14-4 AWG Stranded, 14-1. |
| Country Of Origin | United States of America |
| Country of Origin | US - United States |
| Country of Origin (subj. | United States |
| CSA Voltage | 600 VAC |
| Description | CONN INLINE TAP 4-14 AW. |
| Detailed Description | Terminal Inline, Tap Co. |
| Digi-Key Part Number | 298-15365-ND |
| Dimensions | 2.29 Inch Length x 1.5 . |
| ECCN | EAR99 |
| Energy Star Flag | No |
| Family Series | Panduit Terminal Blocks. |
| Features | - |
| Finish | Tin-Plated |
| Gross Weight | 0.9 lbs |
| GTIN | 00074983597789 |
| Height | 1.25 in. |
| Hex Size | 0.125 |
| Insulation | Fully Insulated |
| Insulation Material | PVC, Clear PVC |
| Item | Mechanical Connector,4-. |
| Item Name | Multi-Tap Connector |
| Item Number | PCSB4-4-6Y |
| Made In America | Yes |
| Main Conductor Size | 4 |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Name | Panduit |
| Manufacturer Part Number | PCSB4-4-6Y |
| Manufacturer Product Nu. | PCSB4-4-6Y |
| Manufacturer Standard L. | 2 Weeks |
| Material | Aluminum Alloy, Aluminum |
| Mfr | Panduit Corp |
| Net Weight | 0 lbs |
| Number of Poles | 4 |
| Number of Ports | 4.0000 |
| Number of Wire Entries | 4 |
| Package | Bulk |
| Product Series | Pan-Lug Mechanical |
| Product Status | Active |
| Rated Voltage | 600V |
| RoHS | Yes |
| RoHS Flag | Yes |
| Series | PCSB |
| Spacing Ctr. - Ctr. | 13.46 mm |
| Standards | UL Listed, CSA Certifie. |
| Stud Size | No |
| Tap Conductor Size | 10 Sol to 14 Sol AWG |
| Temperature Rating | 194 deg F (90 deg C) |
| Terminal Type | Inline, Tap |
| Termination | Screw |
| Type | PCSB Series, Insulated |
| UL Voltage | 600 VAC |
| UNSPSC | 39121408, 39121466 |
| UPC | 07498359778 |
| Voltage Rating | 600 Volt |
| Volts AC | 600 |
| Width | 1.5 in. |
| Wire Entry Position | Side |
| Wire Gauge | 4-14 AWG |
| Wire Range (AWG) | 14-4 AWG |
| Wire/Cable Openings | 4 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Newark | 72K9171 | 20.97 | 1 | 11 | | PANDUIT | | 20.97 @ 1 |
 | alldataresource.com | 10083258 | 27.25 | 1 | In Stock | | Panduit | | 27.25 @ 1 |
| Avnet | PCSB4-4-6Y | 29.55878 | 1 | In Stock | | Panduit | | 29.55878 @ 1 |
 | French Gerleman | PANDPCSB446Y | 30.19 | 1 | In Stock | | Panduit | | 30.19 @ 1 |
| Electro Sonic | PCSB446Y | 34.2032 | 1 | In Stock | | Panduit | | 34.2032 @ 1 |
 | Digi-Key | 4567027 | 34.93 | 1 | 6 | | Panduit Corp | | 34.93 @ 1 |
| Sager Electronics | PCSB4-4-6Y | 35.28 | 1 | In Stock | | Panduit | | 35.28 @ 1 |
| Monarch Electric | 16638 | 35.5444 | 1 | In Stock | | Panduit | | 35.5444 @ 1 |
| Onlinecomponents.com | PCSB4-4-6Y | 35.81 | 1 | In Stock | | Panduit | | 35.81 @ 1 |
 | Zoro | G0781809 | 39.81 | 1 | In Stock | 15 | Panduit | 0.9 | 39.81 @ 1 |
 | Galco | PCSB4-4-6Y-PNDT | 44.27 | 6 | In Stock | | Panduit | 0.9 | 44.27 @ 6 |
 | Platt.com | 0681282 | 47.06 | 1 | In Stock | | Panduit | | 47.06 @ 1 |
| Airline Hydraulics | PANDUIT PCSB4-4-6Y | 48.51 | 1 | In Stock | | Panduit Corp | | 48.51 @ 1 |
 | gordonelectricsupply.com | PCSB4-4-6Y | 253.8 | 1 | In Stock | 12 | PANDUIT | | 253.8 @ 1 |
 | jensentools.com | 10016799 | 295.07 | 1 | In Stock | | Panduit | | 295.07 @ 1 |
| Graybar | 25069091 | 4647.9888 | 1 | In Stock | | Panduit | | 4647.9888 @ 1 |
 | turtle.com | PAN PCSB4-4-6Y | 4742.77 | 1 | In Stock | | Panduit | | 4742.77 @ 1 |
