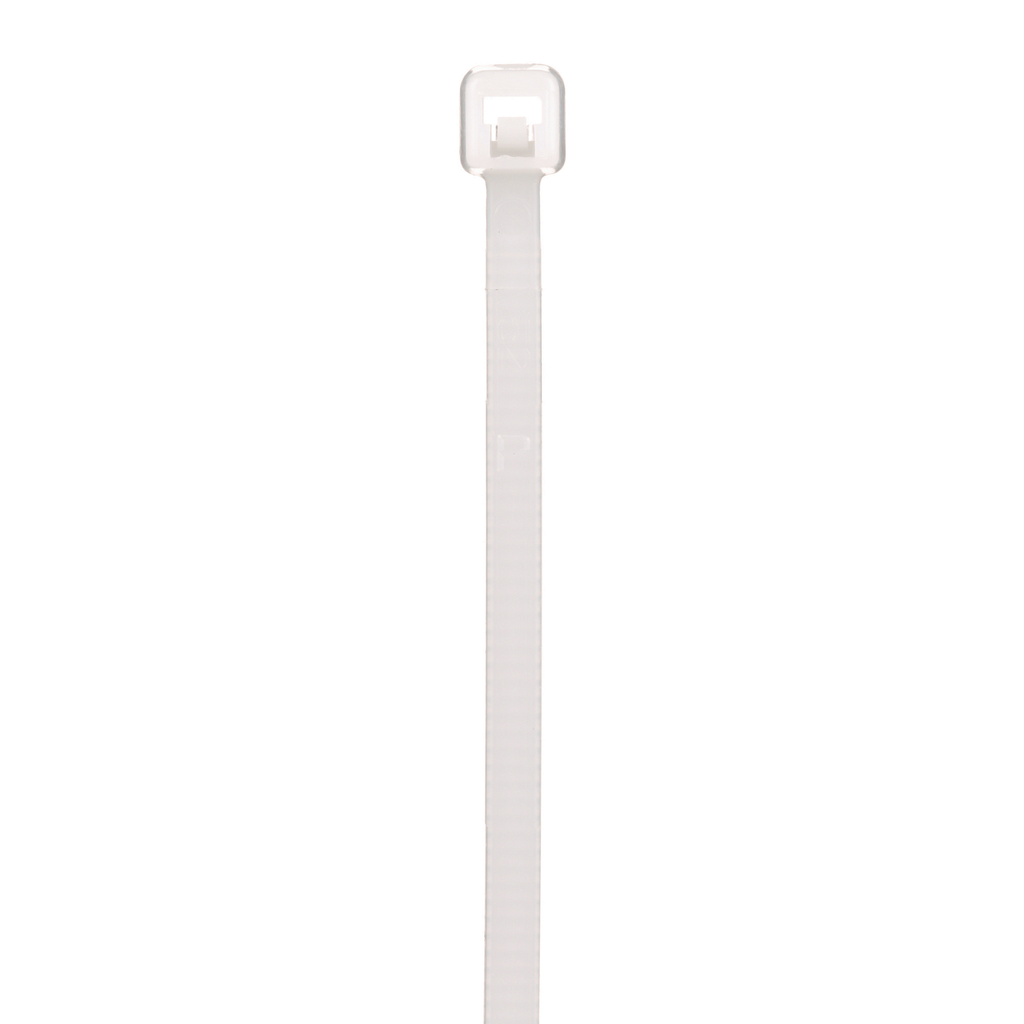

| Accessory Type, Item Type, Product Type | Reel-Fed Cable Tie |
| Alternate Part No. | 644-PLT1M-XMR |
| Application | Reel-fed cable ties for automated tooling |
| Approvals | CSA, UL |
| Approximate Length | 4 in |
| ARRA Compliant, Buy American Compliant | Y |
| Base Product Number | PLT1M |
| Body Thickness (In.) | 0.036 |
| Body Thickness (mm) | 0.9 |
| Body Width (In.), Width | 0.1 |
| Body Width (mm) | 2.5 |
| Brand, Family / Style, Sub Brand | Pan-Ty? |
| Brand, Manufacturer | Panduit |
| Bundle Diameter | 0.82 in., 0.82" (20.83mm) |
| California Pro65 Cancer, Made in USA, Mercury Content Indicator | No |
| Catalog Number, Item Number, Manufacturer Part No., Manufacturer Part Number | PLT1M-XMR |
| Category | Cables, Wires - Management |
| Color | Black |
| Color, Color Family | Natural |
| Country of Origin | Multiple, 00 - Unknown |
| Country of Origin (subject to change) | Costa Rica |
| Country of Origin 2Digit | SG,CR |
| Diameter Range | 0.087 in |
| EAN, GTIN Package | 00074983547166 |
| ECCN | EAR99 |
| Environment, Special Features | Indoor |
| Environmental | Indoor, Outdoor |
| Family Series | Panduit Cable Ties |
| Features | Used in countless applications wherever you need to bundle wire, cable or hose |
| Features, Shelf Life, Shelf Life Start, Storage/Refrigeration Temperature | - |
| For Use With | PAT1M4.0 System |
| Gross Weight, Net Weight | 0 lbs |
| GTIN Carton | 50074983547161 |
| Hazardous Material Flag | N |
| Item | Cable Tie,Min,4",Nat,PK5000 |
| Length | 4 in., 3.900 in, 102 mm |
| Length (In), Nominal Length | 4 " |
| Length - Actual | 0.333' (101.60mm, 4.00") |
| Length - Approximate | 4" |
| Length UOM | Inch |
| Length, Overall Length (In.) | 4 |
| Lock Mechanism | Locking |
| Material | Nylon, Nylon 6.6, Polyamide (PA66), Nylon 6/6 |
| Max Bundle Diam. (in) | 0.82 " |
| Maximum Bundle Diameter | 21 mm |
| Maximum Bundle Diameter (In.) | 0.82 |
| Maximum Bundle Diameter (mm) | 20.8 |
| Maximum Operating Temperature (?C) | 85 |
| Maximum Operating Temperature (?F) | 185 |
| Mfr | Panduit Corp |
| Military Cross Reference Number | MS3367-4-9 |
| Min Order Qty, Package Quantity | 10,000 |
| Min. Order UOM, Std. Pkg. UOM | Piece |
| Minimum Bundle Diameter (In.) | 0.02 |
| Minimum Bundle Diameter (mm) | 0.5 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Operating Temperature (?C) | -60 |
| Minimum Operating Temperature (?F) | -76 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ties per Reel, Package Quantity, Std. Pkg. Qty. | 5000 |
| Overall Length (mm) | 102 |
| Package | 5000 per Reel; 2 Reels |
| Packaging | Reel |
| Pallet Quantity | 160,000 |
| Pallet Volume | 40.078184 |
| Pallet Weight | 253.5200 |
| Part Status | Active |
| Plenum Rated | Yes |
| Product Segment | IEI |
| Product Thickness | 0.043 in |
| Product, Product Category | Cable Ties |
| REACH Status | False |
| RoHS Compliant | Compliant |
| Series | PAN-TY? PLT |
| Series, Sub Brand | Pan-Ty |
| Size | Miniature |
| Standard Carton Volume Ft3 | 2.5049 |
| Standard Carton Weight Pounds | 15.8450 |
| Standard Package Volume Ft3 | 1.2524 |
| Standard Package Weight Pounds | 7.9225 |
| Standard, Standards Met | UL Listed, UL Recognized, CSA Certified, CE Compliant, RoHS Compliant |
| Std Carton Height In | 12.75 |
| Std Carton Height MM | 323.85 |
| Std Carton Length In | 18.7 |
| Std Carton Length MM | 474.98 |
| Std Carton Width In | 18.6 |
| Std Carton Width MM | 472.44 |
| Std Ctn Qty | 10000 |
| Std Package Height In | 6.2 |
| Std Package Height MM | 157.48 |
| Std Package Length In, Std Package Width In | 18.5 |
| Std Package Length MM, Std Package Width MM | 469.9 |
| Tensile Strength | 18 LB, 8 kg, 18 lbs (8.16 kg) |
| Tensile Strength (lb), Weight Capacity | 18 lbs |
| Thickness | 0.04 |
| Type | Automatic Reel Fed, Reel-Fed |
| UNSPSC | 39121703 |
| UOM EA PK | PK |
| UPC | 07498354716 |
| UPC, UPC Code | 074983547166 |
| Width | 0.980 in, 0.098" (2.50mm), 3 mm |
| Width (in) | 0.1 " |
| Wire/Cable Tie Type | Standard, Locking |
