| Barrel Inside Diameter | 0.15 in |
| Barrel Style | Insulation Grip |
| Compatible Grainger Part Number | 376T26, 376U11, 376V66, 38YU61 |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST, CT-2500/L, UP14ZLW |
| Connection Material, Contact Material | Copper |
| Connection Type, Terminal Connection, Termination Style | Crimp |
| Contact Finish | Tin |
| Country of Origin (subject to change) | Mexico |
| For Wire Size | 18 AWG, 20 AWG, 22 AWG |
| For Wire Sizes | 22 AWG to 18 AWG |
| Green Environmental Attribute | Does Not Contain PVC |
| Hole Diameter | 0.2 in |
| Insulation Color | Red |
| Insulation Coverage | Partial Coverage |
| Insulation Material, Insulation Type | Nylon |

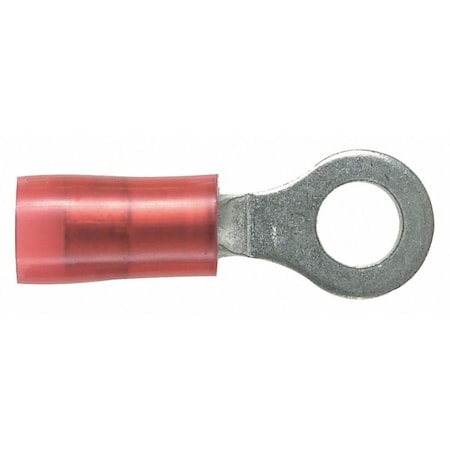

| Item, Terminal Shape | Ring Terminal |
| Max. Temp. | 221 Degrees F |
| Max. Voltage, Maximum Voltage | 600 V |
| Maximum Operating Temperature, Minimum Operating Temperature | 221 Degrees F |
| Maximum Wire Size | 18 AWG |
| Minimum Wire Size | 22 AWG |
| Overall Length | 0.87 in |
| Ring Width Ranges | 0.26 - 0.50 inches |
| Seam, Seam Style | Grip Sleeved |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications |
| Standards | CSA C22.2 No. 65, MS25036-103 (Class 1 and 2), UL486A-486B |
| Strip Length | 1/4 in |
| Stud Size | #10 |
| Tongue Thickness | 0.03 in |
| Tongue Width, Tongue Width - Wire Connector | 0.31 in |
| UL 94 Flammability Rating | HB |
| UL Standards | UL 486A-486B |
| Wire Range | 22 to 18 AWG |
