- mpnPNF18-6F-C
- brandname: Panduit
- manufacturername: Panduit

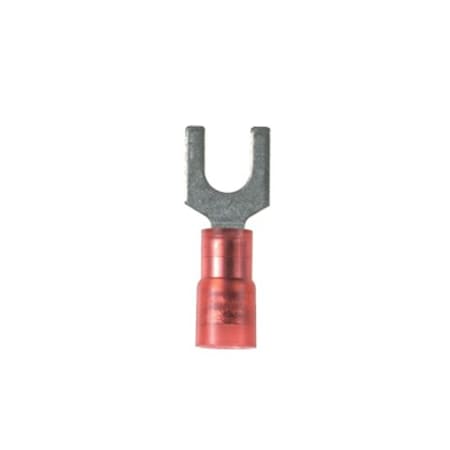

Panduit PNF18-6F-C Fork Terminal, Funnel Entry, Nylon Insulated, 22 - 18 AWG, #6 Stud Size, Red (100-Pack)
- Brand: Panduit
- PartNumber: PNF18-6F-C
- Model: PNF18-6F-C
- Color: Red
- Size: 100-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 22 - 18 |
| Alternate Part No. | 644-PNF18-6F-C |
| Angle | Straight |
| Approvals | CSA, UL |
| AWG Range | #18 |
| Base Product Number | PNF18 |
| Brand | Pan-Term?, Panduit |
| Category | Connectors, Interconnec. |
| Color | Red |
| Color Family | Red |
| Connection Material | Tin-Plated Copper |
| Contact Finish | Tin |
| Contact Material | Copper |
| Contact Plating | Tin |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Mexico |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | Butted Seam, Serrated T. |
| Finish | Tin-Plated |
| Gross Weight | 0.469 lbs |
| Insulated | Insulated |
| Insulation | Insulated |
| Insulation Color | Red |
| Insulation Diameter | 0.136" (3.45mm) |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Item | Fork Terminal |
| Item Number | PNF18-6F-C |
| Length | 0.78 in |
| Length - Overall | 0.800" (20.32mm) |
| Length - Ring Center to. | - |
| Length - Termination | - |
| Manufacturer | Panduit |
| Manufacturer Part No. | PNF18-6F-C |
| Manufacturer Part Number | PNF18-6F-C |
| Material | Copper, Copper, Nylon |
| Material - Insulation | Polyamide (PA), Nylon |
| Max Temp | 221 ?F |
| Max. Voltage | 600V |
| Mfr | Panduit Corp |
| Mounting Angle | Straight |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Operating Temperature R. | + 105 C |
| Outer Diameter | 0.23 in. |
| Package | Bulk |
| Package Quantity | 100 |
| Plating Material | Tin |
| Product | Fork Terminals |
| Product Category | Terminals |
| Product Series | Pan-Term Terminals |
| Product Status | Active |
| Rated Voltage | 600V |
| RoHS Compliant | Yes |
| Seam | Grip Sleeved |
| Series | Pan-Term?, Pan-Term PNF. |
| Stud Size | #6 |
| Stud/Tab Size | 6 Stud, 6 |
| Terminal Material | Copper |
| Terminal Type | Spade/Fork, Standard |
| Termination | Crimp |
| Termination Style | Crimp |
| Tongue Inside Opening | 0.150" (3.81mm) |
| Type | Fork Terminal, Terminal. |
| Unit Weight | 95.254 g |
| UNSPSC | 39121409 |
| UPC Code | 074983513468 |
| Use With | CT-100, CT-1550, CT-155. |
| Volts | 600 V |
| Width | 0.3 in, 0.3 in. |
| Width - Outer Edges | 0.300" (7.62mm) |
| Wire Gauge | 18-22 AWG, 22-18 |
| Wire Range | 22 to 18 AWG |
| Wire Size | 22-18 AWG |
| Wire Size (AWG) | 18 AWG, 19 AWG, 20 AWG,. |
| Wire Strip Length | 0.219 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | PNF18-6F-C | 1.02 | 1 | 98 | | Panduit | | 1.02 @ 1 |
 | Galco | PNF18-6F-C-PNDT | 1.13 | 100 | 88 | | Panduit | 0.469 | 1.13 @ 100 |
 | Platt.com | 0709637 | 1.32 | 1 | 88 | | Panduit | | 1.32 @ 1 |
| Airline Hydraulics | PANDUIT PNF18-6F-C | 1.36 | 1 | 88 | | Panduit Corp | | 1.36 @ 1 |
| Digi-Key | 451883 | 1.59 | 1 | 88 | 166 | Panduit Corp | | 1.59 @ 1 |
| us.rs-online.com | 70518737 | 1.61 | 1 | 372 | | Panduit | | 1.61 @ 1 |
 | swatee.com | PNF18-6F-C | 3.36 | 1 | 165 | | Panduit | | 3.36 @ 1 |
| Graybar | 96097313 | 84.2688 | 100 | 88 | | Panduit | | 84.2688 @ 100 |
 | Zoro | G0787969 | 100.33 | 1 | 88 | 26 | Panduit | 0.47 | 100.33 @ 1 |
 | Carlton Bates Company | 07498351346 | 109.0 | 1 | 88 | | PANDUIT | | 109.0 @ 1 |
 | gordonelectricsupply.com | PNF18-6F-C | 118.59 | 1 | 88 | 12 | PANDUIT | | 118.59 @ 1 |
 | alldataresource.com | PNF18-6F-C | 122.68 | 1 | In Stock | | Panduit | | 122.68 @ 1 |
 | turtle.com | PAN PNF18-6F-C | 132.55 | 1 | 88 | | Panduit | | 132.55 @ 1 |
| Newark | 19C9321 | 155.12 | 1 | In Stock | | PANDUIT | | 155.12 @ 1 |
| steinerelectric.com | 279037 | 158.65 | 1 | 88 | | Panduit | | 158.65 @ 1 |
