| Allowable Gauge Range | 16 - 14 |
| Approvals | CSA, UL |
| AWG Range | #14 |
| Barrel Length | 0.51 in |
| Barrel Style | Insulation Grip |
| Base Product Number | PN14 |
| Brand, Manufacturer | PANDUIT |
| Brand, Series | Pan-Term? |
| Category | Connectors, Interconnects |
| Color, Color Family, Colour, Insulation Color | blue |
| Compatible Grainger Part Number | 376U11, 38YU61 |
| Compatible Manufacturer Model Number | CT-1550, CT-1551, CT-400, CT-460, CT-500, CT-550 |
| Compatible with Product Type | Crimp Tool, Crimper |
| Compatible with Series | CT |
| Connection Material, Contact Material, Contact material, Material, Terminal Material | copper |
| Connection Type, Terminal Connection, Termination, Termination Style | Crimp |
| Contact Finish, Plating Material | Tin |
| Contact plating | tinned |
| Country of Origin | MX - Mexico |
| Country of Origin (subject to change) | Mexico |
| Current Stock | 15 |
| ECCN | EAR99 |
| Electrical mounting | crimped |
| Family Series | Panduit Terminals, Pan-Term Terminals Series |
| Features | Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener |
| Features, Length - Ring Center to Termination, Length - Termination | - |
| Ferrule variant, Insulated, Insulation | insulated |
| Finish | Tin-Plated |
| For Wire Size | 14 AWG, 18 AWG |
| Gross Weight | 0.35 lbs |
| Insulation Diameter | 0.162" (4.11mm) |
| Insulation Material, Insulation Type, Insulator material, Material | nylon |
| International Shipping | No |
| Item Number, Manufacturer Part Number, Mpn | PN14-14F-C |

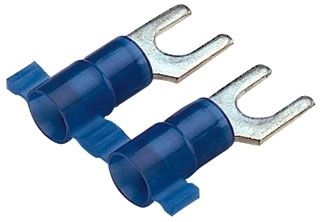

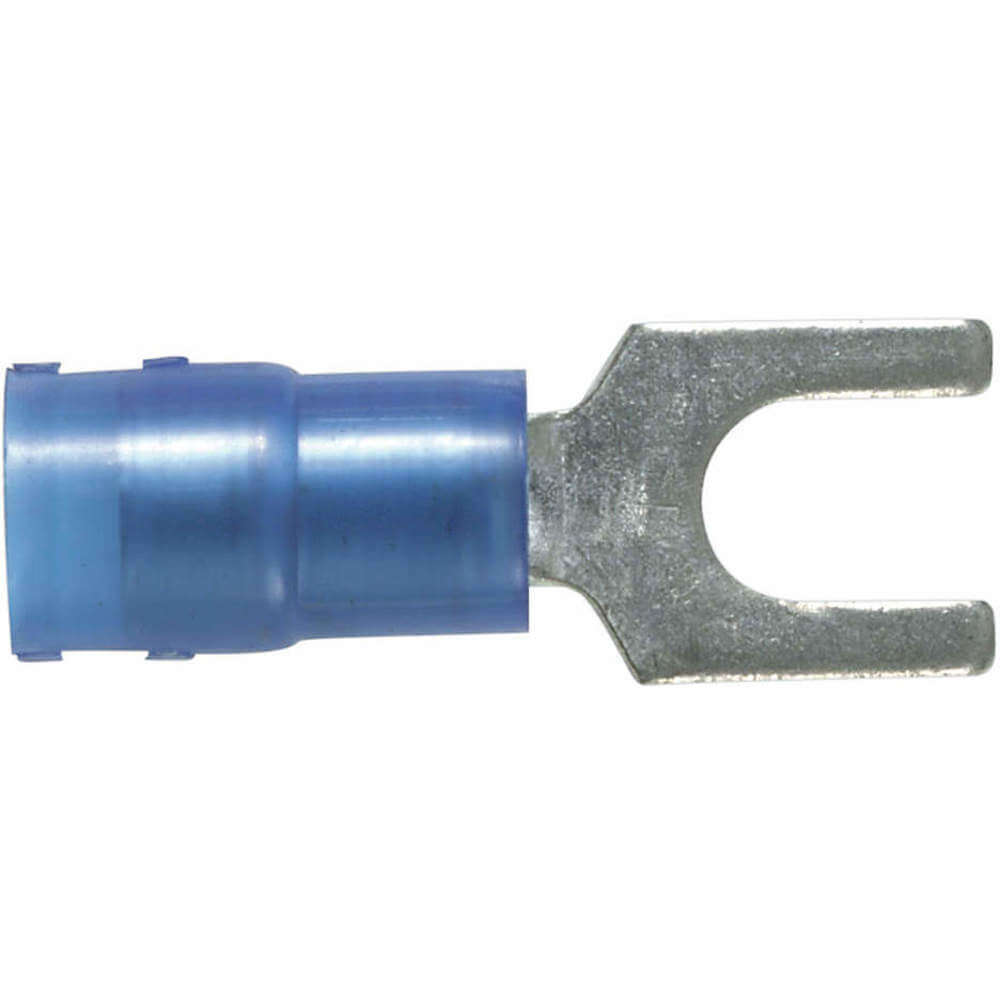

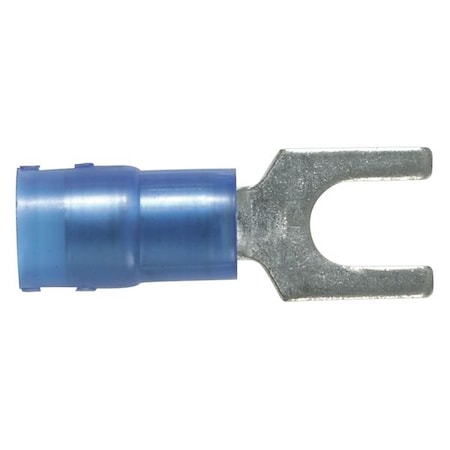

| Item, Type | Fork Terminal |
| Length - Overall | 1.020" (25.91mm) |
| Material - Insulation | Polyamide (PA), Nylon |
| Max Temp | 221 ?F |
| Max. Temp. | 221 Degrees F |
| Max. Voltage, Maximum Voltage, Volts | 600 V |
| Maximum Operating Temperature | 221 Degrees F |
| Maximum Wire Size | 14 AWG |
| Mechanical mounting | for cable |
| Mfr | Panduit Corp |
| Minimum Wire Size | 18 AWG |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Overall Length | 1.02 in |
| Package | Bulk |
| Package Quantity | 100 |
| Packaging | 100 per Package |
| Product Series | Pan-Term Terminals |
| Product Status | Active |
| Rated Voltage | 600V |
| Ring inside diameter | 6mm |
| RoHS Compliant | Yes |
| Seam, Seam Style | Grip Sleeved |
| SKU | ZO-G0287318 |
| Special Features | Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications |
| Standards | CSA Certified, UL Listed |
| Strip Length, Stud Size | 1/4 in |
| Stud Size | 1/4 in. |
| Stud/Tab Size | 1/4 Stud |
| SubCategory | Electrical |
| Terminal Shape | Standard Fork |
| Terminal Type | Spade/Fork, Standard |
| Tongue Inside Opening | 0.270" (6.86mm) |
| Tongue Length | 0.51 - 1.00 inches |
| Tongue Thickness | 0.03 in |
| Tongue Width | 0.26 - 0.50 inches |
| Tongue Width - Wire Connector | 0.44 in |
| Type of tip | fork |
| UNSPSC | 39121409 |
| UPC, UPC Code | 074983803149 |
| Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Width | 0.44 in. |
| Width - Outer Edges | 0.440" (11.18mm) |
| Wire cross-section | 1.5...2.5mm |
| Wire Gauge | 14-16 AWG |
| Wire Range | 18 to 14 AWG |
| Wire size | 16AWG...14AWG |
| Wire Size | 18-14 AWG |
| Wire Size (AWG) | 14 AWG, 15 AWG, 16 AWG, 17 AWG, 18 AWG |
| Wire Size Range | 18 AWG - 14 AWG |
| Wire Strip Length | 0.219 " |
