Parker 0.31PSR02.00

B074JDM2ZF

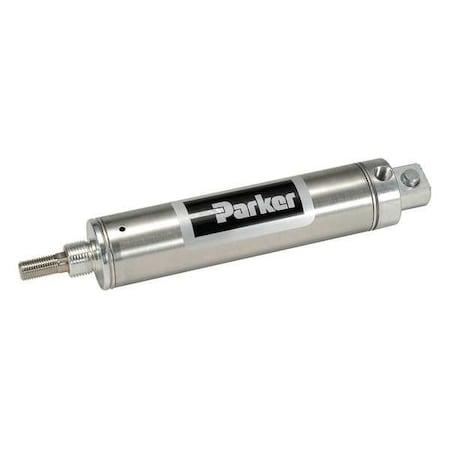

Parker 0.31PSR02.00 5/16" Bore Diameter with 2" Stroke Stainless Steel, Pivot Mounted Air Cylinder

Parker 0.31PSR02.00 5/16" Bore Diameter with 2" Stroke Stainless Steel, Pivot Mounted Air Cylinderzoom

Attributes

Key Value
:N/A
Air Cylinder MountPivot
Air Cylinder TypeRound Body
Body MaterialStainless steel
Bore Dia.5/16 in
Country of Origin (subj.United States
Cushion TypeNone
Cylinder ActionSingle Acting
Cylinder TypeRound Non-Repairable
Dimension A19/50 in
Dimension Cb0.25 in
Dimension Cc0.125 in
Dimension Cd0.125 in
Dimension E0.25 in
Dimension Kk#5-40 UNC
Dimension L0.34 in
Dimension N13/8"-24
End Cap MaterialAluminum
FeaturesNon-Switch Ready
FinishSilver
ItemAir Cylinder
Magnetic PistonNo
Max. Pressure250 psi
MountPivot
Nose Mount Thread3/8"-24
Overall Length5.06 in
Piston MaterialAluminum
Piston Rod MaterialStainless steel
Pivot Hole Dia.0.125 in
Port Size#10-32 UNF
Rod Dia.0.125 in
Rod Thread Length0.38 in
Rod Thread Size#5-40 UNC
Single Acting/Double Ac.Single Acting
Spring Retraction Force0.5 lb
Stroke2 in
Temp. Range-10 Degrees to 165 Deg.
Tube MaterialStainless steel

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG610781420.871In Stock10Parker0.0720.87 @ 1
thumbzoomWilson0.31PSR02.0025.371In StockParker - Pneumatic Division25.37 @ 1
thumbzoomRaptor SuppliesAJ2DXG46.034821In StockPARKER46.03482 @ 1
