Parker 0.44NSR02.00

mpn0.44NSR02.00
brandname: Parker
manufacturername: Parker

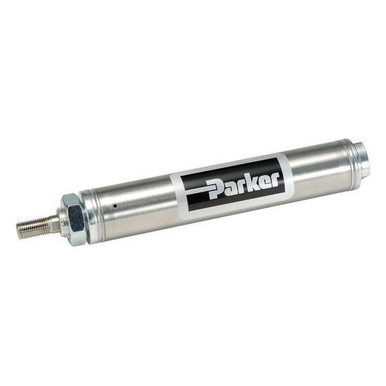

Round Air Cylin, 7/16InBore, 2InStroke

Round Air Cylin, 7/16InBore, 2InStroke

zoom

Brand: Parker
PartNumber: 0.44NSR02.00
Model: 0.44NSR02.00
PackageQuantity: 1
Binding: Misc.
Manufacturer: PARKER
Label: PARKER

Attributes

Key	Value
:	N/A
Air Cylinder Bore Dia.	7/16 in
Air Cylinder Mount	Nose
Air Cylinder Type	Round Body
Body Material	Stainless steel
Bore Dia.	7/16 in
Brand	Parker
Country of Origin (subj.	United States
Current Stock	20
Cushion Type	None
Cylinder Action	Single Acting
Cylinder Type	Round Non-Repairable
Dimension A	1/2 in
Dimension B	0.374 in
Dimension Cc	0.188 in
Dimension E	0.38 in
Dimension J	0.19 in
Dimension Kk	#10-32 UNF
Dimension N1	3/8"-24
End Cap Material	Aluminum
Features	Non-Switch Ready
Finish	Silver
International Shipping	No
Item	Air Cylinder
Magnetic Piston	No
Max. Pressure	250 psi
Mount	Nose
Mpn	0.44NSR02.00
Nose Mount Thread	3/8"-24
Overall Length	5.57 in
Piston Material	Aluminum
Piston Rod Material	Stainless steel
Port Size	#10-32 UNF
Prop 65	WARNING: Cancer and Rep.
Rod Dia.	0.188 in
Rod Thread Length	0.5 in
Rod Thread Size	#10-32 UNF
Single Acting/Double Ac.	Single Acting
SKU	ZO-G6077382
Spring Retraction Force	1 lb
Stroke	2 in
SubCategory	Pneumatics
Temp. Range	-10 Degrees to 165 Deg.
Tube Material	Stainless steel

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G6077382	17.53	1	17		Parker	0.2	17.53 @ 1
	Wilson	0.44NSR02.00	21.97	1	In Stock		Parker - Pneumatic Division		21.97 @ 1
	simsupply.com	ZO-G6077382	32.96	1	20		Parker		32.96 @ 1
	AmazonSC	B076C4VGZ8	37.1	1	In Stock		Parker		37.1 @ 1
	Raptor Supplies	AJ2DYL	45.006858	1	In Stock		PARKER		45.006858 @ 1
