Parker 0.75BRDSRM01.00

B074JDGNJ3

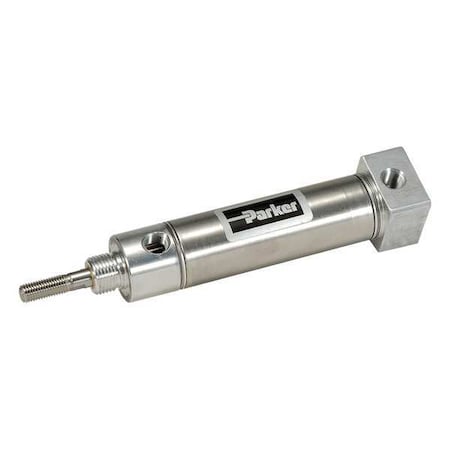

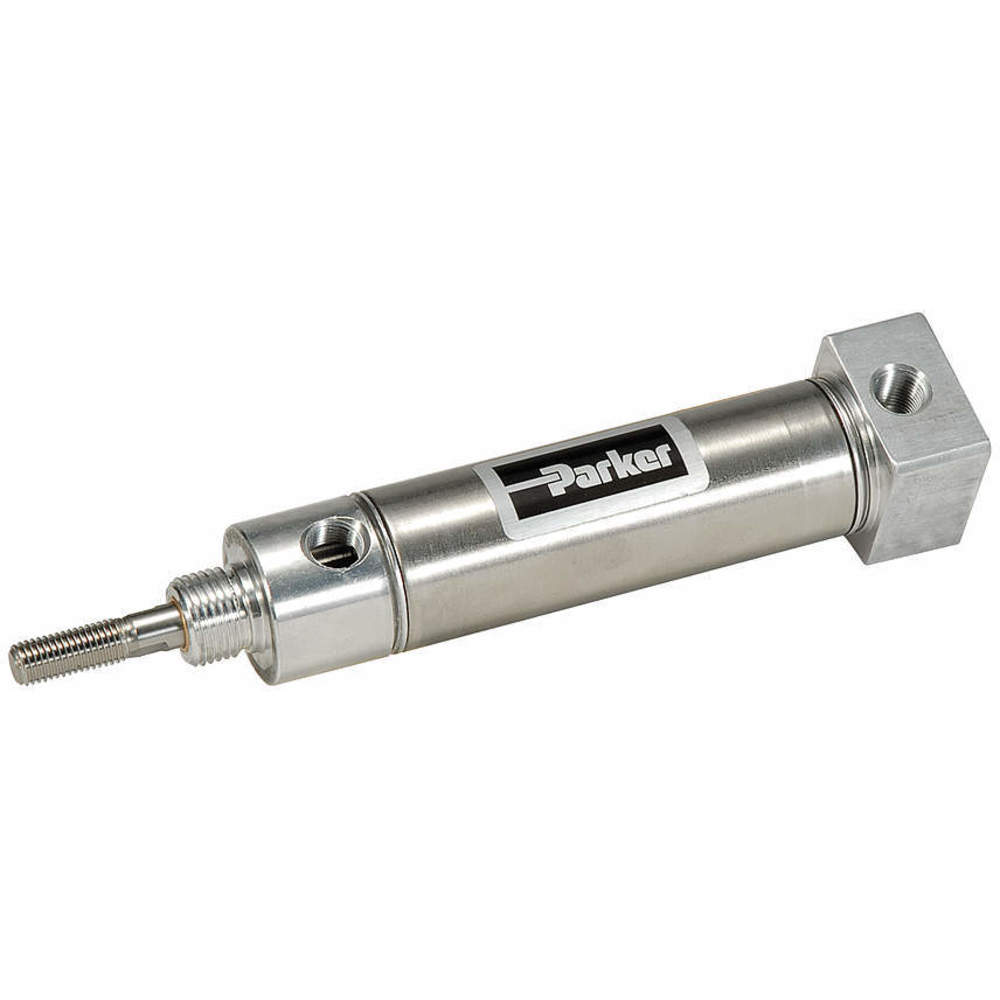

Parker 0.75BRDSRM01.00 3/4" Bore Diameter with 1" Stroke Stainless Steel, Rear Block Mounted Air Cylinder

Parker 0.75BRDSRM01.00 3/4" Bore Diameter with 1" Stroke Stainless Steel, Rear Block Mounted Air Cylinderzoom

Attributes

Key Value
:N/A
Air Cylinder Bore Dia.3/4 in
Air Cylinder MountRear Block
Air Cylinder TypeRound Body
Body Material304 stainless steel
Bore Dia.3/4 in
Country of Origin (subj.United States
Cushion TypeNone
Cylinder ActionDouble Acting
Cylinder TypeRound Non-Repairable
Dimension A3/4 in
Dimension B0.624 in
Dimension C0.25 in
Dimension Cc0.25 in
Dimension D0.22 in
Dimension Kk1/4"-28 UNF
End Cap MaterialAluminum
FeaturesSwitch Ready
FinishSilver
ItemAir Cylinder
Magnetic PistonYes
Max. Pressure250 psi
MountRear Block
Overall Length5.53 in
Piston MaterialAluminum
Piston Rod MaterialStainless Steel
Port Size1/8 in FNPT
Rod Dia.0.25 in
Rod Thread Length0.75 in
Rod Thread Size1/4-28 UNF
Single Acting/Double Ac.Double Acting
Stroke1 in
Temp. Range14 Degrees to 140 Degr.
Tube MaterialStainless Steel

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG617613442.01In Stock26Parker0.1542.0 @ 1
thumbzoomWilson0.75BRDSRM01.0049.641In StockParker - Pneumatic Division49.64 @ 1
thumbzoomsustainablesupply.comC268043664.941In StockParker0.1564.94 @ 1
thumbzoomRaptor SuppliesAG9MUG101.9693611In StockPARKER101.969361 @ 1
