Parker 159F-4-4

B01BYLUCSI

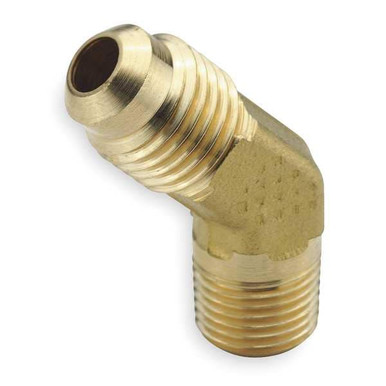

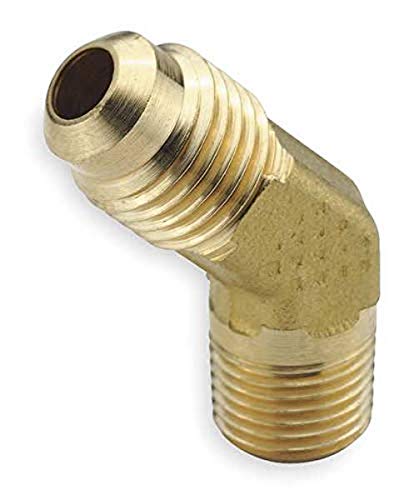

Parker Hannifin 159F-4-4 Brass 45 Degree Forged Elbow, 45 Degree Flare Fitting, 1/4" Flare Tube x 1/4" Male Thread

Parker Hannifin 159F-4-4 Brass 45 Degree Forged Elbow, 45 Degree Flare Fitting, 1/4" Flare Tube x 1/4" Male Threadzoom

Attributes

Key Value
ApplicationNatural Gases, LP Gases
Basic Pipe Fitting Mate.Metal
Basic Pipe Fitting ShapeElbow
Body Shape:Extruded
BrandParker
Compatible Tube MaterialAluminum, Brass, Copper.
Configuration Sub-Type:Male Elbow 45?
Connection TypeFlared x MNPT
Country of Origin (subj.United States
Current Stock42
End Connection TypeFlared
Fitting MaterialBrass
Fitting Pipe Size1/4 in
Fitting ShapeElbow
Fitting Side A Connecti.Flared
Fitting Side A Tube Out.1/4 in
Fitting Side B Connecti.MNPT
Fitting Side B Pipe Size1/4 in
Fitting Thread Size7/16-20
Flare Angle45 Degrees
Flare Thread Size7/16-20
Flare Type45 Degrees
For Tube OD1/4 in
For Tube Outside Diamet.1/4 in
Inch/Metric:Inch
International ShippingNo
Item45 Degree Male Elbow
Max. Pressure450 to 2800 psi
Maximum Operating Press.1,400 psi
Maximum Operating Tempe.250 Degrees F
Minimum Operating Tempe.-65 Degrees F
Mpn159F-4-4
O-Ring MaterialFluorocarbon
Outer Diameter 1:1/4 Inch
Overall Length3/4 in
Parker Division:Fluid Systems Connector.
Pipe Fitting Connection.Flare x MNPT
Pipe Size1/4 in
Pipe Size (Fittings)1/4"
Pipe Size - Pipe Fitting1/4 in
Pressure Rating:1400 PSI
SAE Compliance:J512 and J513
SKUZO-G2393316
Specific Fitting Shape45 Degrees Forged Elbo.
Specific Pipe Fitting S.45 Degree Elbow
StandardsSAE J512, SAE J513
Temp. Range-65 Degrees To 250 Deg.
Thread 1:7/16-20 UN/UNF
Thread 2 Type:NPT
Tube Fitting MaterialBrass
Tube Size1/4 in
UOM:EACH

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoombscsource.com159F4410.091In StockParker10.09 @ 1
MRO Stop27101336210.891In StockParker10.89 @ 1
thumbzoomGuardian6225194712.371In StockParker12.37 @ 1
thumbzoomWilson159F-4-413.241In StockParker - Fluid System Connectors Division13.24 @ 1
Airline HydraulicsPARKER 159F-4-414.241In StockParker14.24 @ 1
AmazonSCB01BYLUCSI15.91In StockParker Hannifin15.9 @ 1
thumbzoomNational Supply Network6225194725.351In StockParker25.35 @ 1
thumbzoomZoroG239331693.99156Parker0.7893.99 @ 1
thumbzoomsustainablesupply.comC193959095.971In StockParker0.7895.97 @ 1
thumbzoomsimsupply.comZO-G2393316114.0142Parker114.0 @ 1
thumbzoomRaptor SuppliesAB3UDL178.25084551In StockPARKER178.2508455 @ 1
