Parker 159F-8-8

mpn159F-8-8
brandname: Parker
manufacturername: Parker

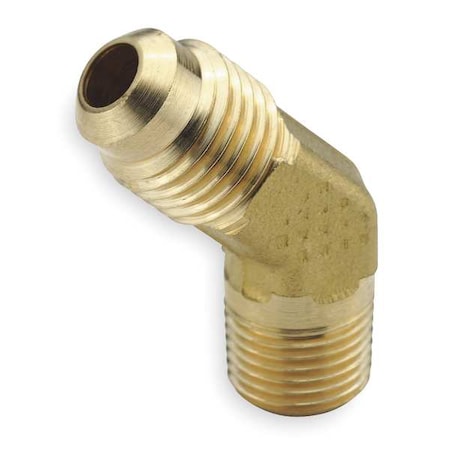

Parker Hannifin 159F-8-8 Brass 45 Degree Forged Elbow, 45 Degree Flare Fitting, 1/2" Flare Tube x 1/2" Male Thread

Parker Hannifin 159F-8-8 Brass 45 Degree Forged Elbow, 45 Degree Flare Fitting, 1/2" Flare Tube x 1/2" Male Thread

zoom

Brand: Parker
PartNumber: 159F-8-8
Model: 159F-8-8
Color: Brass
Size: 1/2 inches x 1/2 inches
PackageQuantity: 1
Binding: Misc.
Manufacturer: Parker Hannifin Corporation
Label: Parker Hannifin Corporation

Attributes

Key	Value
Application	Natural Gases, LP Gases
Basic Pipe Fitting Mate.	Metal
Basic Pipe Fitting Shape	Elbow
Body Shape	Forged
Compatible Tube Material	Aluminum, Brass, Copper.
Configuration Sub-Type	Male Elbow 45?
Connection Type	Flared x MNPT
Country of Origin (subj.	United States
End Connection Type	Flared
Fitting Material	Brass
Fitting Pipe Size	1/2 in
Fitting Shape	Elbow
Fitting Side A Connecti.	Flared
Fitting Side A Tube Out.	1/2 in
Fitting Side B Connecti.	MNPT
Fitting Side B Pipe Size	1/2 in
Fitting Thread Size	3/4-16
Flare Angle	45 Degrees
Flare Thread Size	3/4-16
Flare Type	45 Degrees
For Tube OD	1/2 in
For Tube Outside Diamet.	1/2 in
Inch/Metric	Inch
Item	45 Degree Male Elbow
Material	Brass
Max. Pressure	450 to 2800 psi
Maximum Operating Press.	750 psi
Maximum Operating Tempe.	250 Degrees F
Minimum Operating Tempe.	-65 Degrees F
O-Ring Material	Fluorocarbon
Outer Diameter 1	1/2 Inch
Overall Length	1 1/8 in
Parker Group	Fluid Connector
Pipe Fitting Connection.	Flare x MNPT
Pipe Size	1/2 in
Pipe Size (Fittings)	1/2"
Pipe Size - Pipe Fitting	1/2 in
Pressure Rating	650 PSI
SAE Compliance	J512 and J513
Specific Fitting Shape	45 Degrees Forged Elbo.
Specific Pipe Fitting S.	45 Degree Elbow
Standards	SAE J512, SAE J513
Temp. Range	-65 Degrees To 250 Deg.
Thread 1 Type	UN/UNF
Tube Fitting Material	Brass
Tube Size	1/2 in
UOM	EACH

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	AmazonSC	B077PCQHV6	10.18	1	In Stock		Parker Hannifin		10.18 @ 1
	bscsource.com	159F88	11.59	1	In Stock		Parker		11.59 @ 1
	MRO Stop	271013332	13.47	1	In Stock		Parker		13.47 @ 1
	Guardian	62252028	13.58	1	In Stock		Parker		13.58 @ 1
	Wilson	159F-8-8	16.38	1	In Stock		Parker - Fluid System Connectors Division		16.38 @ 1
	Airline Hydraulics	PARKER 159F-8-8	17.61	1	In Stock		Parker		17.61 @ 1
	Radwell	159F-8-8	26.0	10	In Stock		PARKER HANNIFIN		26.0 @ 10
	National Supply Network	62252028	26.69	1	In Stock		Parker		26.69 @ 1
	sustainablesupply.com	C1939594	51.41	1	In Stock		Parker	2.49	51.41 @ 1
	Grainger	1VED6	90.5	1	23	0	PARKER		90.5 @ 1
	Zoro	G1702933	123.11	1	28		Parker	2.49	123.11 @ 1
	Raptor Supplies	AB3UDQ	169.457301	1	In Stock		PARKER		169.457301 @ 1
