Parker 1.50DPSR04.00

B0761HCPNT

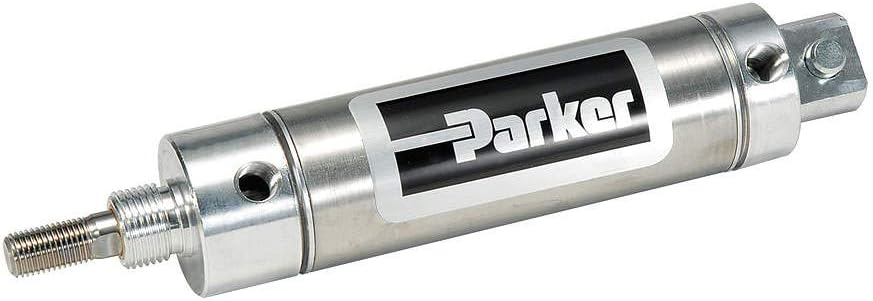

Round Air Cylin, 1-1/2InBore, 4InStroke

Round Air Cylin, 1-1/2InBore, 4InStrokezoom

Attributes

Key Value
Air Cylinder Bore Dia.1 1/2 in
Air Cylinder MountNose and Pivot
Air Cylinder TypeRound Body
ASINB0761HCPNT
Body MaterialStainless steel
Bore Dia.1 1/2 in
BrandParker
Brand NameParker
Country of Origin (subj.United States
Current Stock57
Cushion TypeNone
Cylinder ActionDouble Acting
Cylinder TypeRound Non-Repairable, N.
Dimension A3/4 in
Dimension B0.749 in
Dimension Cb0.62 in
Dimension Cc0.437 in
Dimension Cd0.376 in
Dimension D0.38 in
Dimension E0.62 in
Dimension Kk7/16"-20 UNF
Dimension L0.50 in
Dimension N13/4"-16
End Cap MaterialAluminum
FeaturesNon-Switch Ready
FinishSilver
International ShippingNo
ItemAir Cylinder
Item model number1.50DPSR04.00
Magnetic PistonNo
Max. Pressure250 psi
Maximum Stroke4 inch
MountNose and Pivot
Mpn1.50DPSR04.00
Nose Mount Thread3/4"-16
Overall Length9.5 in
Piston MaterialAluminum
Piston Rod MaterialStainless steel
Pivot Hole Dia.0.375 in
Port Size1/8 in FNPT
Promotion RestrictionNot eligible for promot.
Prop 65WARNING: Cancer and Rep.
Rod Dia.0.437 in
Rod End StyleStandard Rod End (Male)
Rod Thread Length0.75 in
Rod Thread Size7/16-20 UNF
Single Acting/Double Ac.Double Acting
SKUZO-G6112513
Stroke4 in
SubCategoryPneumatics
Temp. Range-10 Degrees to 165 Deg.
Tube MaterialStainless steel
UOMEACH

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0761HCPNT47.011In Stock2Parker47.01 @ 1
thumbzoomAmazonSCB0761HCPNT51.371In StockParker4.0151.37 @ 1
thumbzoomsustainablesupply.comC168534857.21In StockParker1.0557.2 @ 1
thumbzoomWilson1.50DPSR04.0068.51In StockParker - Pneumatic Division68.5 @ 1
thumbzoomRaptor SuppliesAJ2EHX87.8907511In StockPARKER87.890751 @ 1
thumbzoomZoroG611251389.21756Parker1.0589.2 @ 1
simsupply.comZO-G6112513171.69157Parker171.69 @ 1
