Parker 1.50DPSR06.00

B076C9DT9C

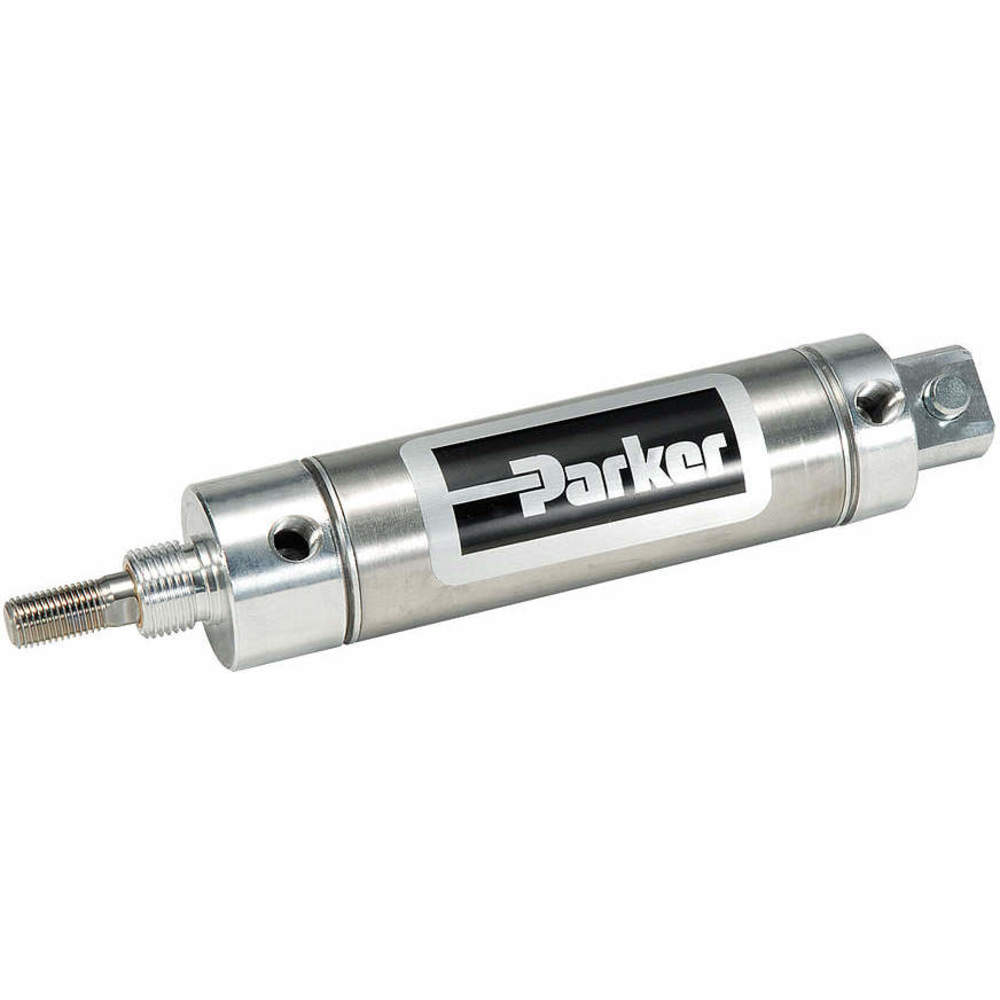

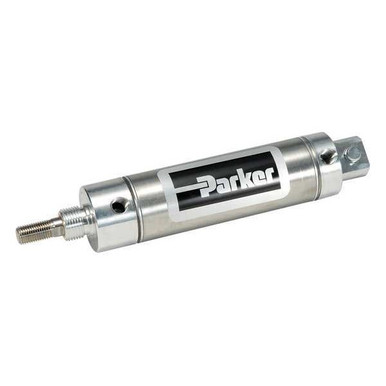

1-1/2" Bore Round Double Acting Air Cylinder 6" Stroke

1-1/2" Bore Round Double Acting Air Cylinder 6" Strokezoom

Attributes

Key Value
Air Cylinder Bore Dia.1 1/2 in
Air Cylinder MountNose and Pivot
Air Cylinder TypeRound Body
Body MaterialStainless steel
Bore Dia.1 1/2 in
BrandParker
Country of Origin (subj.United States
Current Stock23
Cushion TypeNone
Cylinder ActionDouble Acting
Cylinder TypeRound Non-Repairable, N.
Dimension A3/4 in
Dimension B0.749 in
Dimension Cb0.62 in
Dimension Cc0.437 in
Dimension Cd0.376 in
Dimension D0.38 in
Dimension E0.62 in
Dimension Kk7/16"-20 UNF
Dimension L0.50 in
Dimension N13/4"-16
End Cap MaterialAluminum
FeaturesNon-Switch Ready
FinishSilver
International ShippingNo
ItemAir Cylinder
Magnetic PistonNo
Max. Pressure250 psi
Maximum Stroke6 inch
MountNose and Pivot
Mpn1.50DPSR06.00
Nose Mount Thread3/4"-16
Overall Length11.5 in
Piston MaterialAluminum
Piston Rod MaterialStainless steel
Pivot Hole Dia.0.375 in
Port Size1/8 in FNPT
Promotion RestrictionNot eligible for promot.
Prop 65WARNING: Cancer and Rep.
Rod Dia.0.437 in
Rod End StyleStandard Rod End (Male)
Rod Thread Length0.75 in
Rod Thread Size7/16-20 UNF
Single Acting/Double Ac.Double Acting
SKUZO-G6154513
Stroke6 in
SubCategoryPneumatics
Temp. Range-10 Degrees to 165 Deg.
Tube MaterialStainless steel
UOMEACH

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG615451370.9711Parker1.2570.97 @ 1
thumbzoomWilson1.50DPSR06.0075.811In StockParker - Pneumatic Division75.81 @ 1
Grainger49J78884.5160PARKER84.5 @ 1
thumbzoomsustainablesupply.comC168535088.321In StockParker1.2588.32 @ 1
thumbzoomsimsupply.comZO-G6154513107.44123Parker107.44 @ 1
thumbzoomRaptor SuppliesAJ2EHZ133.86970351In StockPARKER133.8697035 @ 1
