Parker 46F-3-2

mpn46F-3-2
brandname: PARKER
manufacturername: PARKER

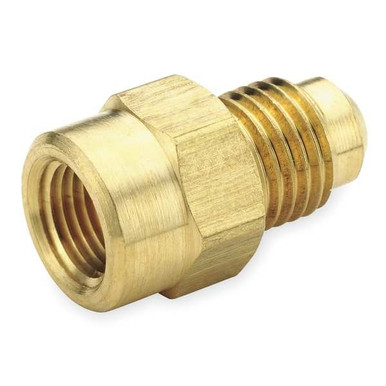

Parker 46F-3-2 45 Degree Fitting, Flare to Female Pipe, Brass, Flare and Female Pipe Connector, 3/16" and 1/8"

Parker 46F-3-2 45 Degree Fitting, Flare to Female Pipe, Brass, Flare and Female Pipe Connector, 3/16" and 1/8"

zoom

Brand: Parker
PartNumber: 46F-3-2
Model: 46F-3-2
Color: Brass
Size: 3/16" and 1/8"
PackageQuantity: 1
Binding: Misc.
Manufacturer: Parker
Label: Parker

Attributes

Key	Value
Application	Natural Gases, LP Gases
Basic Pipe Fitting Mate.	Metal
Basic Pipe Fitting Shape	Adapter
Brand	Parker
Compatible Tube Material	Aluminum, Brass, Copper.
Configuration Sub-Type	Female Connector
Connection Type	Inverted Flare x FNPT
Country of Origin (subj.	United States
Current Stock	17
End Connection Type	Flared
Fitting Material	Brass
Fitting Pipe Size	1/8 in
Fitting Shape	Adapter
Fitting Side A Connecti.	Inverted Flare
Fitting Side A Tube Out.	3/16 in
Fitting Side B Connecti.	FNPT
Fitting Side B Pipe Size	1/8 in
Fitting Thread Size	3/8-24
Flare Angle	45 Degrees
Flare Thread Size	3/8-24
Flare Type	45 Degrees
For Tube OD	3/16 in
For Tube Outside Diamet.	3/16 in
Hex Size	9/16 in
Inch/Metric	Inch
International Shipping	No
Item	Female Connector
Material	Brass
Max. Pressure	450 to 2800 psi
Maximum Operating Press.	1,900 psi
Maximum Operating Tempe.	250 Degrees F
Minimum Operating Tempe.	-65 Degrees F
Mpn	46F-3-2
O-Ring Material	Fluorocarbon
Outer Diameter 1	3/16 Inch
Overall Length	15/16 in
Parker Division	Fluid Systems Connector.
Pipe Fitting Connection.	Flare x FNPT
Pipe Size	1/8 in
Pipe Size (Fittings)	1/8"
Pipe Size - Pipe Fitting	1/8 in
Pressure Rating	1400 PSI
Prop 65	WARNING: Cancer and Rep.
SAE Compliance	J512 and J513
SKU	ZO-G0980524
Specific Fitting Shape	Straight Adapter
Specific Pipe Fitting S.	Adapter
Standards	SAE J512, SAE J513
Temp. Range	-65 Degrees To 250 Deg.
Thread 2 Type	NPT
Tube Fitting Material	Brass
Tube Size	3/16 in
UOM	EACH
