Parker 46F-4-2

mpn46F-4-2
brandname: PARKER
manufacturername: PARKER

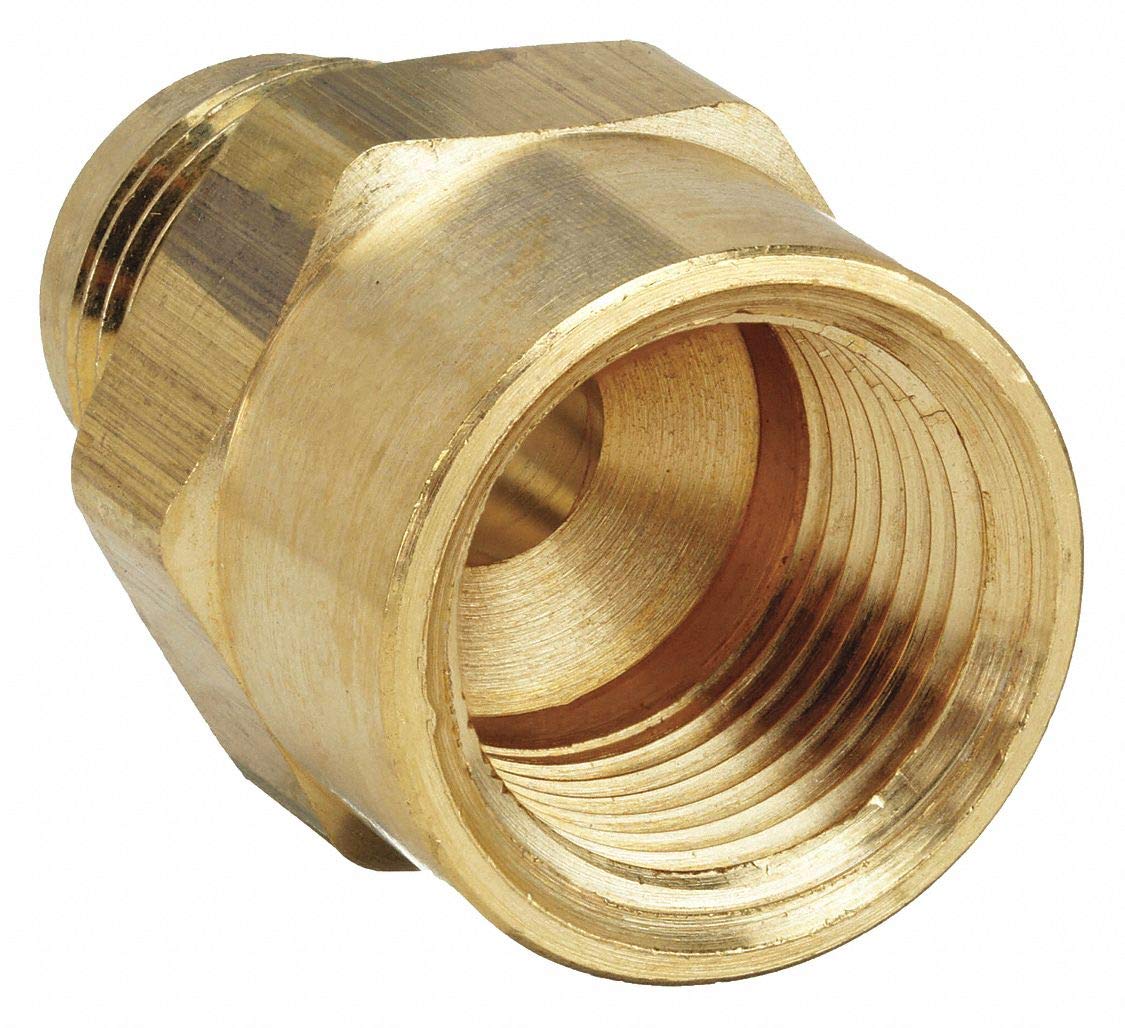

Parker Hannifin 46F-4-2 Brass Female Connector, 45 Degree Flare Fitting, 1/4" Flare Tube x 1/8" Female Thread

Parker Hannifin 46F-4-2 Brass Female Connector, 45 Degree Flare Fitting, 1/4" Flare Tube x 1/8" Female Thread

zoom

Brand: Parker
PartNumber: 46F-4-2
Model: 46F-4-2
Color: Brass
Size: 1/4 inches x 1/8 inches
PackageQuantity: 1
Binding: Misc.
Manufacturer: Parker Hannifin Corporation
Label: Parker Hannifin Corporation

Attributes

Key	Value
Application	Natural Gases, LP Gases
Basic Pipe Fitting Mate.	Metal
Basic Pipe Fitting Shape	Adapter
Compatible Tube Material	Aluminum, Brass, Copper.
Configuration Sub-Type:	Female Connector
Connection Type	Flared x FNPT
Country of Origin (subj.	United States
End Connection Type	Flared, Threaded
Fitting Material	Brass
Fitting Pipe Size	1/8 in
Fitting Shape	Adapter
Fitting Side A Connecti.	Flared
Fitting Side A Tube Out.	1/4 in
Fitting Side B Connecti.	FNPT
Fitting Side B Pipe Size	1/8 in
Fitting Thread Size	7/16-20
Flare Angle	45 Degrees
Flare Thread Size	7/16-20
Flare Type	45 Degrees
For Tube OD	1/4 in
For Tube Outside Diamet.	1/4 in
Hex Size	9/16 in
Inch/Metric:	Inch
Item	Female Connector
Max. Pressure	1400 PSI
Maximum Operating Press.	1,400 psi
Maximum Operating Tempe.	250 Degrees F
Minimum Operating Tempe.	-65 Degrees F
O-Ring Material	Fluorocarbon
Outer Diameter 1:	1/4 Inch
Overall Length	1 in
Parker Division:	Fluid Systems Connector.
Pipe Fitting Connection.	Flare x FNPT
Pipe Size	1/8 in
Pipe Size (Fittings)	1/8"
Pipe Size - Pipe Fitting	1/8 in
Pressure Rating:	1400 PSI
SAE Compliance:	J512 and J513
Specific Fitting Shape	Straight Adapter
Specific Pipe Fitting S.	Adapter
Standards	SAE J512, SAE J513
Temp. Range	-65 Degrees To 250 Deg.
Thread 1:	7/16-20 UN/UNF
Thread 2 Type:	NPT
Tube Fitting Material	Brass
Tube Size	1/4 in
UOM:	EACH

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Radwell	46F-4-2	1.83	25	54		PARKER	0.04	1.83 @ 25
	MRO Stop	271010717	1.99	1	50		Parker		1.99 @ 1
	Wilson	46F-4-2	2.42	1	50		Parker - Fluid System Connectors Division		2.42 @ 1
	Guardian	62250386	2.48	1	50		Parker		2.48 @ 1
	Airline Hydraulics	PARKER 46F-4-2	2.61	1	38		Parker		2.61 @ 1
	Zoro	G2863393	9.94	1	102		Parker	0.25	9.94 @ 1
	Amazon	B00QW2TODE	10.78	1	50		Parker Hannifin		10.78 @ 1
	National Supply Network	62250386	13.06	5	50		Parker		13.06 @ 5
	sustainablesupply.com	C1939636	16.51	1	50		Parker	0.25	16.51 @ 1
	Raptor Supplies	AC2YJU	30.727125	1	38		PARKER		30.727125 @ 1
