Parker 46F-4-6

mpn46F-4-6
brandname: PARKER
manufacturername: PARKER

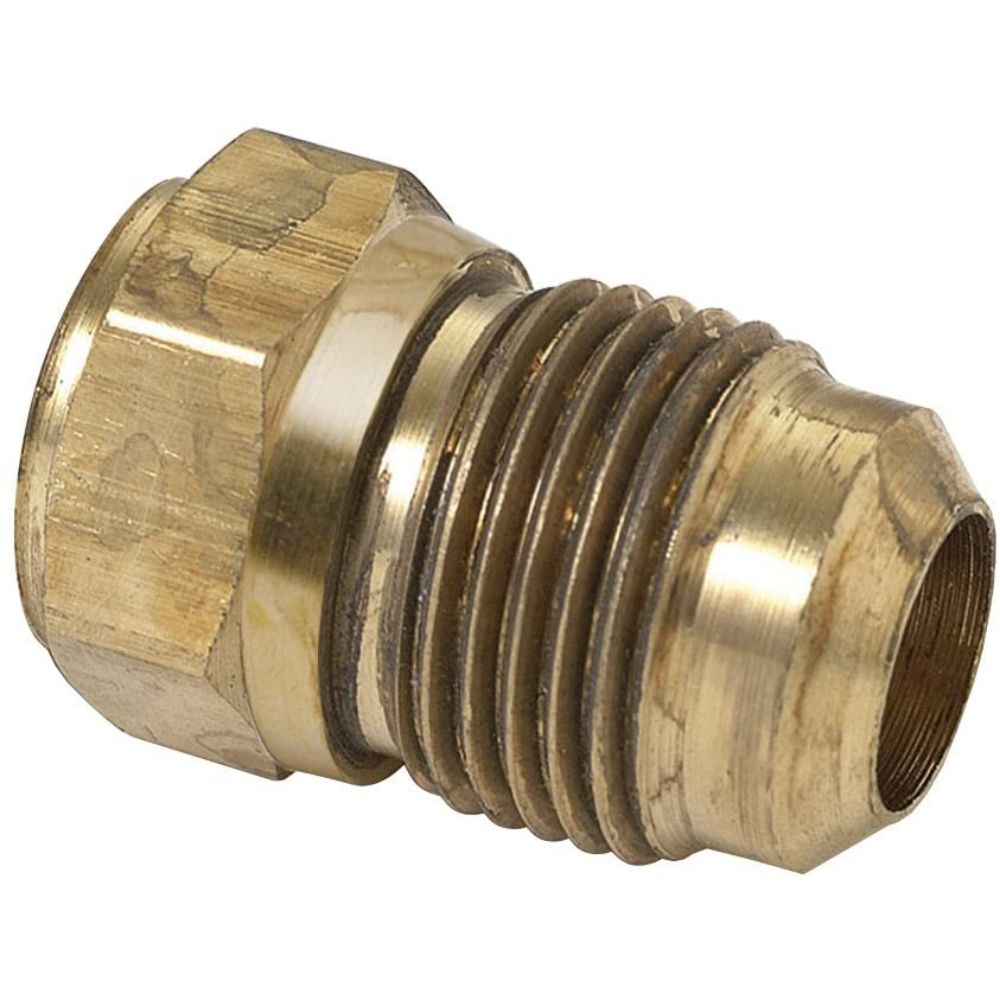

Parker Hannifin 46F-4-6 Brass Female Connector, 45 Degree Flare Fitting, 1/4" Flare Tube x 3/8" Female Thread

Parker Hannifin 46F-4-6 Brass Female Connector, 45 Degree Flare Fitting, 1/4" Flare Tube x 3/8" Female Thread

zoom

Brand: Parker
PartNumber: 46F-4-6
Model: 46F-4-6
Color: Brass
Size: 1/4 inches x 3/8 inches
PackageQuantity: 1
Binding: Misc.
Manufacturer: Parker Hannifin Corporation
Label: Parker Hannifin Corporation

Attributes

Key	Value
Application	Natural Gases, LP Gases
Basic Pipe Fitting Mate.	Metal
Basic Pipe Fitting Shape	Adapter
Compatible Tube Material	Aluminum, Brass, Copper.
Configuration Sub-Type:	Female Connector
Connection Type	Inverted Flare x FNPT
Country of Origin (subj.	United States
End Connection Type	Flared
Fitting Material	Brass
Fitting Pipe Size	3/8 in
Fitting Shape	Adapter
Fitting Side A Connecti.	Inverted Flare
Fitting Side A Tube Out.	1/4 in
Fitting Side B Connecti.	FNPT
Fitting Side B Pipe Size	3/8 in
Fitting Thread Size	7/16"-20, 7/16-20
Flare Angle	45 Degrees
Flare Thread Size	7/16-20
Flare Type	45 Degrees
For Tube OD	1/4 in
For Tube Outside Diamet.	1/4 in
Hex Size	13/16 in
Inch/Metric:	Inch
Item	Female Connector
Max. Pressure	450 to 2800 psi
Maximum Operating Press.	1,400 psi
Maximum Operating Tempe.	250 Degrees F, 250 Deg.
Minimum Operating Tempe.	-65 Degrees F, -65 Deg.
O-Ring Material	Fluorocarbon
Outer Diameter 1:	1/4 Inch
Overall Length	1 1/4 in
Parker Division:	Fluid Systems Connector.
Pipe Fitting Connection.	Flare x FNPT
Pipe Size	3/8 in
Pipe Size (Fittings)	3/8"
Pipe Size - Pipe Fitting	3/8 in
Pressure Rating:	1200 PSI
SAE Compliance:	J512 and J513
Specific Fitting Shape	Straight Adapter
Specific Pipe Fitting S.	Adapter
Standards	SAE J512, SAE J513
Temp. Range	-65 Degrees To 250 Deg.
Thread 1:	7/16-20 UN/UNF
Thread 2 Type:	NPT
Tube Fitting Material	Brass
Tube Size	1/4 in
UOM:	EACH

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	AmazonSC	B00QW2G7VQ	3.4	1	10		Parker Hannifin		3.4 @ 10
	bscsource.com	46F46	7.69	1	10		Parker		7.69 @ 10
	acandb.com	A46CE	7.75	1	10		PARKER HANNIFIN CORP		7.75 @ 10
	Guardian	62250402	8.34	1	10		Parker		8.34 @ 10
	MRO Stop	9271010147	8.55	1	10		Parker		8.55 @ 10
	Wilson	46F-4-6	10.39	1	10		Parker - Fluid System Connectors Division		10.39 @ 10
	Airline Hydraulics	PARKER 46F-4-6	11.18	1	10		Parker		11.18 @ 10
	National Supply Network	62250402	11.449	1	10		Parker		11.449 @ 10
	Radwell	46F-4-6	18.0	10	10		PARKER HANNIFIN		18.0 @ 10
	Zoro	G3099372	36.2	1	59		Parker	0.86	36.2 @ 10
	grainger.ca	GUS1VDV6	61.63544552	1	10		PARKER	0.86	61.63544552 @ 10
	Raptor Supplies	AB3TYB	96.3714375	1	10		PARKER		96.3714375 @ 10
