mpn:
brand:
manufacturer:
MPN:
Weight:
0.69
Weight:
0.69 LB
Preferred Price:
75.7
Price:
75.7
Min Simple Price:
41.37
Absolute Min Price:
58.74
Min Price:
58.74
Dimensions:
[3.0, 3.0, 2.0]
qty:
21
simpleSku:
DA3NzI:::8-12 C5BU-S
sku:
DA3NzI::YY:8-12 C5BU-S@y0
condition:
11
seller:
Misumi USA
amzMan:
parker hannifin
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Application | Air |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Brand, Displayed Brand | PARKER |
| Catalog Page | N/A |
| Compatible Fitting Brands, Series | Ferulok |
| Compatible Tube Hardness | 72 HRB |
| Compatible Tube Material | Monel Nickel Alloy; Stainless Steel; Steel |
| Compatible Tube Wall Thickness | 0.12 in |
| Compression Thread Size, Thread Size, Thread Size B | 1-1/16-12 |
| Configuration Sub-Type | Straight Thread Elbow Flareless / SAE-ORB |
| Country of Origin | USA |
| End 1 | 1/2 Inch |
| End 2 Type | UN/UNF-2A |
| Finish/Coating | Zinc Nickel-Plated |
| Fitting Connection Type, Pipe Fitting Connection Type | Compression x Male SAE-ORB |
| Fitting Material, Material | Steel |
| Fitting Pipe Size, Fitting Side A Tube Outer Diameter, Fitting Side B Pipe Size, For Tube Outside Diameter, Pipe Size, Tube Size | 1/2 in |
| Fitting Side A Connection Type | Male Flareless Bite |
| Fitting Side B Connection Type | Male SAE-ORB |

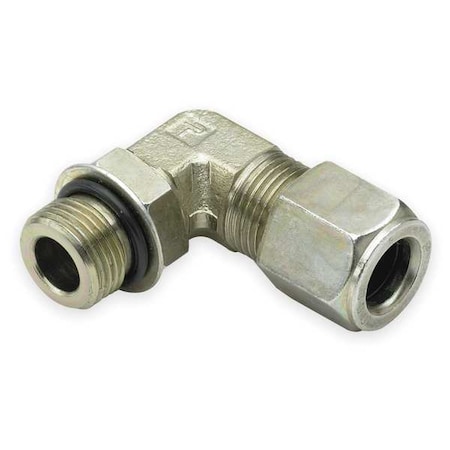

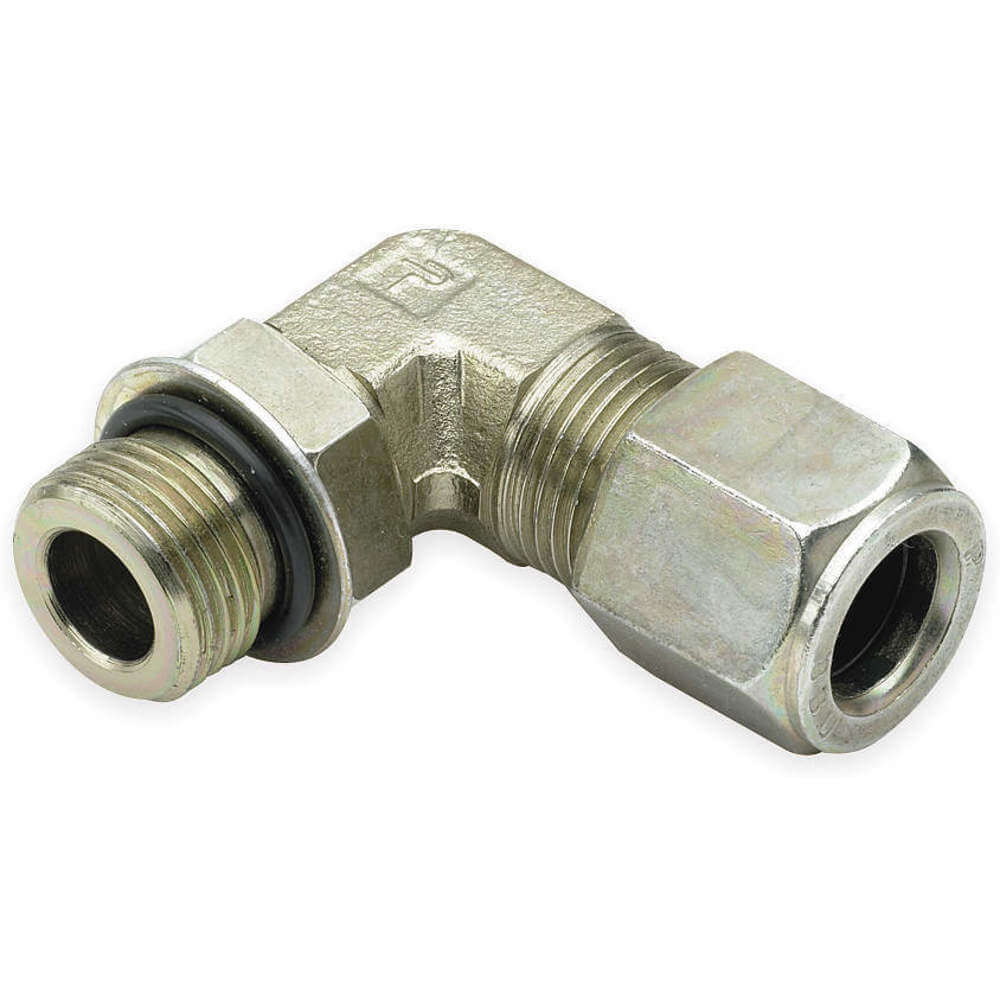

| Item | 90 Degree Straight Thread Elbow |
| Item? | 1DDC9 |
| Manufacturer Part Number, Mfr. Model? | 8-12 C5BU-S |
| Max. Pressure | 4000 psi |
| Maximum Operating Pressure | 4,000 psi |
| Maximum Operating Temperature | 500 Degrees F, 500 ?F |
| Minimum Operating Temperature | 65 ?F |
| Overall Length | 1 7/16 in, 1-7/16 in |
| Parker Group | Fluid Connector |
| Specific Fitting Shape | 90 Degrees Elbow Adapter, 90? Elbow Adapter |
| Specific Pipe Fitting Shape | 90 Degrees Elbow |
| Standards | SAE J514 |
| System of Measurement | Imperial |
| Temp. Range | -30 Degrees to 250 Degrees F |
| Thread Size B, Threading Size | 1 1/16-12 |
| Tube Fitting Material | Zinc Plated Steel |
| Tube Fitting/Adapter Type | Bite Type, Ferulok Flareless |
| UNSPSC | 40142604 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Misumi USA | 8-12 C5BU-S | 41.37 | 41.37 | 1 | In Stock | Parker Hannifin | 41.37 @ Qty: 1+ | ||
| MRO Stop | 9276018302 | 56.1 | 56.1 | 1 | In Stock | Parker | 56.1 @ Qty: 1+ | |||
 | Zoro | G2655502 | 71.29 | 71.29 | 1 | In Stock | Parker | 0.65 | 71.29 @ Qty: 1+ | |
 | Wilson | 8-12 C5BU-S | 76.49 | 76.49 | 1 | In Stock | Parker - Tube Fittings Division | 76.49 @ Qty: 1+ | ||
 | sustainablesupply.com | C1938345 | 76.58 | 76.58 | 1 | In Stock | Parker | 0.65 | 76.58 @ Qty: 1+ | |
| Airline Hydraulics | PARKER 8-12 C5BU-S | 109.16 | 109.16 | 1 | In Stock | Parker | 109.16 @ Qty: 1+ | |||
| Grainger | 1DDC9 | 110.61 | 110.61 | 1 | In Stock | PARKER | 110.61 @ Qty: 1+ | |||
 | National Supply Network | 09106923 | 111.93 | 111.93 | 1 | In Stock | Parker | 111.93 @ Qty: 1+ | ||
 | bscsource.com | 09106923 | 122.09 | 122.09 | 1 | In Stock | Parker | 122.09 @ Qty: 1+ | ||
 | Raptor Supplies | AA9HHB | 154.484811 | 154.484811 | 1 | In Stock | PARKER | 154.484811 @ Qty: 1+ |
