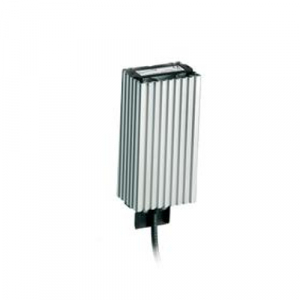

<p><strong>Pfannenberg, 17007505007, FLH 075W Mini Radiant Heater with Extruded Aluminum Body </strong> </p> <p>FLH Series of Heater are available as a radiant heater or as a forced air heater for larger wattages. Heater are designed to protect electronics from low temperatures and moisture caused by high humidity or rapid temperature changes. Housing:<strong> </strong> Anodized aluminum </p> <p><strong>Features: </strong> </p> <ul><li>Flexible Mounting Options. Unit can be connected to a standard DIN rail without tools using the included snap fastener. </li> <li>Durable Long-Lasting. With its rugged design and solid construction you can count on the FLH Heater to perform consistently over a long period of time. </li> <li>Reduced Installation Time. Save time and money when installing or moving the unit with our UL listed quick connects. </li> <li>UL Certified. Heater are UL Recognized allowing for integration into UL 508A panels. </li> </ul>
Attributes
| Key ^ | Value |
|---|---|
| Approval | UL, cUL, CE |
| Clamping range of connecting terminal | Single wire: 2 x 0.5 - 2.5 mm?, fine-stranded: (tinned, with ferrule, with pin cable lug) 2 x 0.5 - 1.5 mm? |
| Connection | Plug terminal connection |
| Device construction | Aluminum profile, brightly anodised |
| Duty cycle | 100% |
| Functional range | 110 - 250 V AC 50 / 60 Hz |
| Heating performance (Ta = +68 ?F/+20 ?C), Power consumption | 75 W |
| Installation orientation | as desired, preferably vertical |
| Max. surface temperature | 248 ?F (120 ?C) |
| Operating temperature range | -40 ... +158 ?F (-40 ... +70 ?C) |
| Protection class | I |
| Rated voltage | 230 V AC 50 / 60 Hz |
| Starting current | 4.5 A |
| Sytem of protection for intended purpose of use | IP20 (plug terminal connector) |
| Type of mounting | Snap fastening for 35mm profile bars according to EN 60715 |
| Weight | 510 g |
