Pfannenberg 17207000000
Pfannenbergzoom
manufacturer:
Description:

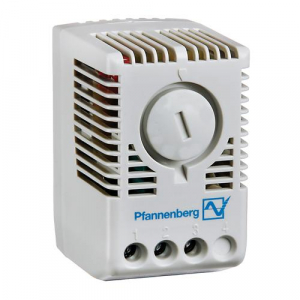

<p><strong>Pfannenberg, 17207000000, FLZ 600 Mechanical Hygrostat, 24-250 V </strong> </p> <p>Ideal for controlling cabinet Heater and Filterfan when a relative humidity is exceeded. Hygrostat help to keep the relative humidity within an enclosure above the dew point<strong>, </strong> preventing the condensation of water on electrical components and the corrosion of unprotected sheet metal. Housing:<strong> </strong> ABS high temperature plastic </p> <p><strong>Features: </strong> </p> <ul><li>Flexible Mounting Options. Unit can be direct mounted or connected to a standard DIN rail without tools using the included snap fastener. </li> <li>Ultra Compact Design. At slightly over 1.5" wide and just over 3" tall, this compact design easily installs into areas that have a limited installation space. </li> <li>Durable Long-Lasting. With its rugged design and solid construction you can count on the FLZ Hygrostats to perform consistently over a long period of time. </li> <li>Energy Saving Solution. The FLZ 600 Hygrostat can control the operation of a Filterfan or heater, turning it on when a preset relative humidity is exceeded. This provides an environmental balance through energy reduction. The FLZ 610 includes an additional control for operation of a Filterfan or heater, turning it off and on based on a set temperature. </li> <li>UL Certified. Thermostats are UL Recognized to NITW2 and NITW8 standards allowing for easy integration into UL 508A panels. </li> </ul>

Attributes

Key ^Value
ApprovalsUL, cUL
ColorRAL 7035
Connectionscrew terminal for cable cross-section 0.5 to 2.5 mm?
Device implementationmechanical hygrostat
Operating temperature range+30 ... +140 ?F (0 ... +60 ?C)
Probe typepolyamide belt
Setting range40 - 90 % R.H
Storage temperature range-4 ... +179 ?F (-20 ... +80 ?C)
Suitable for the operation offan and heater
Switching temperature differenceapprox. 5 %
System of protectionIP 20
Type of contactchangeover with spring contact
Type of mountingsnap fastening for 35mm profile bars according to EN 60715
Weight55 g
