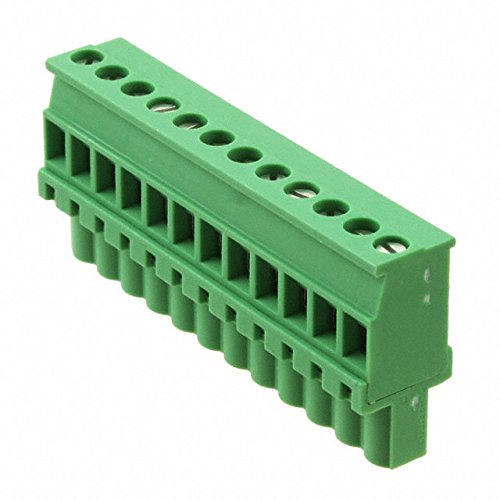

Phoenix Contact 1792621 Conn; Term Blk; Plug; Screw; 12; 5 mm; 30-12 AWG; 10 A; 300 V; PA

Phoenix Contact 1792621 Conn; Term Blk; Plug; Screw; 12; 5 mm; 30-12 AWG; 10 A; 300 V; PAzoom

Attributes

Key Value
Agency ApprovalsUL, cULus, CSA, VDE, UL.
Alternate Mfr Part Numb.MVSTBW 2 5/12-ST
Alternate Part No.651-1792621
ApprovalsUL Recognized ; VDE Gut.
BrandPhoenix Contact
CategoryConnectors, Interconnec.
ColorGreen
Contact Material-
Contact Mating FinishTin
Contact Tail Length-
Cross Section Area2.5 mm2
Cross-Section Area2.5 mm?? (Nom.)
Current - IEC12A
Current - UL15 A
Current Rating12 A
Dimensions55 +5 L x 12.6 W x 26 D.
Family NameCOMBI Plug Family
FeaturesRetention Latches (Non-.
Flammability RatingUL 94 V-0
Header Orientation-
Housing MaterialPolyamide (PA), Nylon, .
Ingress Protection-
Insulation Height0.496" (12.60mm)
Insulation MaterialPA
Length7 mm
LevelSingle Level
ManufacturerPhoenix Contact
Manufacturer Part No.1792621
Material Flammability R.UL94 V-0
Material, InsulationPA
MfrPhoenix Contact
Mounting TypeFree Hanging (In-Line),.
Number of Contacts12
Number of Levels1, 1 Level
Number of Positions12 Position, 12
Operating ForcePA
Operating Temperature-
PackageBulk
Part # AliasesMVSTBW_2,5/12-ST MVSTBW.
Pin Spacing5 mm, 5 mm(0.197 in)
Pitch5 mm, 0.197" (5.00mm)
Plug Wire Entry270?
Positions Per Level12
Primary TypePCB Mount, Wire to Board
Product CategoryPluggable Terminal Bloc.
Product StatusActive
Screw SizeM3
SeriesCOMBICON MVSTBW, COMBIC.
Stripping Length7 mm
Surge Voltage4 kV
TerminationScrew, Socket
Termination StyleThrough Hole, Screw - R.
Tightening Torque0.5 Nm (Min.)
Torque - Screw0.5-0.6 Nm (4.4-5.3 Lb-.
Torque, Tightening0.5 Nm (Min.)
TradenameCOMBICON Control
TypePlug, Plug, Female Sock.
Unit Weight800 g
UPC Code4017918045050
Voltage - IEC630 V
Voltage - UL300 V
Voltage Rating250 V, 320 V
Voltage, Surge4 kV
Wire EntryTop
Wire Gauge Max12
Wire Gauge Min24
Wire Gauge or Range - A.12-30 AWG
Wire Gauge or Range - m.0.2-2.5mm?
Wire Gauge Range24-12
Wire Size12 AWG, 12-30 AWG
Wire Strip Length7mm
Wire Termination TypeScrew

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
electricautomationnetwork.comMVSTBW 2,5/12-ST7.5915PHOENIX_CONTACT7.59 @ 5
WaldomPHOENIX CONTACT 17926218.321035PHOENIX CONTACT8.32 @ 10
Onlinecomponents.com17926219.77142Phoenix Contact9.77 @ 5
Radwell179262110.69505PHOENIX CONTACT10.69 @ 50
HotendaH154286211.7315Phoenix Contact11.73 @ 5
thumbzoomCarlton Bates Company7803739739611.7815PHOENIX CONTACT11.78 @ 5
industrialautomationparts.comAE-00848612.0215Phoenix Contact12.02 @ 5
MRO Stop75300126813.46150Phoenix Contact13.46 @ 5
Airline HydraulicsPHOENIX 179262114.01270Phoenix Contact14.0 @ 5
thumbzoomswatee.com179262116.031165Phoenix Contact16.03 @ 5
us.rs-online.com7005483816.2515Phoenix Contact16.25 @ 5
Digi-Key26042917.4215Phoenix Contact17.42 @ 5
AmazonSCB07MF5QKGV91.5315Phoenix..91.53 @ 5
