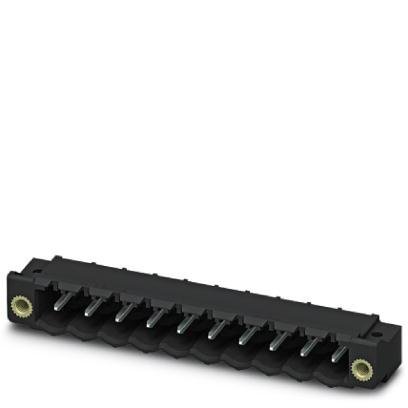

Phoenix Contact 1792724 CC 2, 5/12-GF-5, 08-LR P26THR (1 piece)

Phoenix Contact 1792724 CC 2, 5/12-GF-5, 08-LR P26THR (1 piece)zoom

Attributes

Key Value
Alternate Mfr Part Numb.CC 2 5/12-GF-5 08-LR P2.
Alternate Part No.651-1792724
ApprovalsVDE Gutachten mit Ferti.
BrandPhoenix Contact
CategoryConnectors, Interconnec.
ColorBlack
Contact Material-
Contact Mating FinishTin
Contact PlatingTin
Contact Tail Length0.102" (2.60mm)
Current - IEC12A
Current - UL10 A
Current Rating12 A
DescriptionTERM BLOCK HDR 12POS 5..
Detailed Description12 Position Terminal Bl.
Digi-Key Part Number277-2573-ND
Family NameCOMBI Plug Family
FeaturesMating and Mounting Fla.
Flammability RatingUL 94 V-0
Header Orientation90?, Right Angle
Housing MaterialLiquid Crystal Polymer .
Ingress Protection-
Insulation Height0.339" (8.61mm)
ManufacturerPhoenix Contact
Manufacturer Part No.1792724
Manufacturer Product Nu.1792724
Manufacturer Standard L.8 Weeks
Material Flammability R.UL94 V-0
MfrPhoenix Contact
Mounting TypeThrough Hole, PCB Mount
Number of Contacts12
Number of Levels1
Number of Positions12
Number of Rows1
Operating Temperature-
Orientation90?, Right Angle
PackageBulk
Part # AliasesCC_2,5/12-GF-5,08-LR_P2.
Pitch0.200" (5.08mm), 5.08 mm
Plug Wire Entry-
Positions Per Level12
Primary TypePluggable PCB Mount
ProductHeaders
Product CategoryPluggable Terminal Bloc.
Product StatusActive
Screw Size-
SeriesCC, COMBICON CC, COMBIC.
Special FeaturesMating and Mounting Fla.
TerminationThrough Hole
Termination StyleSolder, Through Hole
Torque - Screw-
TradenameCOMBICON Control
TypeHeader, Header, Male Pi.
UPC Code4046356615730
Voltage - IEC400 V
Voltage - UL300 V
Voltage Rating250 V, 320 V
Wire Gauge or Range - A.-
Wire Gauge or Range - m.-
Wire Size12 AWG
Wire Strip Length-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
electricautomationnetwork.comCC 2,5/12-GF-5,08-LR P26THR3.84126PHOENIX_CONTACT3.84 @ 1
Onlinecomponents.com17927245.84126Phoenix Contact5.84 @ 1
Radwell17927245.975026PHOENIX CONTACT5.97 @ 50
HotendaH15405966.55126Phoenix Contact6.55 @ 1
thumbzoomDigi-Key34398597.86126Phoenix Contact7.86 @ 1
Airline HydraulicsPHOENIX 17927248.21In StockPhoenix Contact8.2 @ 1
us.rs-online.com702534318.85026Phoenix Contact8.8 @ 50
thumbzoomswatee.com17927248.95139Phoenix Contact8.95 @ 1
